Kohler

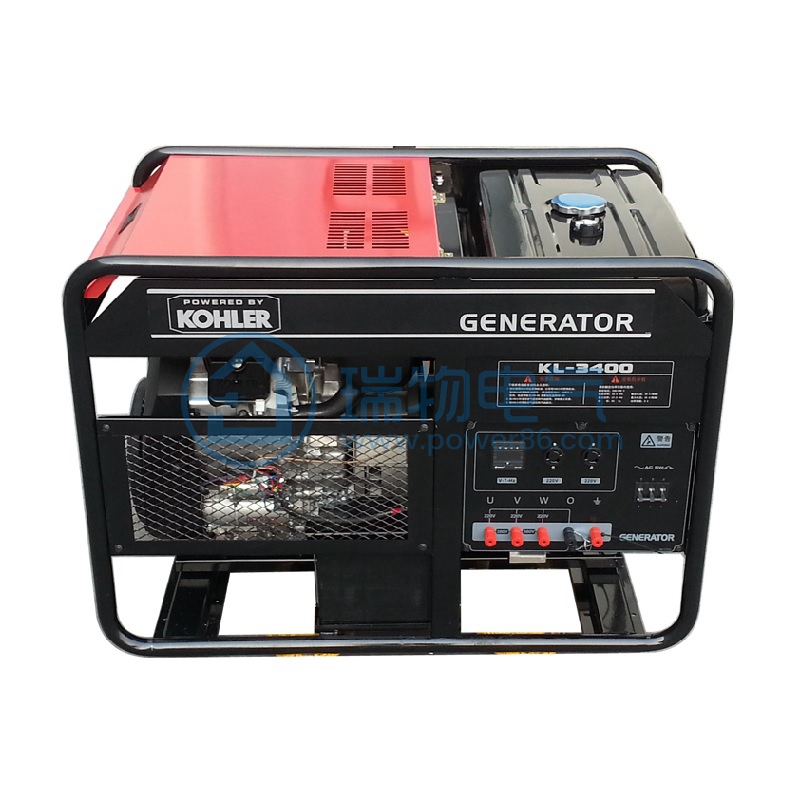

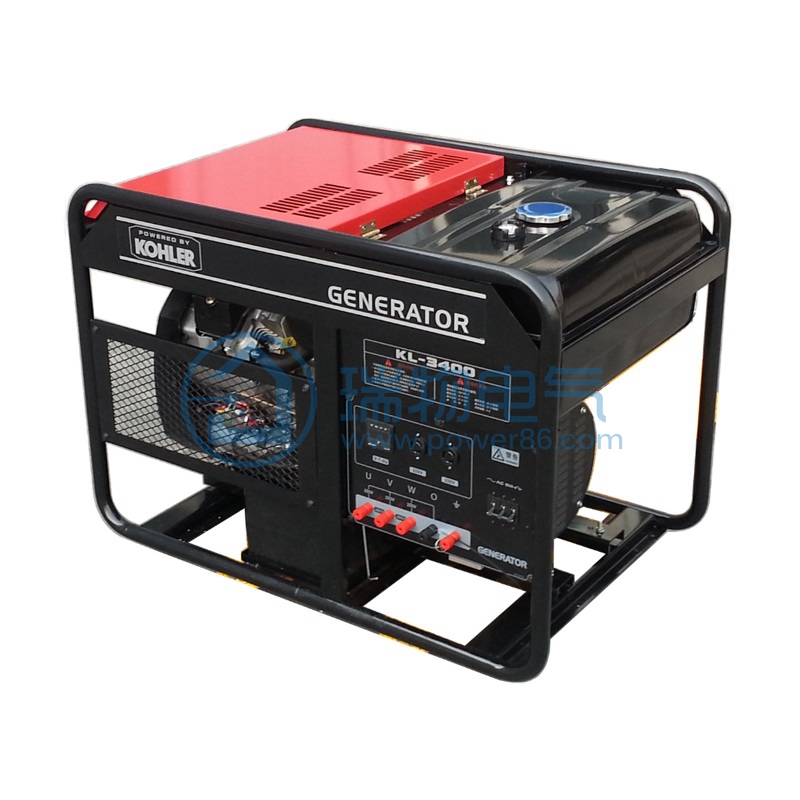

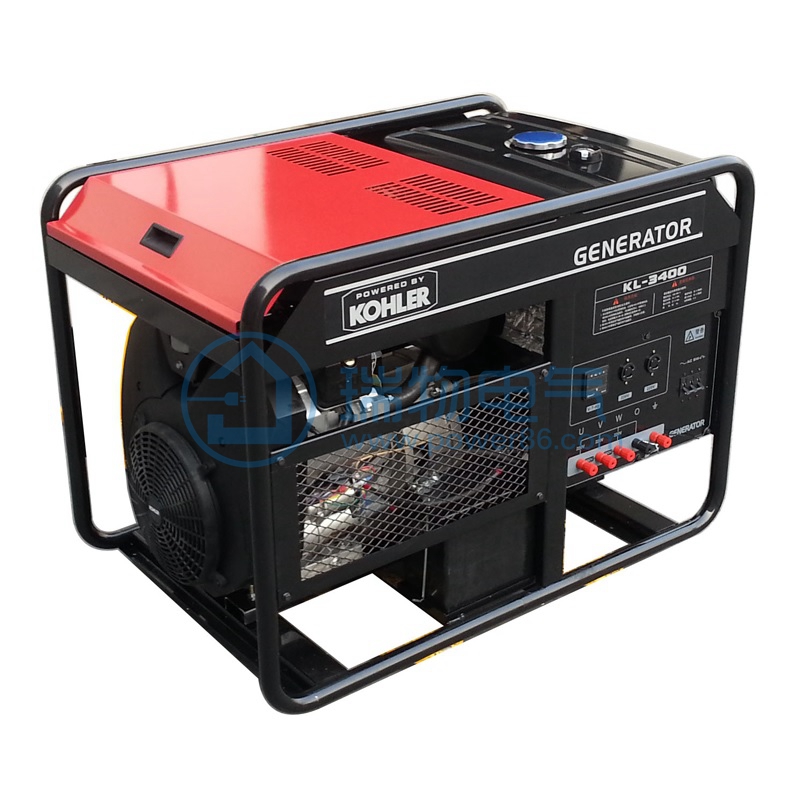

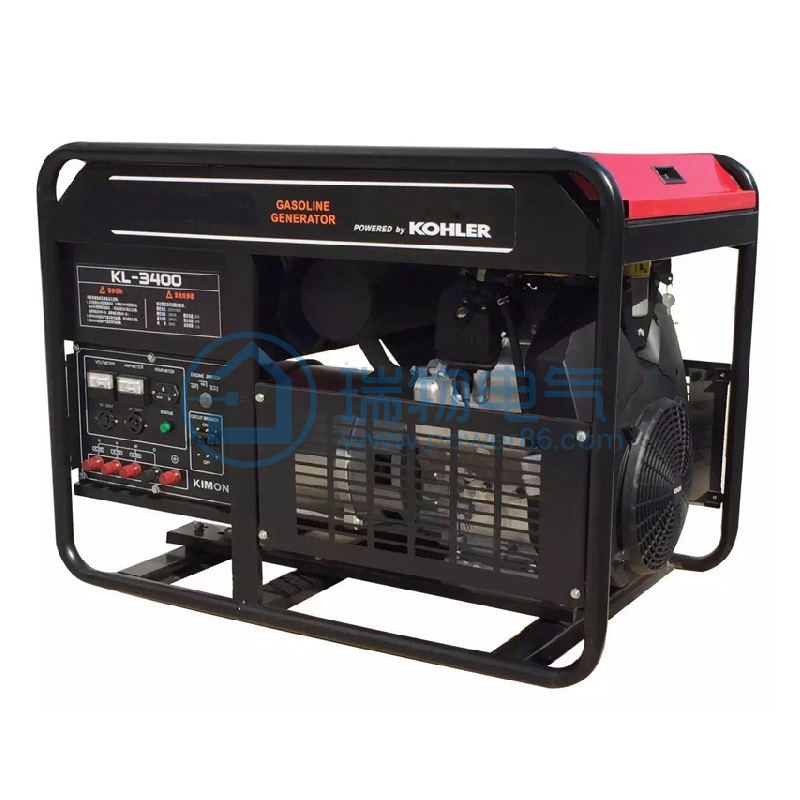

Kohler KL-3400
Price on request
- Rated power
- 25KW (kW)
- Maximum power
- 27KW (kW)
- Oil type
- Petrol
- Fuel tank capacity
- 55L (L)
- Startup method
- Recoil start
- Net weight
- 200 kg (kg)
- Dimensions (L×W×H)
- 1020x 670x 700 mm (mm)
View on mobileDetailed specifications:
| Model | KL3400 | |
| Generator | Rated voltage | Three-phase 400V |
| Frequency | 50Hz | |
| Maximum output | 27KVA | |
| Rated output | 25KVA | |
| Rated current | 30A per phase | |
| Power factor | 0.8 | |
| Waveform distortion rate | < 4% | |
| Insulation class | Stator and rotor: Class H | |
| Engine | Type | "Imported from the United States" air-cooled four-stroke OHV dual-cylinder gasoline engine |
| Model displacement | CH38,999CC | |
| Maximum power | 38PS/3,600rpm | |
| Starting method | Electric start | |
| Fuel | More than 90# gasoline | |
| Oil capacity (L) | 2.85 | |
| Accessory Configuration | permanent magnet brushless electric ball | There is/are |
| Fuel tank capacity | 55L | |
| Oil alarm | There is/are | |
| Voltage indicator | ||
| Current indicator | There is/are | |
| Frequency table | There is/are | |
| Operating schedule | There is/are | |
| FUEL INDICATING Gage | There is/are | |
| Battery capacity | 12V-45AH Maintenance-free Battery | |
| Caster Accessories | Standard Equipped | |
| Other | Dimensions (Length x Width x Height) | 1020x670x700 |
| Net weight | 200kg | |
| Fuel consumption [full load] | 7 liters/hour | |
| Continuous operation time | 8 hours | |
| Noise level 7M | 78db | |
