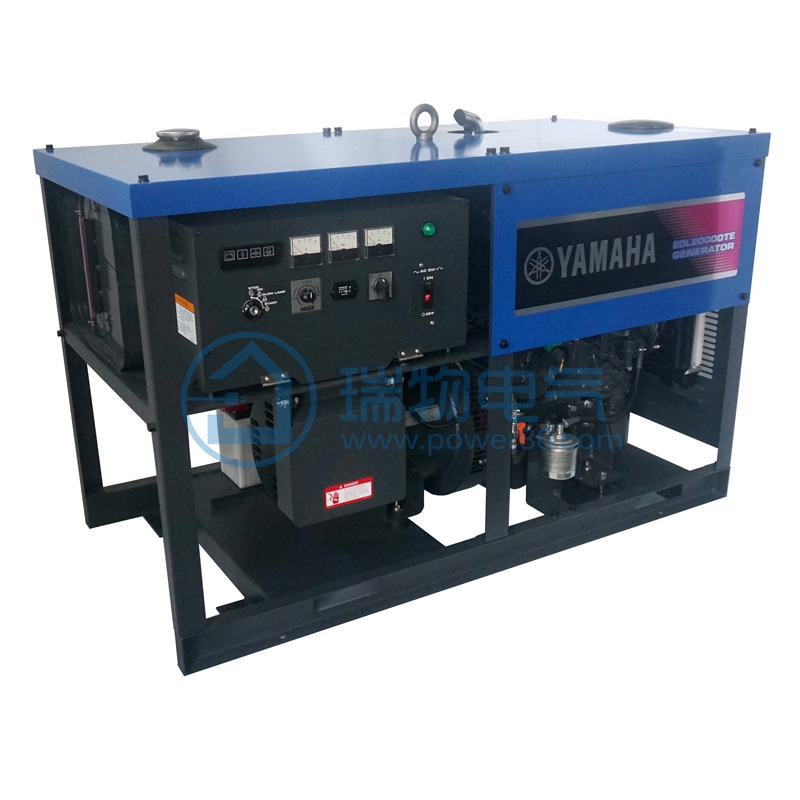

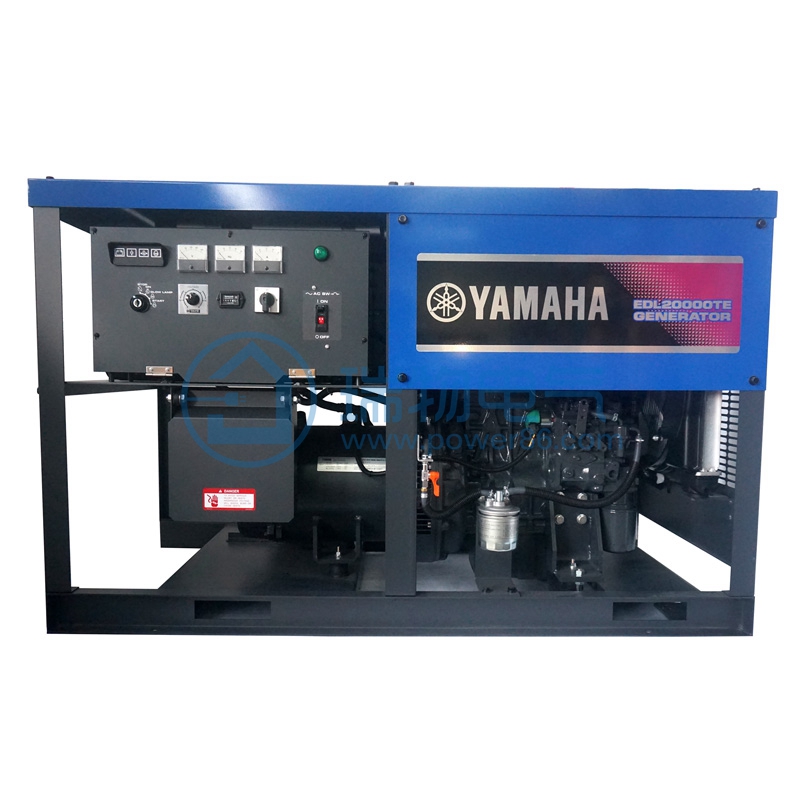

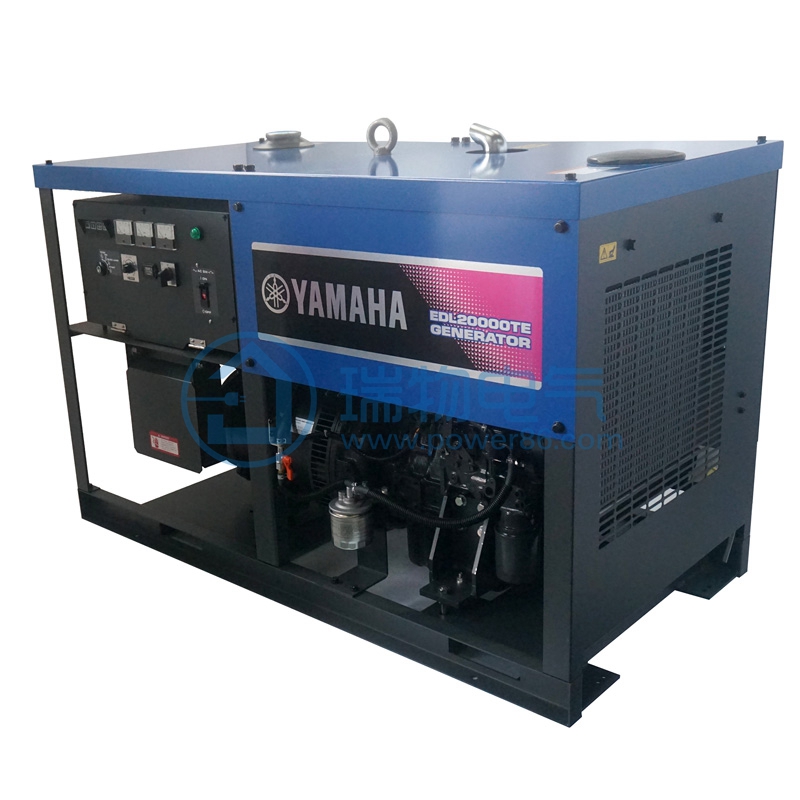

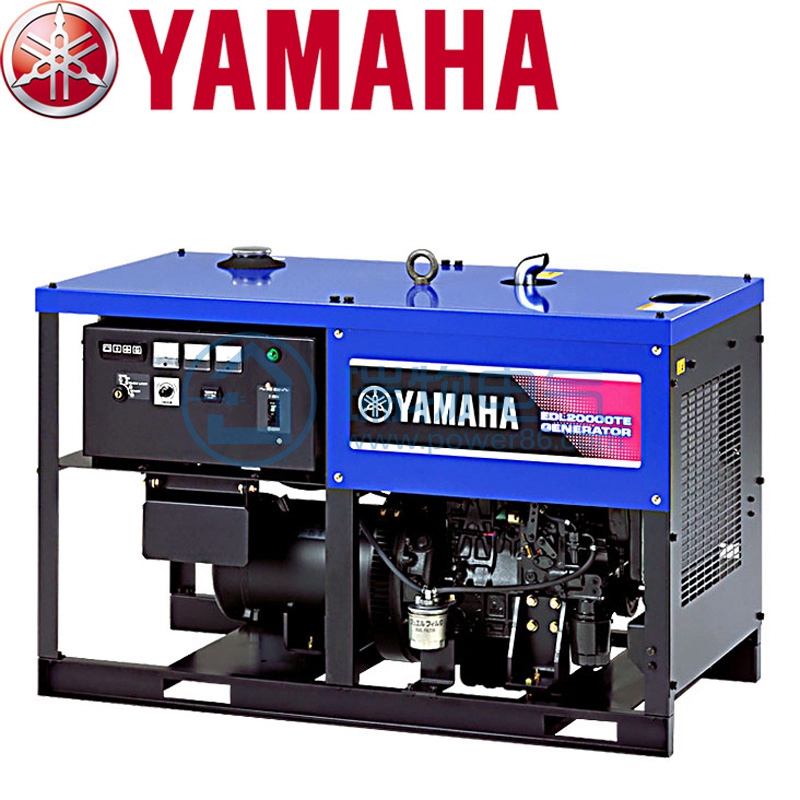

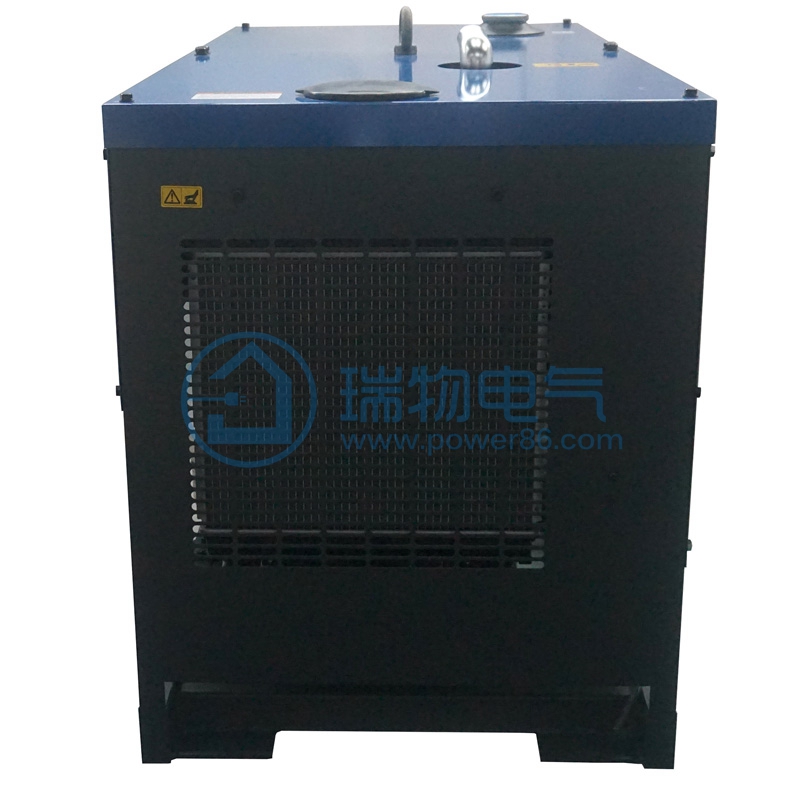

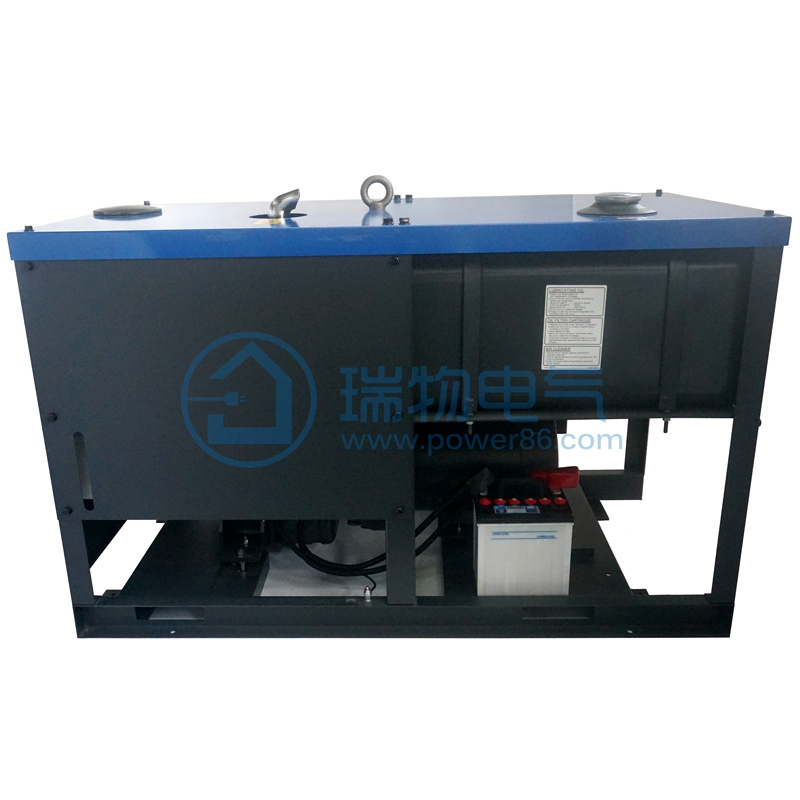

Yamaha EDL20000TE

Generator

Phase number

Three-phase/Single-phase

Rated output

15.5KVA

Maximum output

17.0KVA

Power factor

0.8

Rated voltage

380V/220V

Rated current

23.6A

Frequency

50HZ

DC output

Engine

Engine Type

four-stroke water-cooled three-cylinder diesel engine

 Displacement

1001CC

Rated power

14.0kw/3000rpm

Starting method

Electric starting

Fuel tank capacity

80Ascend

Continuous operation time

17.0hour

Lube oil capacity

5.1Ascend

Accessory device

AC overload protection

No fuse circuit breaker (NFB）

DC protection

None

Fuel Gauge

There is/are

Voltmeter

There is/are

Ammeter

There is/are

Frequency table

There is/are

Operating schedule

There is/are

Output indicator light

There is/are

Preheating indicator light

There is/are

Oil warning lamp

There is/are

Water temperature warning light

There is/are

Battery charging indicator

There is/are

Other

Dimensions (length*Wide*High)

1380X700X930mm

Net weight

355kg

Wheel Attachment

Recommended battery capacity

12V-65AH
