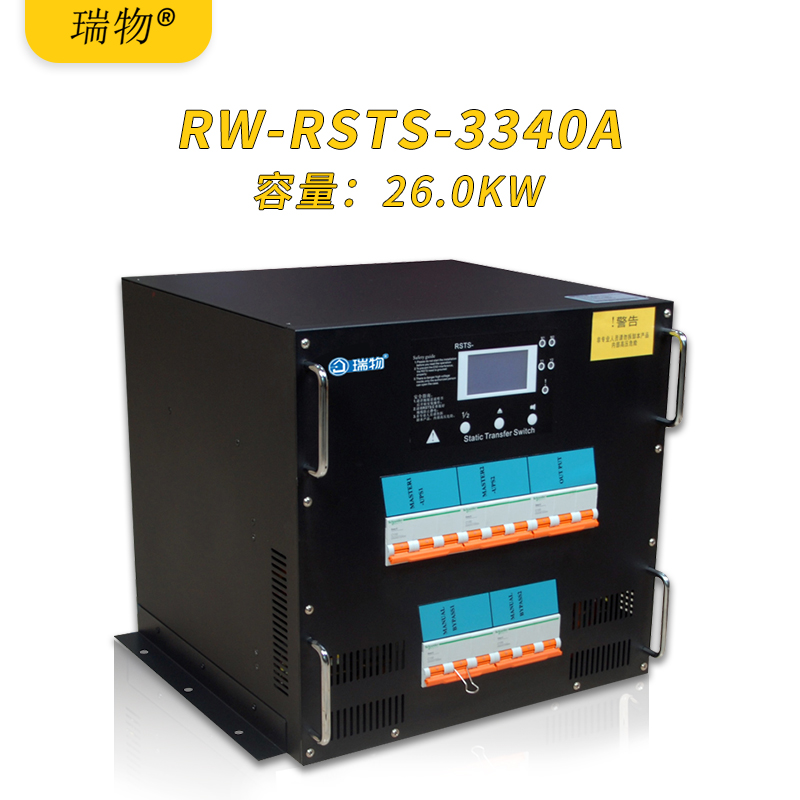

Ruiwu RW-RSTS-3340A

Detailed specifications:

RSTS-3340A specifications

Model	RSTS-3340A
Capacity	26KW
Switching time	≤5ms

RSTS-3340A input parameters

Input method	Two-way power supply in-phase and different phase input
Input voltage	380V±10% (wider voltage range optional)
Input frequency	50HZ-60Hz

RSTS-3340A output parameters

Output voltage	220V-240V±5V
Output capability	110%
Output power	≥98%

RSTS-3340A warning sound

Warning sound

Two-way input undervoltage, overvoltage, power-down alarm, output overcurrent alarm

RSTS-3340A protection function

Input	Over-current protection, under-voltage protection, over-voltage protection, power-down protection
Output	Over-current protection, anti-switching short-circuit protection

RSTS-3340A communication function

Communication

RS232 serial port, dry contact interface

RSTS-3340A Display Description

Display interface

LCD power parameter status display, LED status and fault display

RSTS-3340A use environment

Ambient temperature	-30 °C-60 °C
Environmental humidity	0-90%
Noise	≤40db

RSTS-3340A physical properties

Fuselage Dimensions	400*420*400mm (standard cabinet installation)
Package dimensions	420*440*450mm (standard cabinet installation)
Weight	28KG
Gross weight	23KG

Data not yet provided
