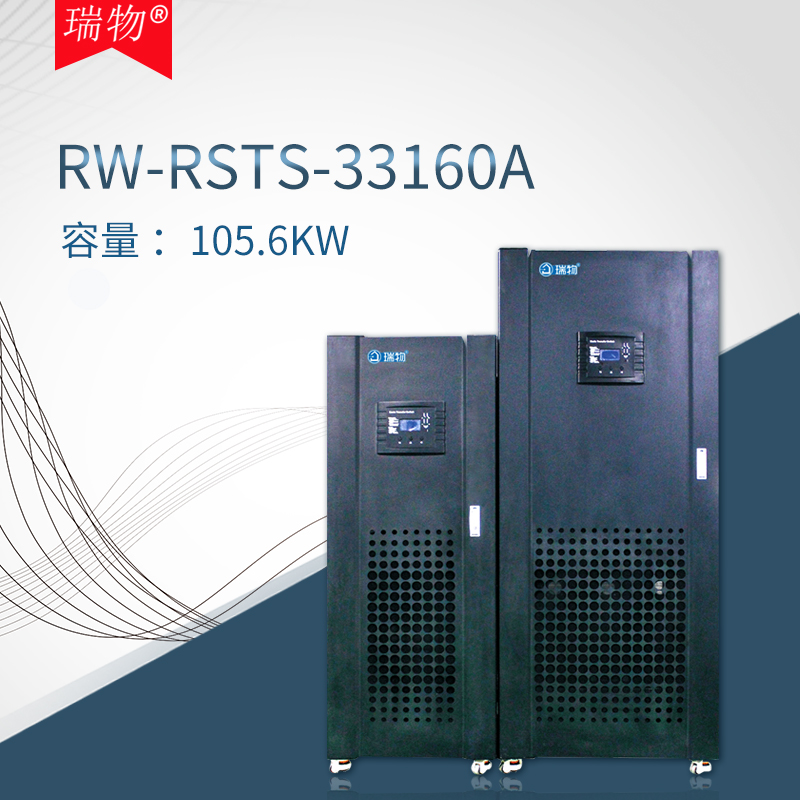

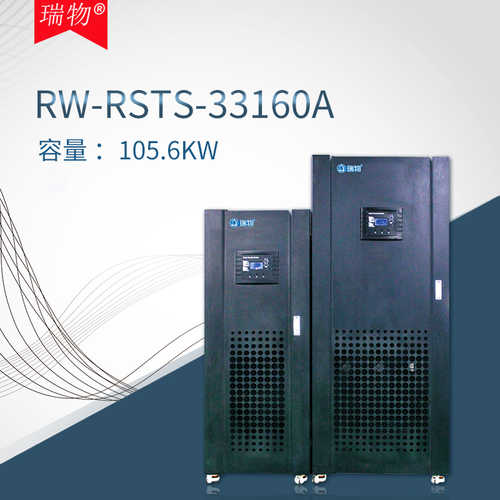

Ruiwu RW-RSTS-33160A

Detailed specifications:

RSTS-33160A specifications

Model	RSTS-33160A
Capacity	105.6KW
Switching time	≤5ms

RSTS-33160A input parameters

Input method	Two-way power supply in-phase and different phase input
Input voltage	380V±10% (wider voltage range optional)
Input frequency	50HZ-60Hz

RSTS-33160A output parameters

Output voltage	380V±10%
Output capability	110%
Output power	≥98%

RSTS-33160A warning sound

Warning sound

Two-way input undervoltage, overvoltage, power-down alarm, output overcurrent alarm

RSTS-33160A protection function

Input	Over-current protection, under-voltage protection, over-voltage protection, power-down protection
Output	Over-current protection, anti-switching short-circuit protection

RSTS-33160A communication function

Communication

RS232 serial port, dry contact interface

RSTS-33160A Display Description

Display interface

LCD power parameter status display, LED status and fault display

RSTS-33160A use environment

Ambient temperature	-30 °C-60 °C
Environmental humidity	0-90%
Noise	≤40db

RSTS-33160A physical properties

Fuselage Dimensions	600*800*1800mm
Package dimensions	1040*640*1840mm
Net weight	190KG
Gross weight	230KG (reference value)
