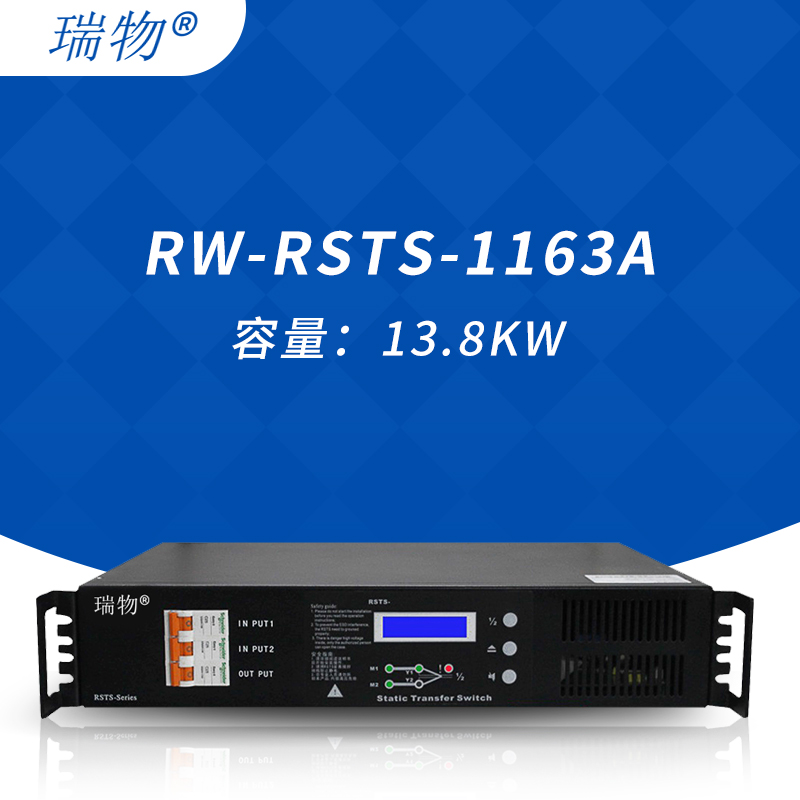

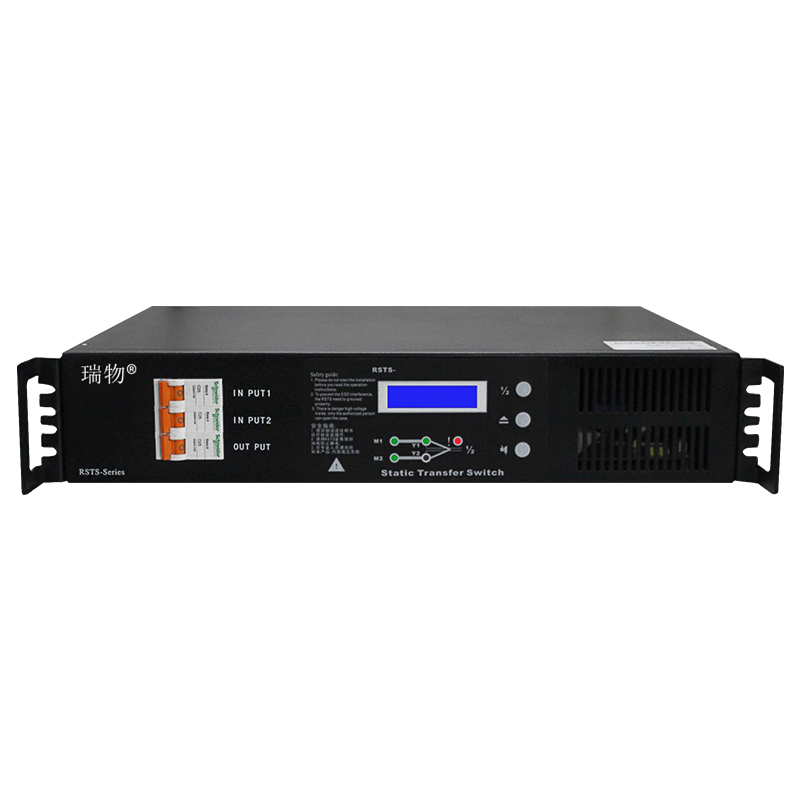

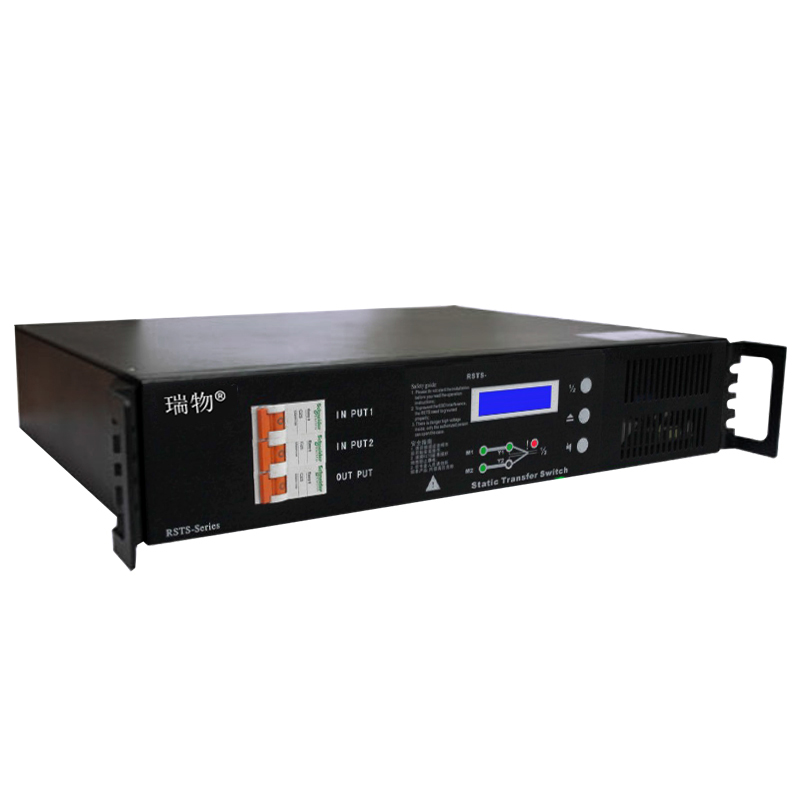

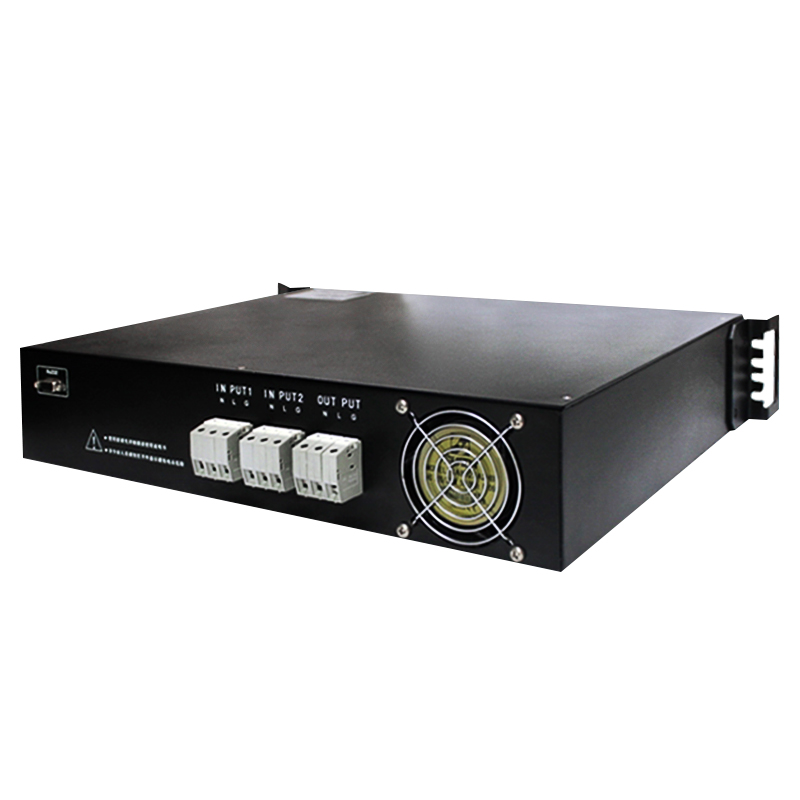

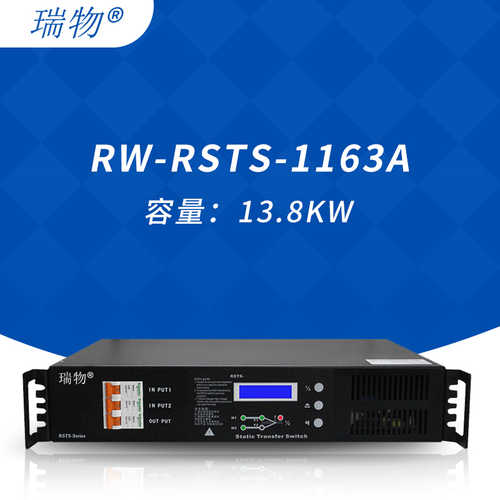

Ruiwu RW-RSTS-1163A

Detailed specifications:

RSTS-1163A specifications

Model	RSTS-1163A
Capacity	13.8KW

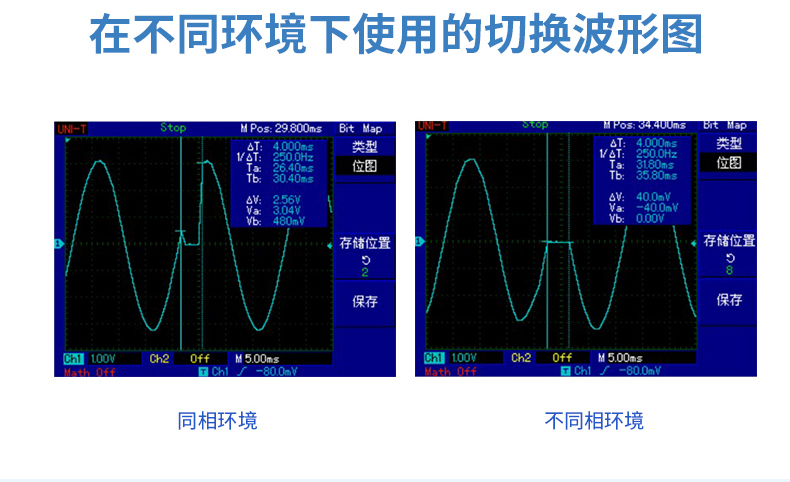

Switching time	≤5ms

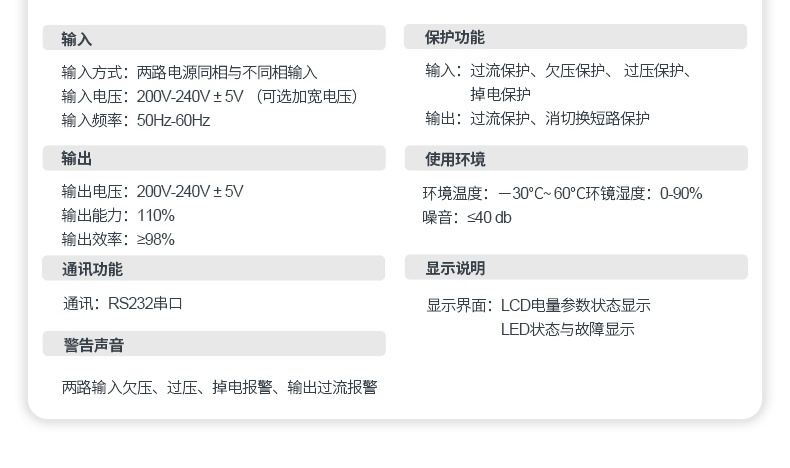

RSTS-1163A input parameters

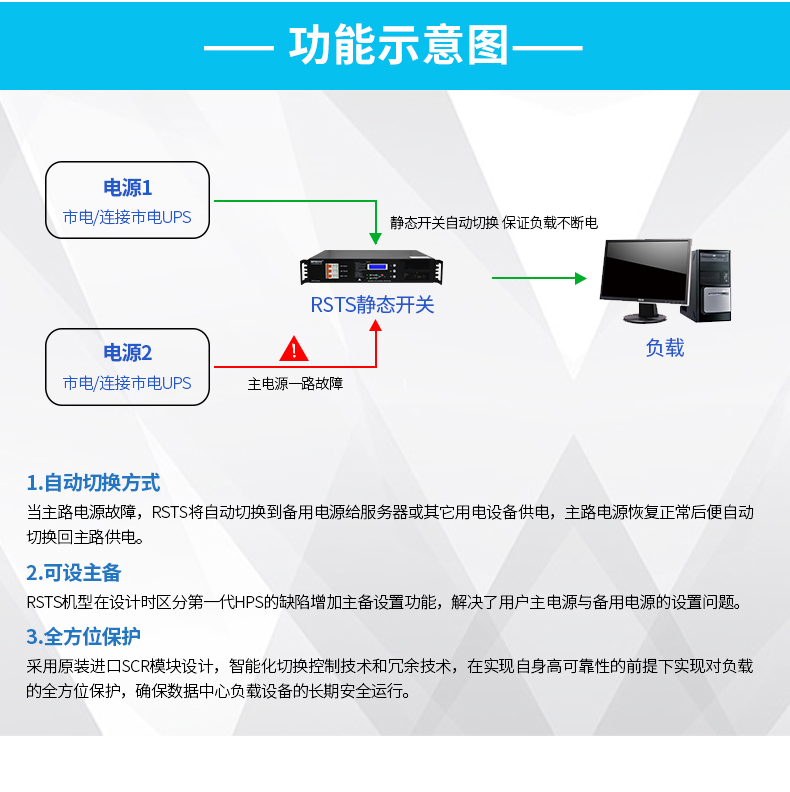

Input method	Two-way power supply in-phase and different phase input
Input voltage	220V–240V ±5V (wider voltage range available)
Input frequency	50HZ-60Hz

RSTS-1163A output parameters

Output voltage	220V-240V±5V
Output capability	110%
Output power	≥98%

RSTS-1163A warning sound

Warning sound

Two-way input undervoltage, overvoltage, power-down alarm, output overcurrent alarm

RSTS-1163A protection function

Input	Over-current protection, under-voltage protection, over-voltage protection, power-down protection
Output	Over-current protection, anti-switching short-circuit protection

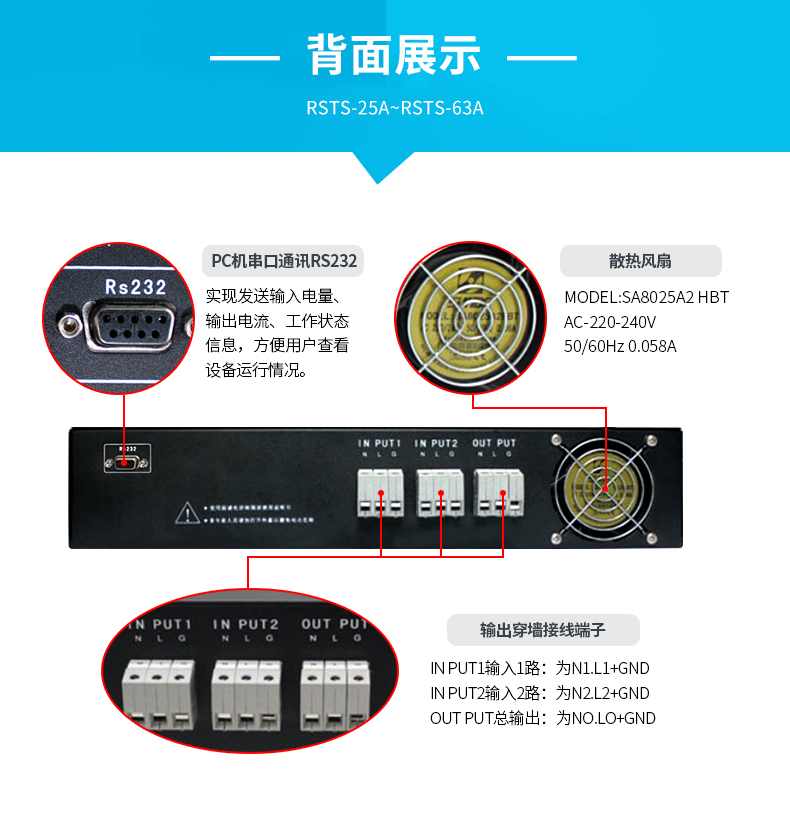

RSTS-1163A communication function

Communication

RS232 serial port

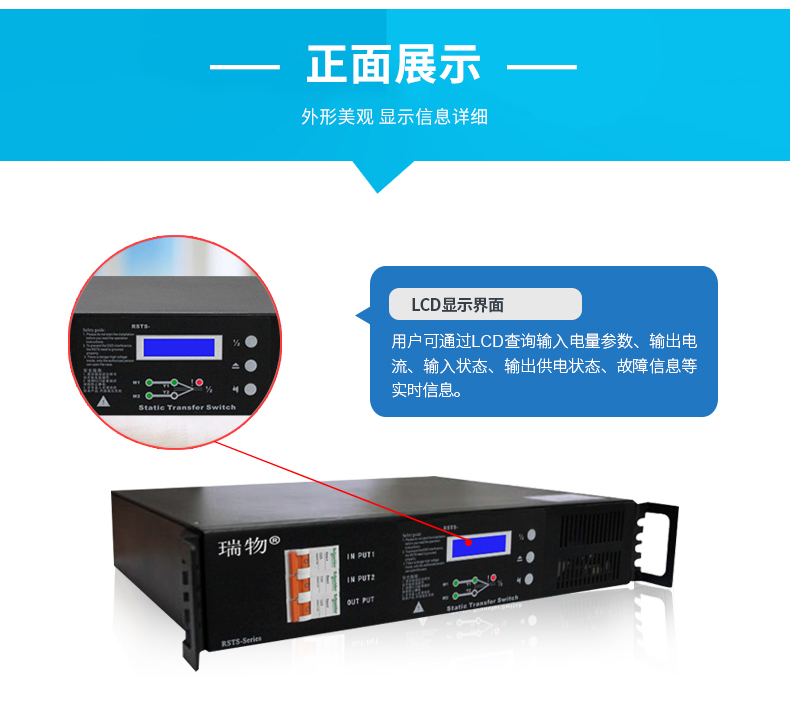

RSTS-1163A Display Description

Display interface

LCD power parameter status display, LED status and fault display

RSTS-1163A use environment

Ambient temperature	-30 °C-60 °C
Environmental humidity	0-90%
Noise	≤40db

RSTS-1163A physical properties

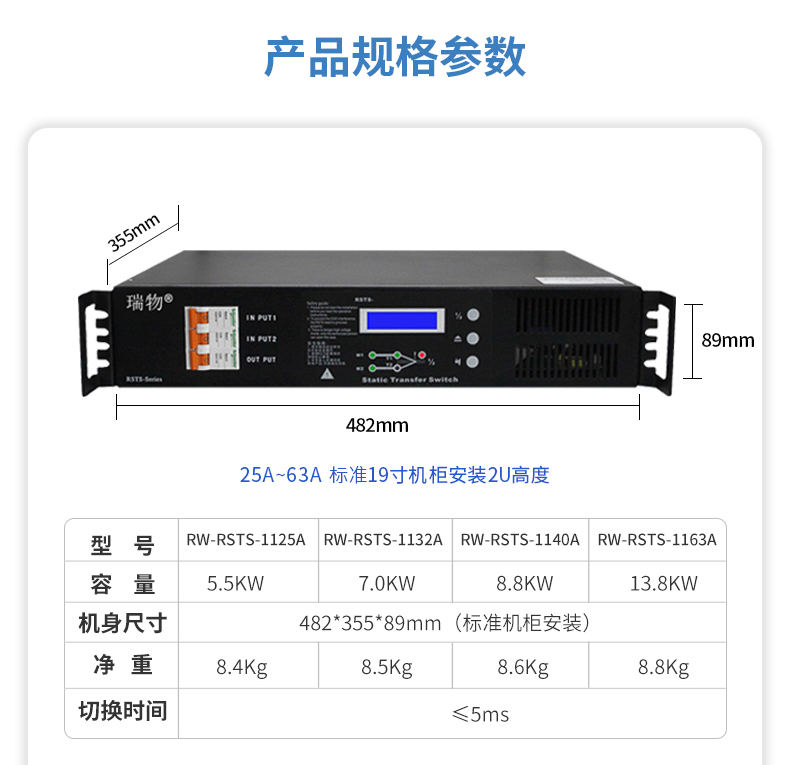

Fuselage Dimensions	482*355*89mm (standard cabinet installation)
Weight	8.8KG
