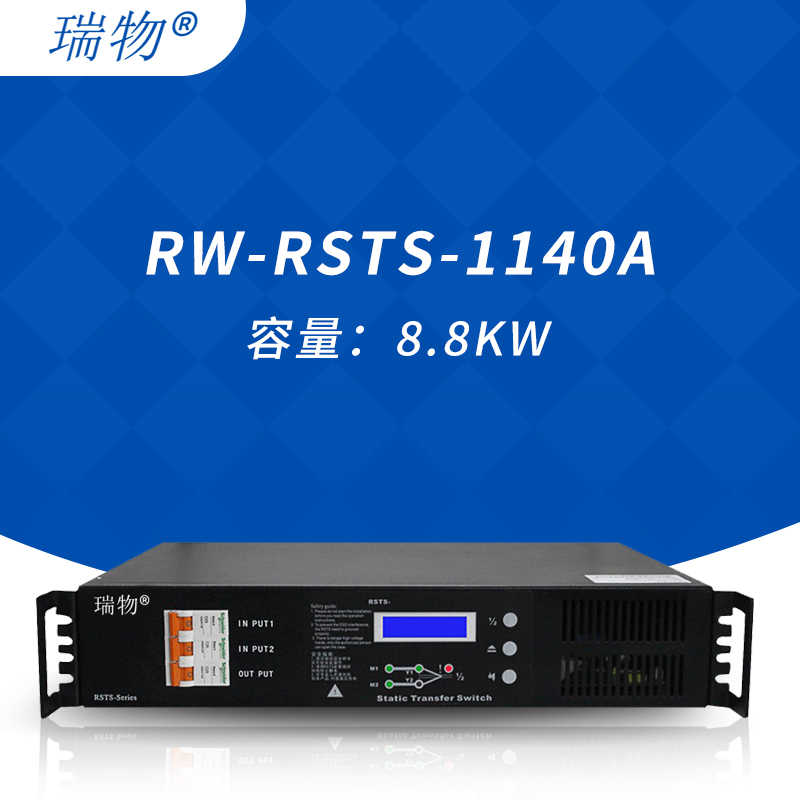

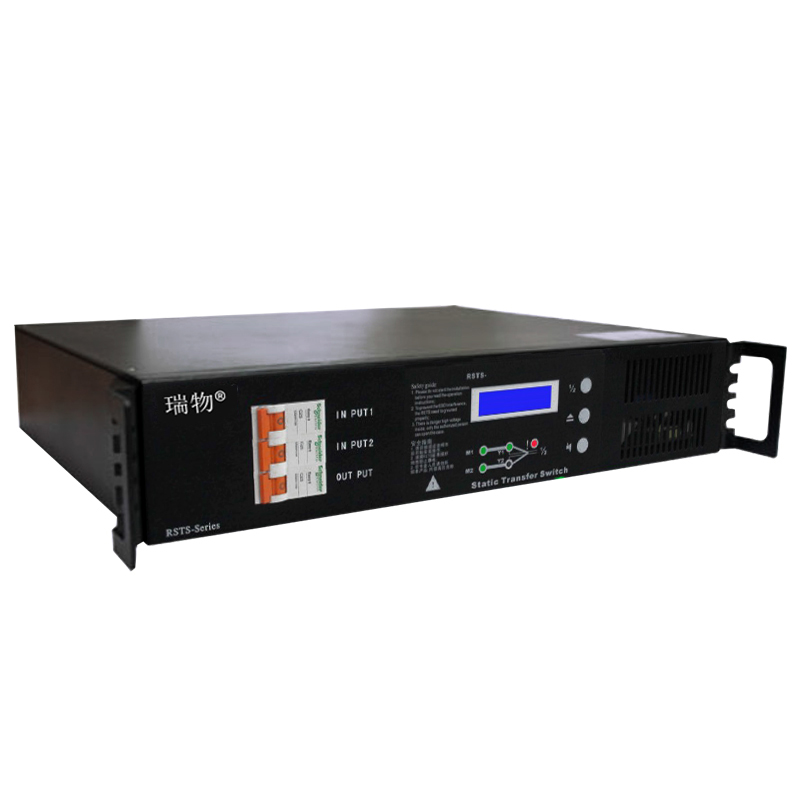

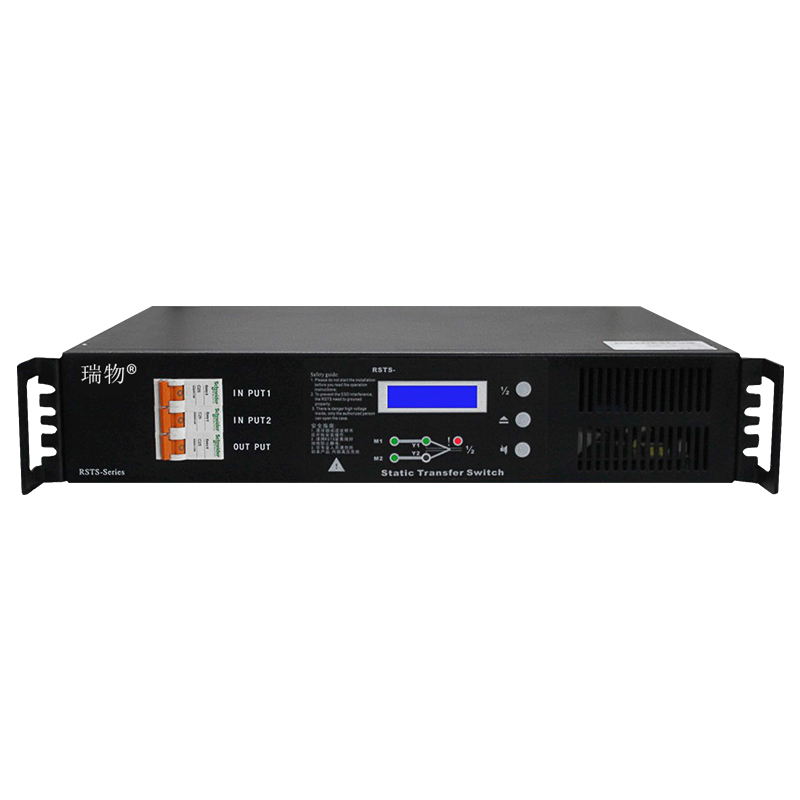

Ruiwu RW-RSTS-1140A

Detailed specifications:

RSTS-1140A specifications

Model	RSTS-1140A
Capacity	8.8KW
Switching time	≤5ms

RSTS-1140A input parameters

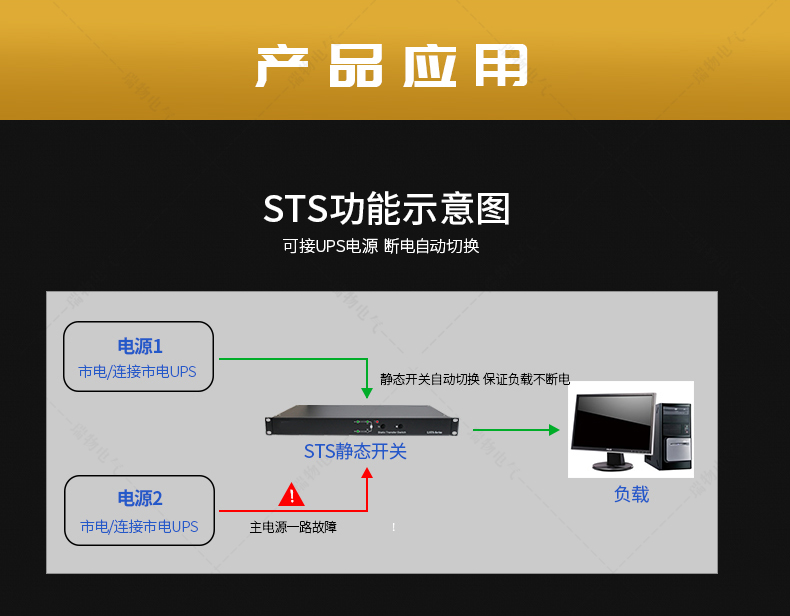

Input method	Two-way power supply in-phase and different phase input
Input voltage	220V–240V ±5V (wider voltage range available)
Input frequency	50HZ-60Hz

RSTS-1140A output parameters

Output voltage	220V-240V±5V
Output capability	110%
Output power	≥98%

RSTS-1140A warning sound

Warning sound

Two-way input undervoltage, overvoltage, power-down alarm, output overcurrent alarm

RSTS-1140A protection function

Input	Over-current protection, under-voltage protection, over-voltage protection, power-down protection
Output	Over-current protection, anti-switching short-circuit protection

RSTS-1140A communication function

Communication

RS232 serial port

RSTS-1140A Display Description

Display interface

LCD power parameter status display, LED status and fault display

RSTS-1140A use environment

Ambient temperature	-30 °C-60 °C
Environmental humidity	0-90%
Noise	≤40db

RSTS-1140A physical properties

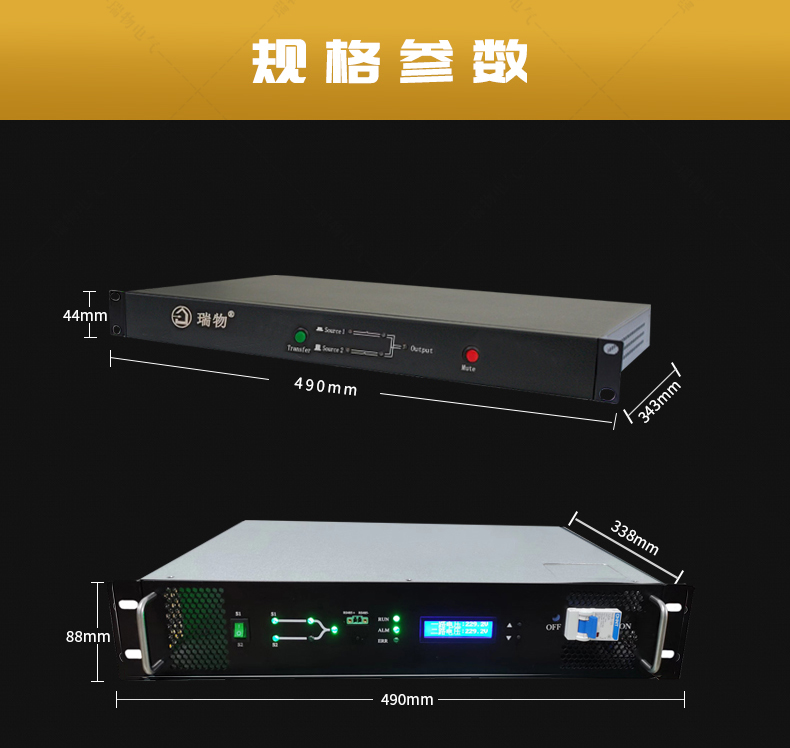

Fuselage Dimensions	482*355*89mm (standard cabinet installation)
Weight	8.6KG
