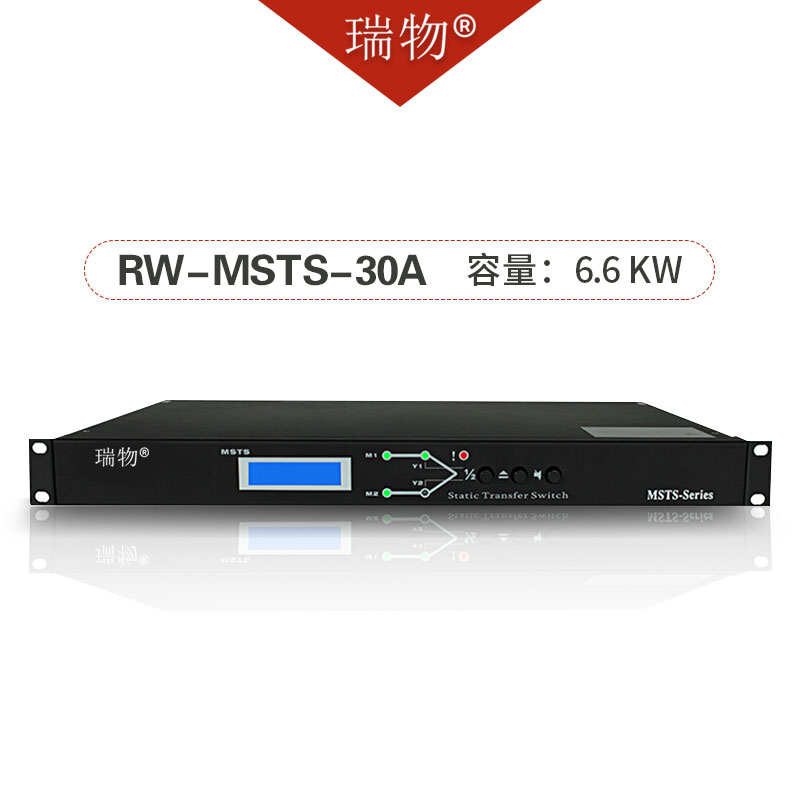

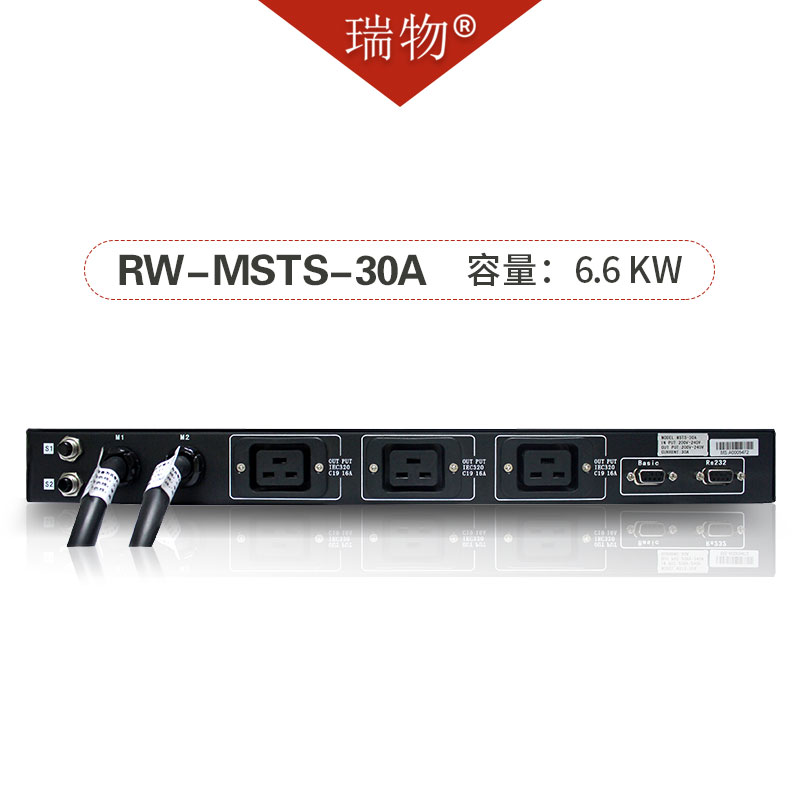

Ruiwu RW-MSTS-30A

Detailed specifications:

MSTS-30A specifications

Model	MSTS-30A
Capacity	6.6KW
Switching time	≤6ms

MSTS-30A input parameters

Input method	Two-way power supply in-phase and different phase input
Input voltage	220V–240V ±5V (wider voltage range available)
Input frequency	50HZ-60Hz

MSTS-30A output parameters

Output voltage	220V-240V±5V
Output capability	110%
Output power	≥98%

MSTS-30A warning sound

Warning sound

Two-way input undervoltage, overvoltage, power-down alarm, output overcurrent alarm

MSTS-30A protection function

Input	Over-current protection, lightning protection, under-voltage protection, over-voltage protection, power-down protection
Output	Over-current protection, anti-switching short-circuit protection

MSTS-30A communication function

Communication

RS232 serial port, dry contact signal

MSTS-30A Display Description

Display interface

LCD power parameter status display, LED status and fault display

MSTS-30A use environment

Ambient temperature	-30 °C-60 °C
Environmental humidity	0-90%
Noise	≤40db

MSTS-30A physical properties

Fuselage Dimensions	482*250*44mm (standard cabinet installation)
Weight	7KG
