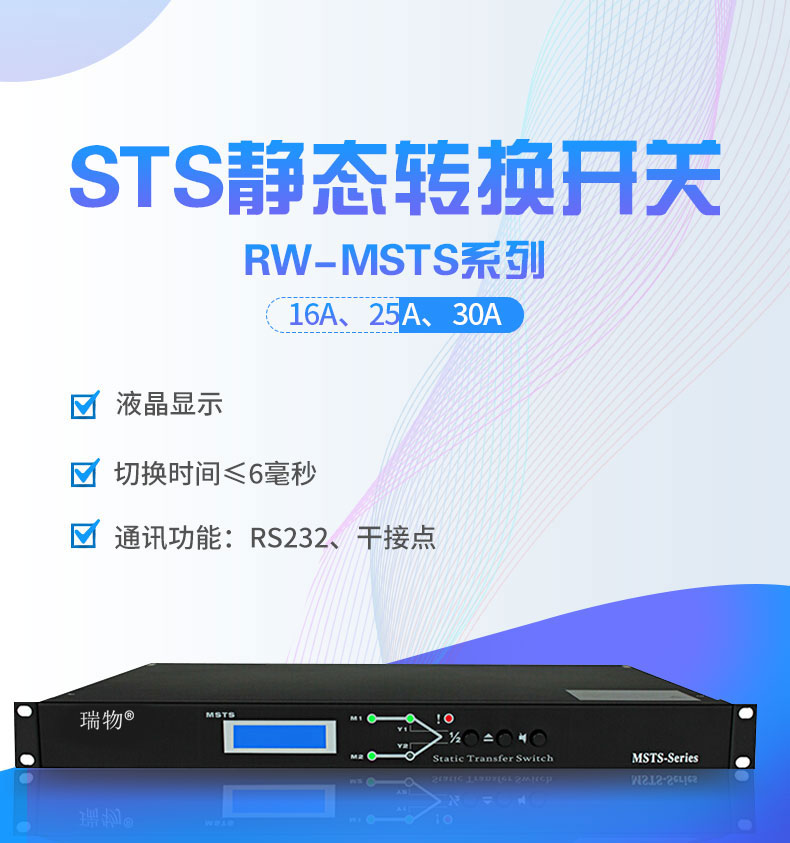

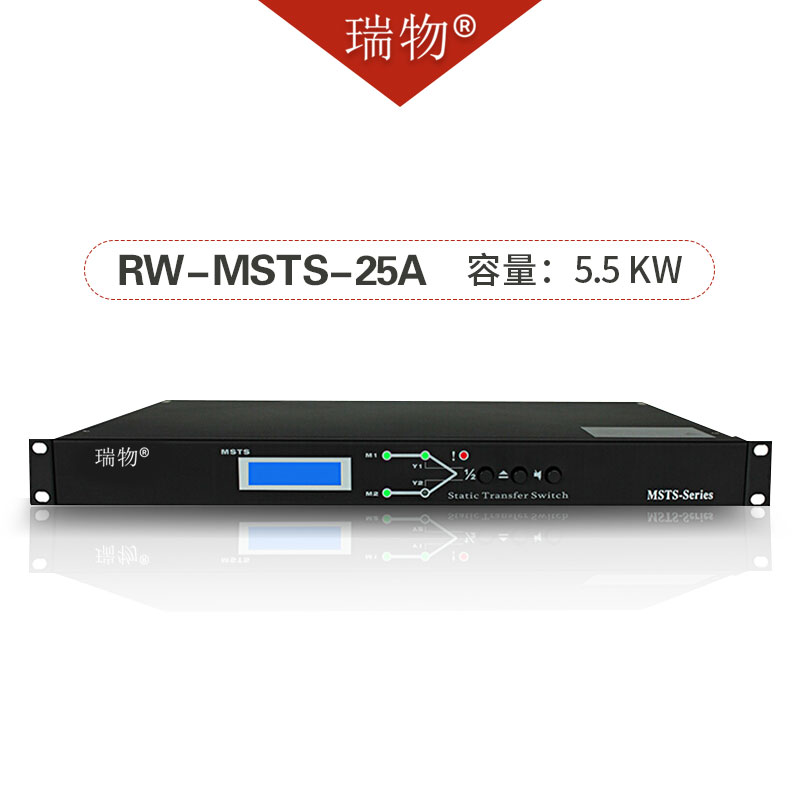

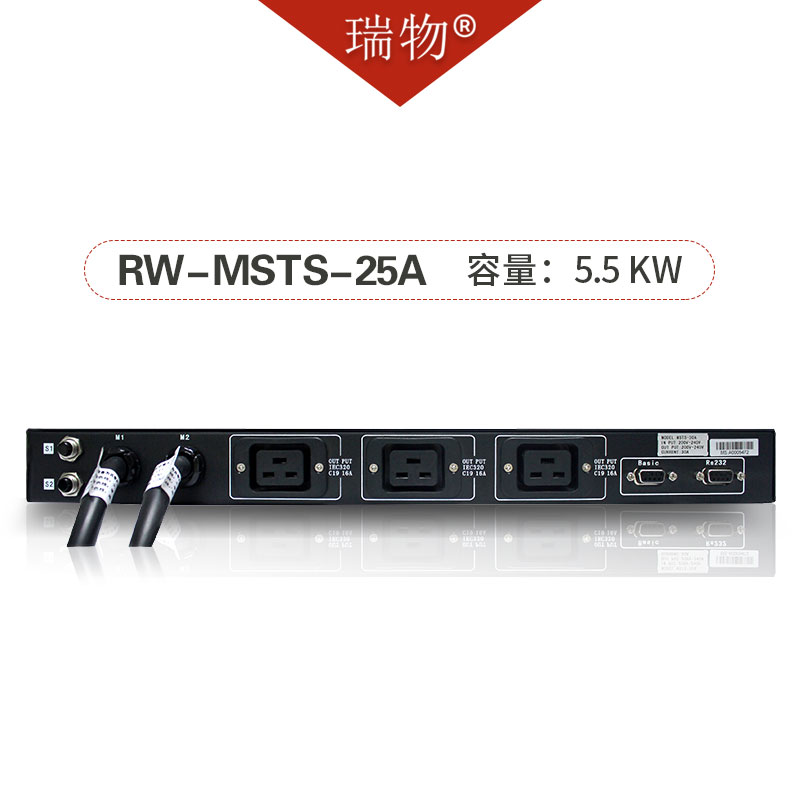

Ruiwu RW-MSTS-25A

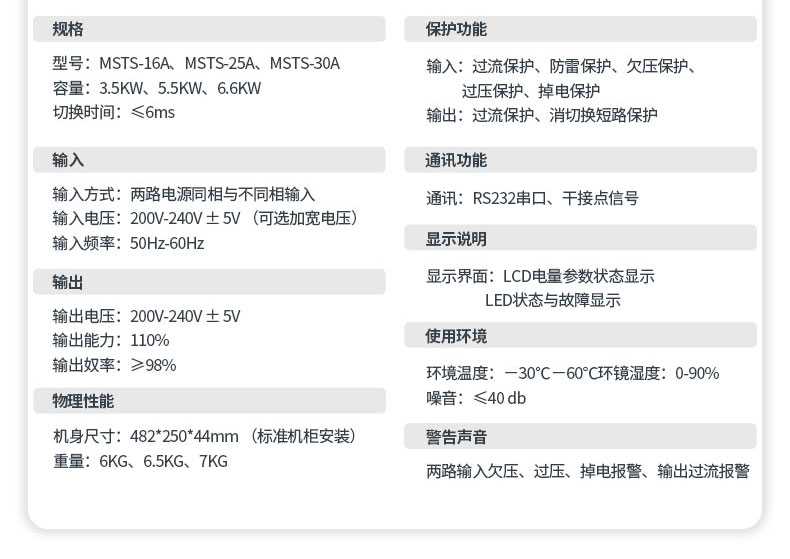

Detailed specifications:

MSTS-25A specifications

Model	MSTS-25A
Capacity	5.5KW
Switching time	≤6ms

MSTS-25A input parameters

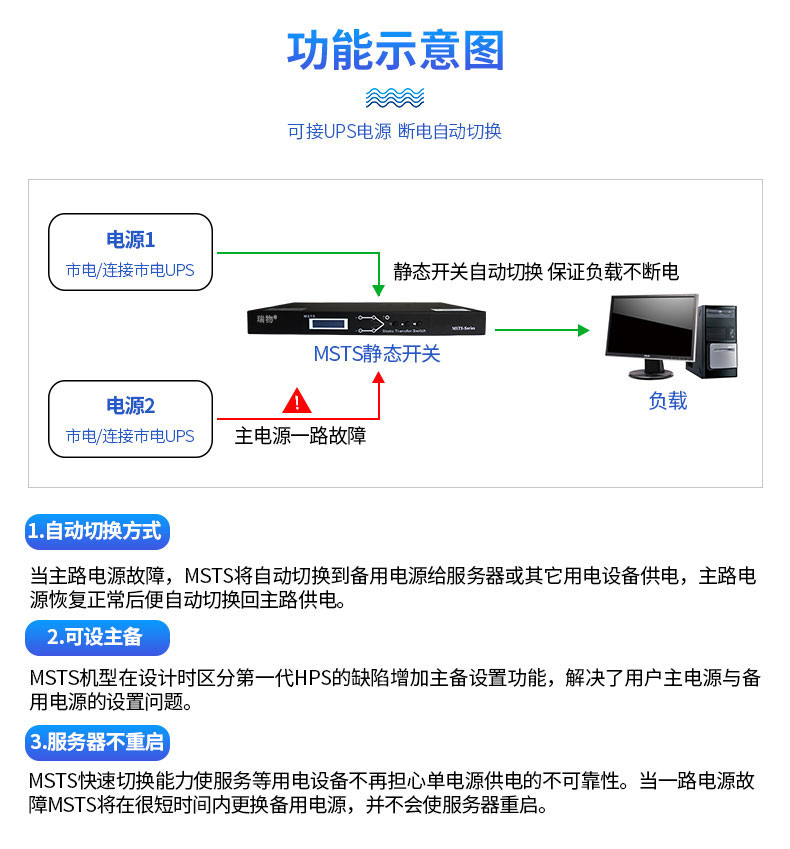

Input method	Two-way power supply in-phase and different phase input
Input voltage	220V–240V ±5V (wider voltage range available)
Input frequency	50HZ-60Hz

MSTS-25A output parameters

Output voltage	220V-240V±5V
Output capability	110%
Output power	≥98%

MSTS-25A warning sound

Warning sound

Two-way input undervoltage, overvoltage, power-down alarm, output overcurrent alarm

MSTS-25A protection function

Input	Over-current protection, lightning protection, under-voltage protection, over-voltage protection, power-down protection
Output	Over-current protection, anti-switching short-circuit protection

MSTS-25A communication function

Communication

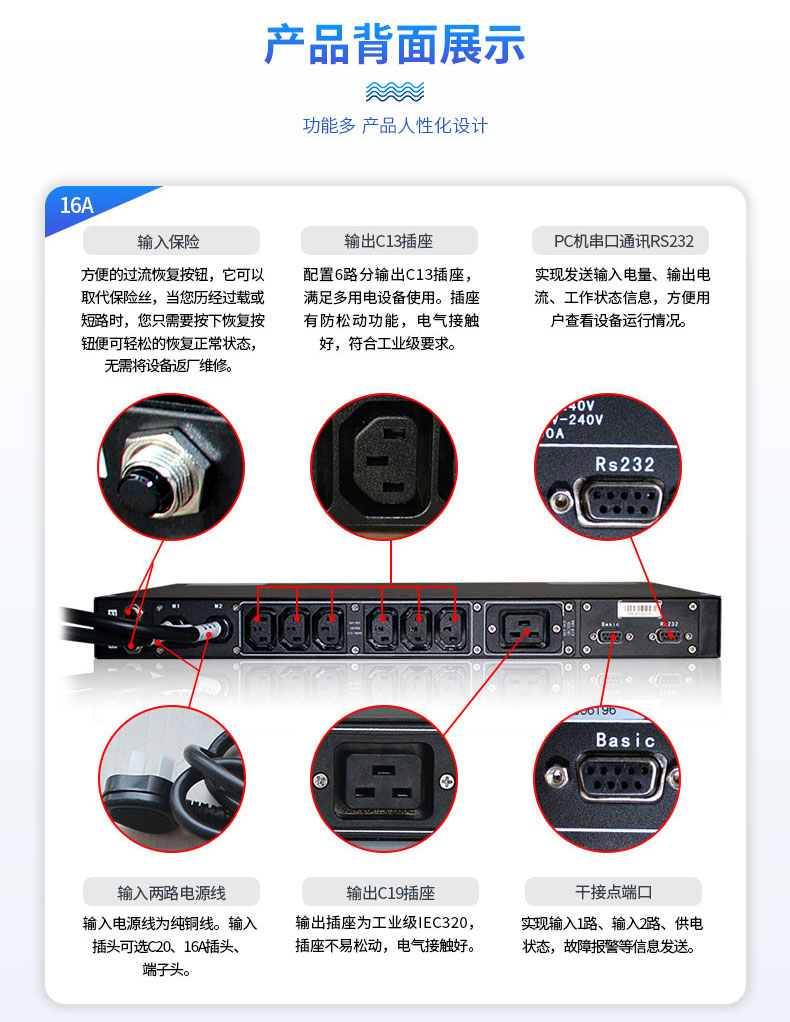

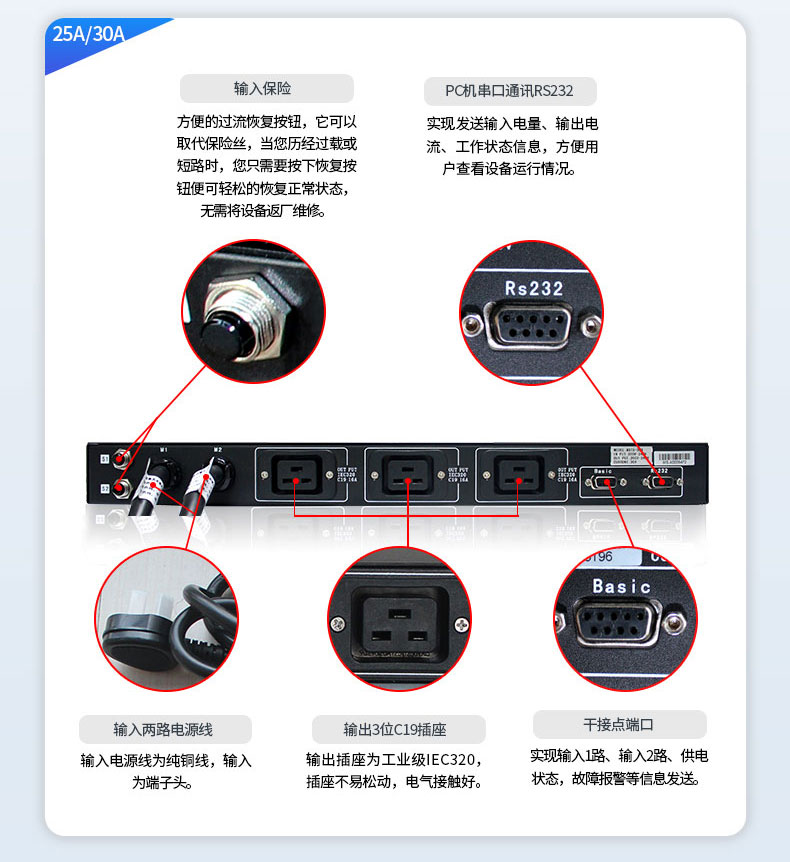

RS232 serial port, dry contact signal

MSTS-25A Display Description

Display interface

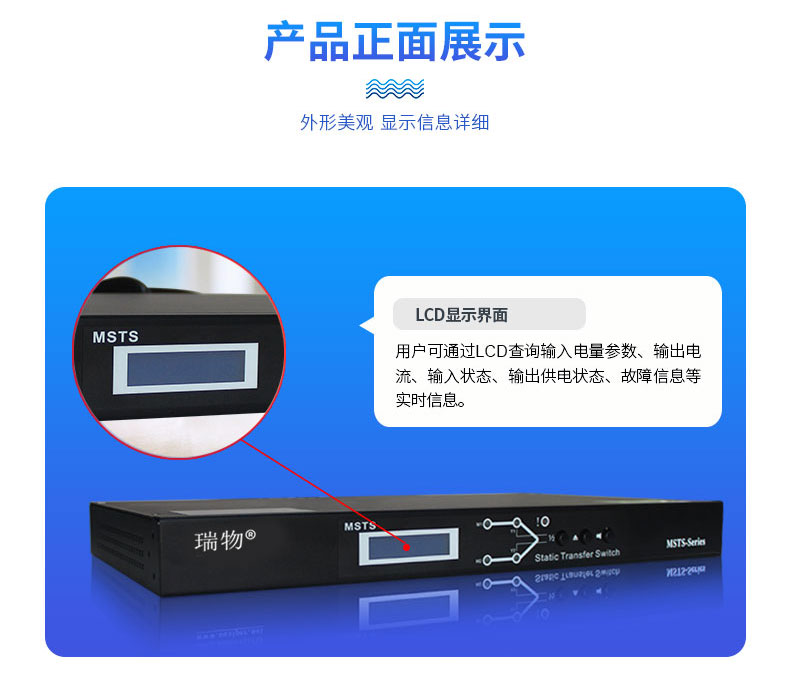

LCD power parameter status display, LED status and fault display

MSTS-25A use environment

Ambient temperature	-30 °C-60 °C
Environmental humidity	0-90%
Noise	≤40db

MSTS-25A physical properties

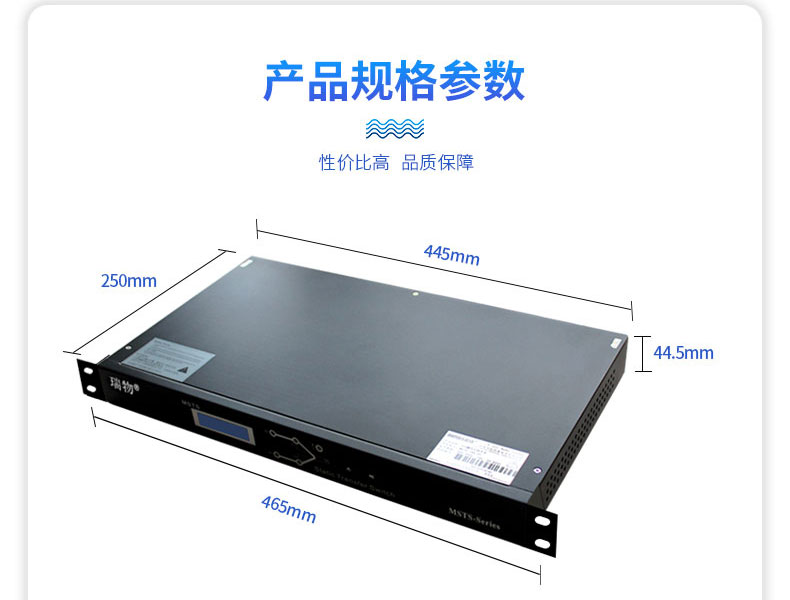

Fuselage Dimensions	482*250*44mm (standard cabinet installation)
Weight	6.5KG
