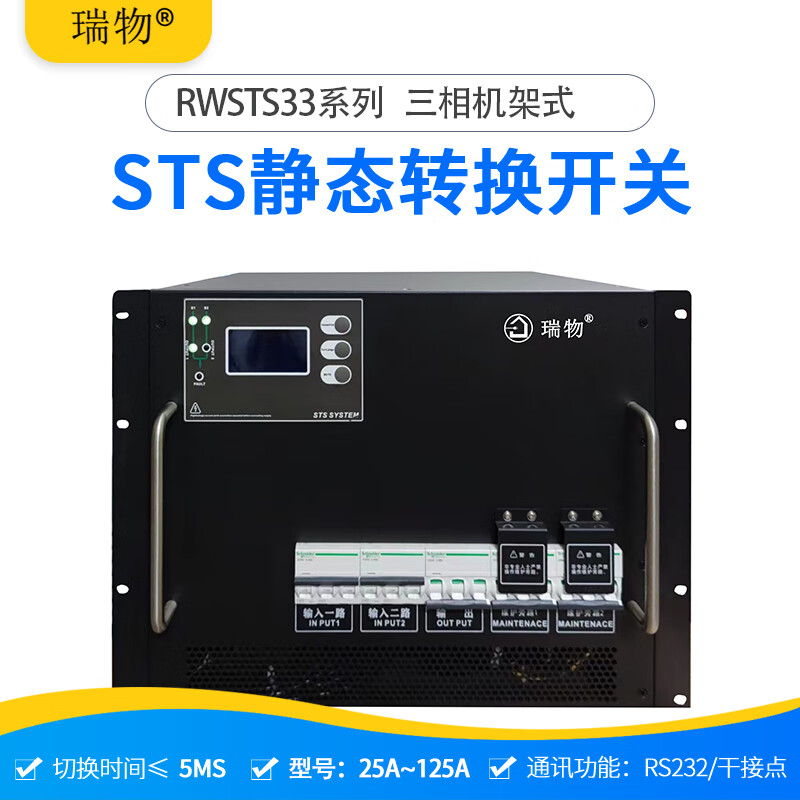

Ruiwu RW-RSTS-33100A

Detailed specifications:

RSTS-33100A specifications

Model	RSTS-33100A
Capacity	66KW
Switching time	≤5ms

RSTS-33100A input parameters

Input method	Two-way power supply in-phase and different phase input
Input voltage	380V±10% (wider voltage range optional)
Input frequency	50HZ-60Hz

RSTS-33100A output parameters

Output voltage	380V±10%
Output capability	110%
Output power	≥98%

RSTS-33100A warning sound

Warning sound

Two-way input undervoltage, overvoltage, power-down alarm, output overcurrent alarm

RSTS-33100A protection function

Input	Over-current protection, under-voltage protection, over-voltage protection, power-down protection
Output	Over-current protection, anti-switching short-circuit protection

RSTS-33100A communication function

Communication

RS232 serial port, dry contact interface

RSTS-33100A Display Description

Display interface

LCD power parameter status display, LED status and fault display

RSTS-33100A use environment

Ambient temperature	-30 °C-60 °C
Environmental humidity	0-90%
Noise	≤40db

RSTS-33100A physical properties

Fuselage Dimensions	420*430*350mm (standard cabinet installation)
Package dimensions	420*640*950mm (standard cabinet installation)
Weight	42KG
Gross weight	56KG
