Ruiwu RW-HSTS-10A

Detailed specifications:

RW-HSTS-10A specifications

Model	RW-HSTS-10A
Capacity	2.2KW
Switching time	≤6ms

RW-HSTS-10A input parameters

Input method	Two-way power supply in-phase and different phase input
Input voltage	220V±10% (wider voltage range optional)
Input frequency	50HZ-60Hz

RW-HSTS-10A output parameters

Output voltage	220V±10%
Output capability	110%
Output power	≥98%

RW-HSTS-10A warning sound

Warning sound

Two-way input undervoltage, overvoltage, power-down alarm, output overcurrent alarm

RW-HSTS-10A protection function

Input	Over-current protection, under-voltage protection, over-voltage protection, power-down protection
Output	Over-current protection, anti-switching short-circuit protection

RW-HSTS-10A communication function

Communication

RS485 interface

RW-HSTS-10A Display Description

Display interface

LCD power parameter status display, LED status and fault display

RW-HSTS-10A use environment

Ambient temperature	0 °C-40 °C
Environmental humidity	0-90%
Noise	≤40db

RSTS-3332A physical properties

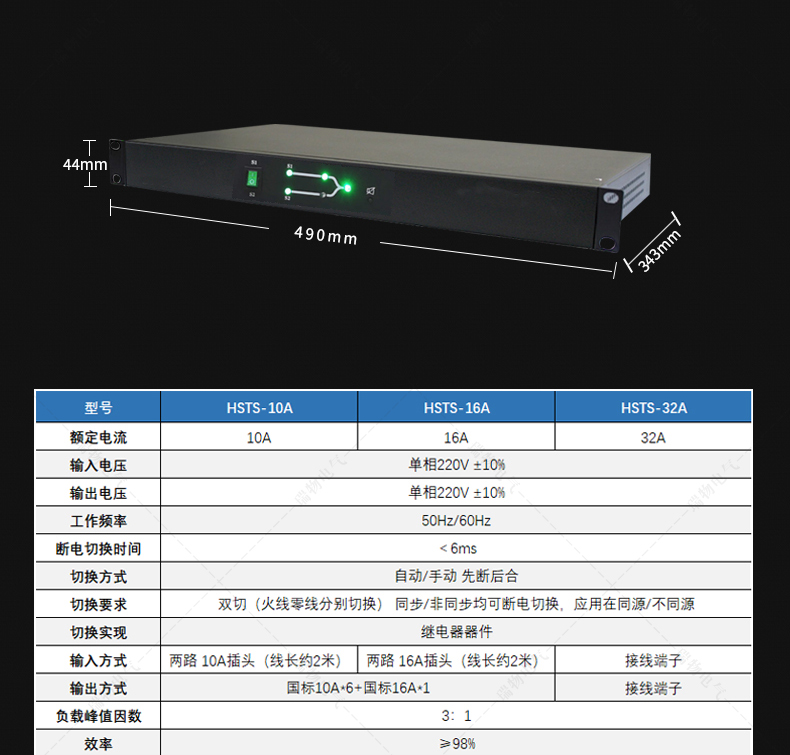

Fuselage Dimensions	343*490*44mm (standard cabinet installation)
Package dimensions	400*600*60mm (standard cabinet installation)
Weight	4.5KG
Gross weight	5KG
