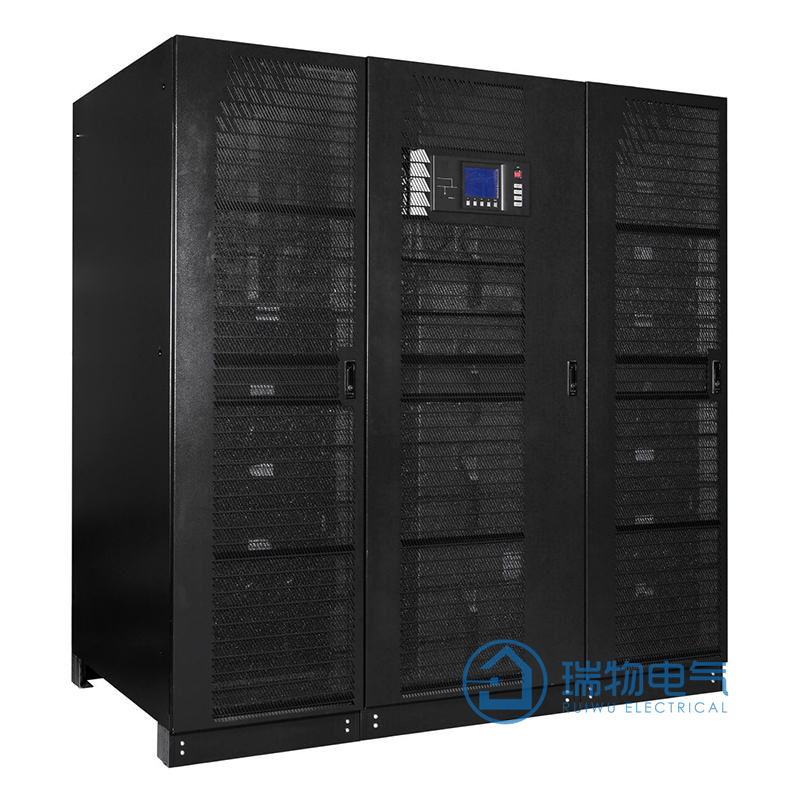

Emerson Adapt-PM-50KVA-250K frame

Name: Emerson Adapt-PM-50KVA-250K frame
Brand: Emerson
SKU: 5355
Price: 205286 CNY
Availability: InStock

Three-in-three-out 50K online high-frequency machine modular long machine Most areas can issue VAT invoices by postage

¥205,286.00List price ¥356400.00

Ratings

UPS runtime configurations

View on mobile

Series Introduction

Detailed specifications:

Capacity	50KVA
Model	Adapt PM 50K Module One, 250K Framework

Rated input voltage	380/400/415VAC, three-phase four-wire
Rated operating frequency	50/60Hz
Input voltage range	228–476 VAC, –20% to +25% at full load, with a linear derating of –25% to –40%. -40% can handle 50% load
Input frequency range	40Hz~70Hz
Input power factor	Full load> 0.99, half load> 0.99
Input current harmonics (THDi)	＜3%
Input frequency slow start function	5~30 seconds can be set

Charger output voltage regulation accuracy	1%
DC ripple voltage	≤1%

Inverter output voltage	380/400/415VAC three-phase four-wire
output power factor	1（kVA-kW）
Voltage stability (steady state)	Steady state: ≤±1%; Transient: ≤±5%
Inverter overload capacity	110%1 hour, 125%10 minutes, 150%1 minute
phase shift property	At 100% balanced load: <1°; At 100% unbalanced load: <1°
total harmonic content	100% linear load: 1%;100% non-linear load: 3%

Bypass input voltage	380/400/415VAC, three-phase four-wire
Bypass voltage range	380/400/415VAC, three-phase four-wire
Bypass voltage range	Default-20% ~ + 15%,-40%, 30%,-10% ~ + 10%, + 15% and other range values can be set by software

Frequency	50Hz/60Hz (settable)
Mains synchronous tracking range	±2Hz (default), ±0.5Hz to 3 Hz, adjustable in 0.5-Hz steps
Measured frequency accuracy (internal clock)	50Hz/60Hz±0.02%
system efficiency	Up to 97%

Operating temperature range	0~40℃
Storage temperature	-25~70°C (battery not included)
Relative humidity	0 ~ 95% without condensation
Maximum operating height	≤1,500 m; between 1,500 m and 3,000 m, the system derates by 1% for every additional 100 m.
Noise （1m）	＜70dB
Protection level	IP20 (built-in dust filter)
Meets the standards	Safety regulations: IEC60950-1,IEC62040-1-1/ AS 62040-1-1, electromagnetic compatibility: IEC62040-2 / AS 62040-2/EN50091-2 CLASS A, design and testing: IEC62040-3 / AS 62040-3

Size (width * depth * height)	100010002000 mm
Weight	350.00 KG

Standard warranty

Repair or replacement within 1 year

50KVA input AC 380V: output AC 380V

Input parameter
Input voltage	220V AC
Input live conductor size	25mm²
Input neutral conductor size	50mm²
Input earth conductor size	25mm²
Input breaker	150a -Input AC 380V: Output AC 380V
Output parameter
Output voltage	220V AC
Output conductor size	25mm²
Output neutral conductor size	50mm²
Output earth conductor size	25mm²
Output breaker	150a -Input AC 380V: Output AC 380V
Battery specifications
External battery breaker	300A-Input AC 380V: Output AC 380V
External battery cable size	50mm²
