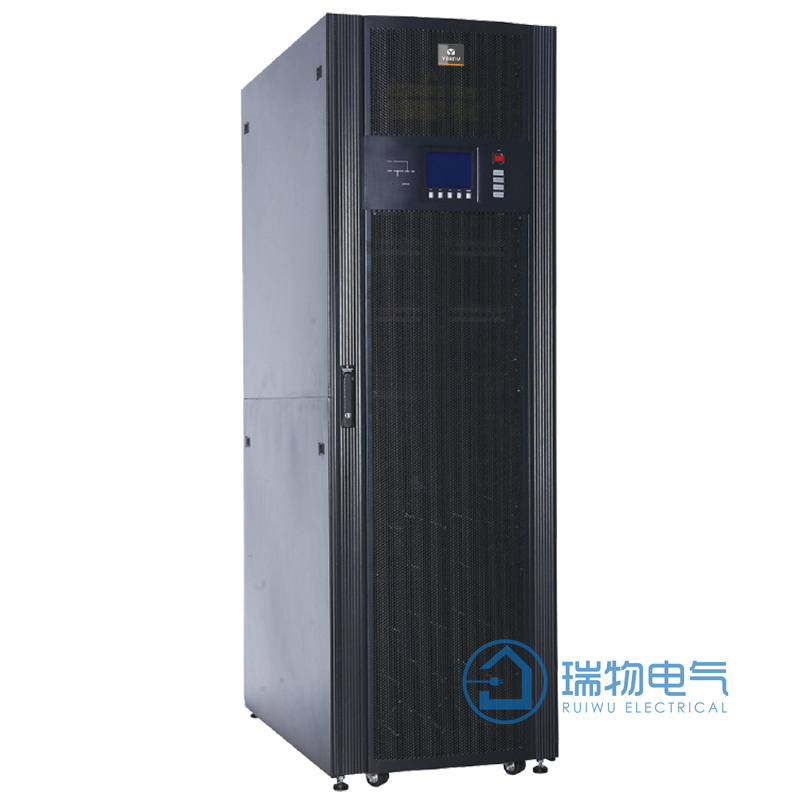

Emerson Adapt-PM-90KVA-150K frame

Detailed specifications:

Emerson Adapt-PM-90KVA-150k frame detailed parameter table

Capacity	90KVA
Model	Adapt PM 30K modules 3, 150k frame

Emerson Adapt-PM-90KVA-150k Framework Input Parameters

Rectifier type	IGBT rectification
Rated voltage	380/400/415Vac, three-phase four-wire
Input voltage range	228-476Vac,-20% ~ + 25% full load,-25% ~-40% linear derating. -40% with 70% load
Input frequency range	40/70Hz
Input power factor	Full load> 0.99, half load> 0.98

Emerson Adapt-PM-90KVA-150k Framework Output Parameters

Rated output power	90KW
Rated output voltage	380/400/415Vac, three-phase four-wire
Output frequency	50 Hz ±10%
Work style	Online double-conversion
Output waveform	Sine wave
Transfer time	0ms
Overload capacity	110% 1 hr, 125%10 min, 150%1 min,>150%200 ms

Emerson Adapt-PM-90KVA-150k Frame Battery and Runtime

Battery Model	Maintenance-free sealed lead-acid battery
Standard model Backup time	30 minutes -8 hours
Battery pack model	External battery pack
Battery pack type typical charging time
Battery voltage	480V

Emerson Adapt-PM-90KVA-150k Frame System Parameters and Standards

Mounting	Modular BCAK Rack 3U
Overall efficiency	More than 50%> 96%, more than 25%> 95%
Electromagnetic Compatibility	ICE/EN 620401-2 /AS 62040-2/ EN50091-2 CLASS-A
Surge protection	IEC61000-4-2.4.5 Level IV
Protection type	IP20 (built-in dust filter)

Emerson Adapt-PM-90KVA-150k Framework Communication and Management

Interface Port	USB/Smart Card Slot (Dry Point Card/SIC Card/SNMP Card/RS232)
Control Panel	6-inch large LCD display, Chinese and English display interface LCD LED
audible alarm	Mains power outage alarm once 4 seconds: special low battery alarm once per second

Emerson Adapt-PM-90KVA-150k Framework Physical Indicators

W	600.00 mm
D	1100.00 mm
H	2000.00 mm
Weight	450.00 KG
Colour	Black

Emerson Adapt-PM-90KVA-150k Framework Environment

Operating environment	0 - 40 °C
Operating relative humidity	0- 95% free of condensation
Operating height	≤1,000 m altitude; between 1,000 and 2,000 m, the load capacity decreases by 1% for every additional 100 m.
Storage temperature	-25 to 70°C (without battery)
Storage Relative Humidity	5- 95%
Storage height	0-15000 m
Audible noise 1 m from equipment surface	55.00~62 dB (adjusted with load rate)

Emerson Adapt-PM-90KVA-150k Frame Warranty

Standard warranty

Repair or replacement within 1 year

90KVA input AC 380V: output AC 380V

Input parameter
Input voltage	220V AC
Input live conductor size	35mm2
Input neutral conductor size	95mm2
Input earth conductor size	35mm2
Input breaker	175A-Input AC 380V: Output AC 380V
Output parameter
Output voltage	220V AC
Output conductor size	35mm2
Output neutral conductor size	95mm2
Output earth conductor size	35mm2
Output breaker	175A-Input AC 380V: Output AC 380V
Battery specifications
External battery breaker	400A-Input AC 380V: Output AC 380V
External battery cable size	95mm2
