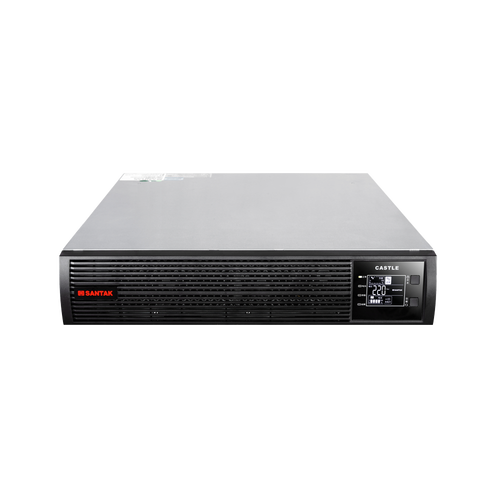

SANTAK C1KRS

SANTAK C1KRS Output

Output Power Capacity	800W/1000 VA
rated Output Voltage	220VAC
Output Rate	and Utility Power Sync 50Hz +/- 0.5% Hz
UPS Conversion Time	0ms
Output waveform	sine wave
overload capacity	110-150 for 30 seconds Output to Bypass -Circuit, more than 150 for 300ms
Output x quantity	GB X2

SANTAK C1KRS Input

rated Input voltage	115~300 VAC
Input Rate	40-60Hz (adjusted)
UPS Power Rate	85.0 percent
automatic restart	automatically restart when Utility Power returns to normal after Battery SHUTDWN

SANTAK C1KRS Communication and Management

interface Port	Wedpower card, AS400 card
control Panel	LED
with Alarma	Alarm once in 4 seconds when Utility Power is out: Alarm once in special low Battery
UPS abnormal	changming

SANTAK C1KRS Battery and Running Time

Battery No.	Maintenance-free Sealed Lead-acid Battery
charging time	10 h
External Battery Specifications	DC36V
Backup Time	select from 30 min to 8 h

SANTAK C1KRS Physical Indicators

high	87mm
wide	438mm
deep	420mm
net weight	7.2KG

SANTAK C1KRS Environment

working environment	0 - 40°C
working relative humidity	0 - 95%
Operation Height	0-3000 m
storage temperature	-5 - 45°C
storage Relative Humidity	0 - 95%
storage Height	0-15000 m
audible noise 1 m from the surface of the Standby	40.00 dBA

standard Warranty	maintenance within 3 years
compliance with environmental requirements	roHS,REACH: no Pack incl. SVHC
