Ruiwu

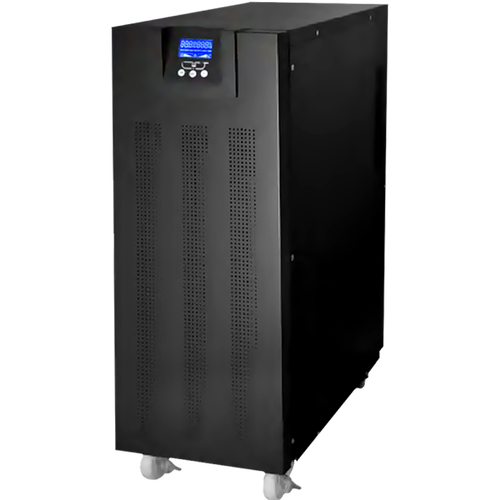

Ruiwu HF33-60KL

¥20,000.00

Capacity: 60KVA
In / Out: 3-Phase In / 3-Phase Out (380V:380V)
Series: HF33
Weight (kg): 85.5
Dimensions: D865*W300*H960

The Ruiwu HF33-60KL is a 60KVA UPS from Ruiwu Electric, with a high-frequency topology, three-phase input and three-phase output (380V:380V), and a DC voltage of 384.

For data centers, equipment rooms, telecom base stations, healthcare and industrial control applications requiring continuous power. Ruiwu battery cabinets and battery banks can extend backup runtime.

Main Parameters

Brand	Ruiwu
Series	High-frequency, Three-phase In / Three-phase Out Series
Capacity	60KVA
Input / Output	Three-phase In / Three-phase Out (380V:380V)
DC Voltage	384
UPS Topology	High-frequency
Battery Configuration	External Batteries
Structure	Tower
Dimensions (mm)	D865W300H960
Weight (kg)	85.5

Rated Capacity	60KVA/54KW
Model	HF33-60KL

HF33-60KL — Input Specifications

Voltage Range	208～478Vac, Three-phase, Four Wires + Ground
Operating Frequency Range	45-55Hz at 50Hz / 54～66Hz at 60Hz (Auto-adaptive)
Input Power Factor	≧ 0.99

HF33-60KL — Output Specifications

Rated Voltage	380/400/415Vac (± 1 %), Three-phase, Four Wires + Ground
Output Frequency	Synchronized with Input; When Utility Frequency Exceeds ±10%, Output Frequency Is 50(±0.2%)Hz; 50/60±0.2Hz (Battery)
Rated Current	91A
Output Power Factor	0.9
Output Harmonics	≦ 2 % Linear Load; ≦ 5 % Nonlinear Load
Crest Factor	3:1
Output Overload	Load ≤110%: 60 min; Load ≤125%: 10 min; Load ≤150%: 1 min; Load ＞150%: Immediate Shutdown
