Power Distribution System

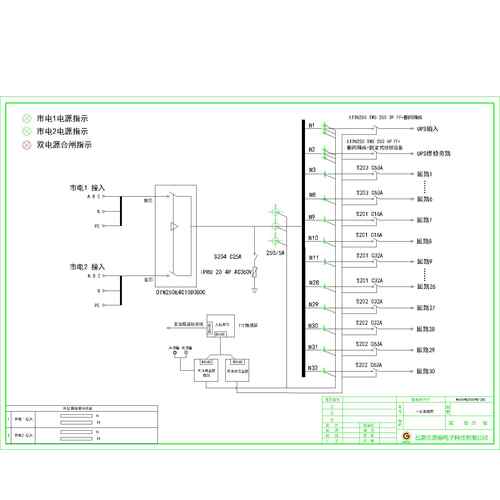

Precision Combined Cabinet ABB 250A 30-Circuit
Precision Combined Cabinet ABB 250A 30-Circuit
Package price¥25,219.94
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | Rack W600*H2000*D1200 | 1 | ¥3,222.00 | |
| ABB | OTM250E4C10D380C | 1 | ¥5,000.00 | |
| ABB | XT3N250 TMD250-2500 FFCL 4P InN=100% （10152702+10151961） | 1 | ¥2,131.22 | |
| ABB | S204-C25 | 1 | ¥173.48 | |
| ABB | S203-C63 | 6 | ¥187.22 | |
| ABB | XT3N250 TMD250 FFCL 3P | 1 | ¥1,583.26 | |
| ABB | S202-C63 | 2 | ¥122.95 | |
| ABB | S202-C32 | 2 | ¥84.24 | |
| ABB | S201-C32 | 18 | ¥35.34 | |
| ABB | S201-C16 | 2 | ¥31.02 | |
| Domestic high quality | Padlock lock setting Standby | 1 | ¥30.00 | |
| Schneider | NSX-Interphase Separator (NSX100-250A)1 strings 6 pieces | 2 | ¥56.49 | |
| Acrel | Sub-Circuit Switch Volume AMC16Z-KD | 1 | ¥540.00 | |
| National standard | Copper busbar | 11 | ¥100.00 | |
| Schneider Wanguo | iPRU 20 4P | 1 | ¥1,192.54 | |
| Acrel | 7 inch Touchscreen FE4070CE-A | 1 | ¥1,275.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 1 | ¥293.00 | |
| Acrel | 250/5A | 9 | ¥35.10 | |
| Acrel | Branch-Circuit Module AMC16Z-FA | 2 | ¥460.00 | |
| Acrel | W-12N 60A/20mA | 20 | ¥20.00 | |
| Acrel | W-9N 50A/50mA | 28 | ¥10.00 |
Request a quote
Leave your details and an engineer will get back to you within one business day.
