Power Distribution System

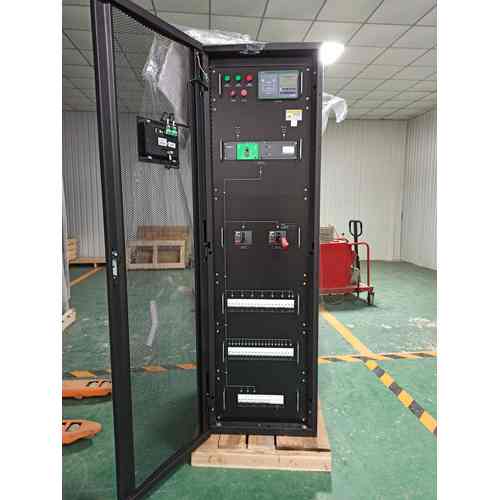

Precision Combined Cabinet Schneider 250A 30-Circuit
Precision Combined Cabinet Schneider 250A 30-Circuit
Package price¥25,608.87
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | Rack W600*H2000*D1200 | 1 | ¥3,222.00 | |
| Schneider Wanguo | WATSG-250/4H AC-33iB, secondary line 2 m | 1 | ¥7,268.07 | |
| Schneider | NSX250F TM250D 4P3D (3P N) fixed front wiring | 1 | ¥1,572.02 | |
| Schneider | IC65N 4P C25A | 1 | ¥111.91 | |
| Schneider | NSX250F TM250D 3P3D (3P) fixed front wiring | 1 | ¥1,133.83 | |
| Schneider | iC65N 3P C63A | 6 | ¥119.95 | |
| Schneider | iC65N 2P C63A | 2 | ¥79.16 | |
| Schneider | iC65N 2P C32A | 2 | ¥53.50 | |
| Schneider | iC65N 1P C32A | 18 | ¥22.34 | |
| Schneider | iC65N 1P C16A | 2 | ¥19.89 | |
| Domestic high quality | Padlock lock setting Standby | 1 | ¥30.00 | |
| Schneider | NSX-Interphase Separator (NSX100-250A)1 strings 6 pieces | 2 | ¥56.49 | |
| Acrel | Sub-Circuit Switch Volume AMC16Z-KD | 1 | ¥540.00 | |
| National standard | Copper busbar | 11 | ¥100.00 | |
| Schneider Wanguo | iPRU 20 4P | 1 | ¥1,192.54 | |
| Acrel | 7 inch Touchscreen FE4070CE-A | 1 | ¥1,275.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 1 | ¥293.00 | |
| Acrel | 250/5A | 9 | ¥35.10 | |
| Acrel | Branch-Circuit Module AMC16Z-FA | 2 | ¥460.00 | |
| Acrel | W-12N 60A/20mA | 20 | ¥20.00 | |
| Acrel | W-9N 50A/50mA | 28 | ¥10.00 |
