Power Distribution System

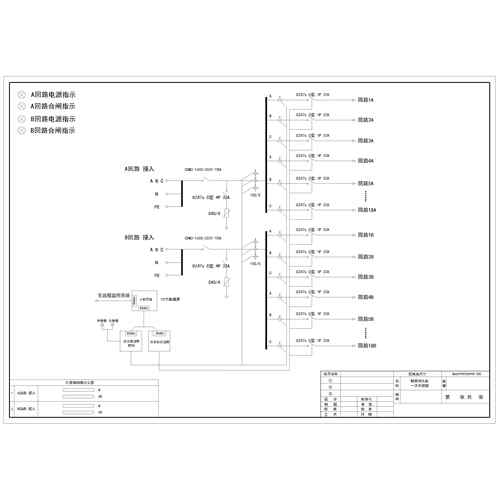

Precision Row PDU Cabinet Dual Input / Dual Output Delixi 125A per Circuit 18-Circuit total 36-Circuit
Precision Row PDU Cabinet Dual Input / Dual Output Delixi 125A per Circuit 18-Circuit total 36-Circuit
Package price¥24,323.32
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | Rack W600*H2000*D1200 | 1 | ¥3,222.00 | |
| Delixi | DZ47s C 4P 32A | 2 | ¥13.52 | |
| Delixi | CDM3-160S/3300 125A | 2 | ¥204.24 | |
 | Delixi | DZ47s C 1P 32A | 36 | ¥3.22 |
| Delixi | AUXILIARY RIGHT (TERMINAL) M3-160/250 1K1B 3P | 2 | ¥11.48 | |
| Acrel | 10 inch Touchscreen FE4097CE-A | 1 | ¥1,950.00 | |
| Domestic high quality | RS-50-24 | 2 | ¥304.00 | |
| Domestic high quality | LC-C40/4P | 2 | ¥260.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 1 | ¥293.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FA | 2 | ¥460.00 | |
| Acrel | Sub-Circuit Switch Volume AMC16Z-KA | 1 | ¥540.00 | |
| Domestic high quality | LC 150/5 | 6 | ¥25.00 | |
| Acrel | W-9N 50A/50mA | 36 | ¥10.00 | |
| National standard | Copper busbar | 16 | ¥100.00 |
