Power Distribution System

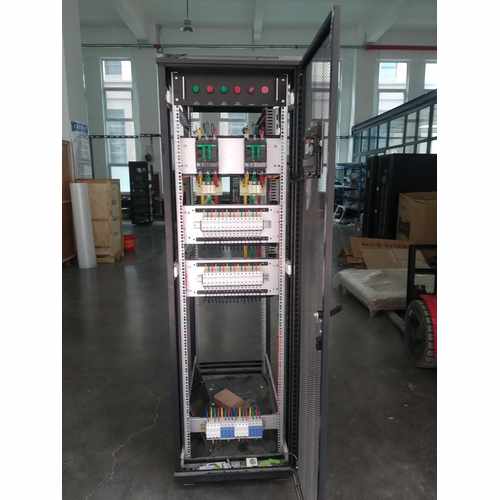

Precision Row PDU Cabinet Schneider 160A 4P 32-Circuit
Precision column head cabinet Schneider 160A 4P double Circuit access (160A * 2 16*2), rear throw terminal, equipped with AC 220v stripping coil
Package price¥16,248.81
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | Rack W600*H2000*D1200 | 1 | ¥3,222.00 | |
| Schneider | iC65N 4P C32A | 2 | ¥111.91 | |
| Schneider | NSX160F TM160D 3P3D (3P) fixed front wiring | 2 | ¥800.08 | |
| Schneider | iC65N 1P C32A | 32 | ¥22.34 | |
| Schneider | NS-OF/SD(100-630)(29450) | 2 | ¥96.00 | |
| Schneider | NSX-Interphase Separator (NSX100-250A)1 strings 6 pieces | 2 | ¥56.49 | |
| Acrel | Touchscreen ATP007 | 1 | ¥600.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 1 | ¥293.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK48 | 1 | ¥587.00 | |
| Domestic high quality | LC 200/5 | 6 | ¥42.00 | |
| National standard | Copper busbar | 6 | ¥100.00 | |
| Domestic high quality | AM2-40/4 | 2 | ¥138.00 | |
| Acrel | W-9N 50A/50mA | 32 | ¥10.00 |
