Power Distribution System

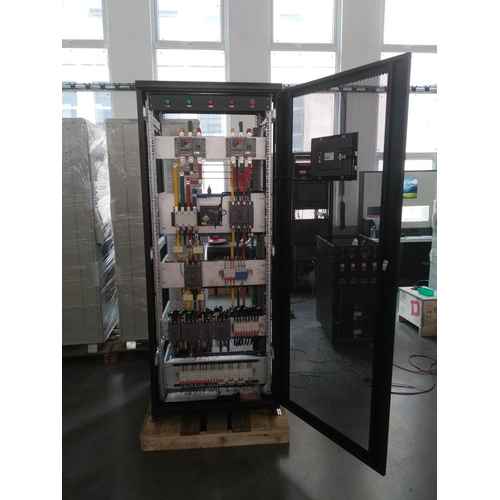

Dual-source Smart Distribution Cabinet Delixi 250A 4P Precision 19-Circuit
Dual-source Smart Distribution Cabinet Delixi 250A 4P Precision 19-Circuit ; UPS Output , with Padlock , All MCBs with Rear Terminals , 100A and 63A MCCB Bottom Busbar
Package price¥19,807.81
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | Rack 800*2000*800 | 1 | ¥1,800.00 | |
| Delixi | CDQ1s-160/4P 160A | 1 | ¥1,362.24 | |
| Delixi | HGL-250/3 250A | 2 | ¥415.31 | |
| Delixi | CDM3-160S/4300B 160A | 1 | ¥270.48 | |
| Delixi | CDM3S-125S/4300B 100A | 2 | ¥409.00 | |
| Delixi | DZ47s C 4P 32A | 1 | ¥13.52 | |
| Delixi | CDM3-160S/3320 160A | 1 | ¥217.34 | |
| Delixi | DZ47s D 3P 63A | 3 | ¥12.97 | |
| Delixi | CDM3-63S/3300 63A | 2 | ¥79.98 | |
| Delixi | DZ47s C 3P 40A | 1 | ¥11.26 | |
| Delixi | DZ47s C 3P 32A | 2 | ¥9.95 | |
| Delixi | DZ47s C 2P 32A | 1 | ¥6.76 | |
| Delixi | DZ47sLE 2P C 20A | 3 | ¥35.28 | |
| Delixi | DZ47s C 1P 32A | 3 | ¥3.22 | |
| Delixi | DZ47s C 1P 20A | 2 | ¥3.22 | |
| Domestic high quality | Padlock lock setting Standby | 3 | ¥30.00 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Acrel | Touchscreen ATP010 | 1 | ¥1,597.50 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 1 | ¥293.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK48 | 1 | ¥587.00 | |
| Domestic high quality | LC 200/5 | 6 | ¥42.00 | |
| Acrel | W-9N 50A/50mA | 18 | ¥10.00 | |
| Acrel | W-12N 60A/20mA | 15 | ¥20.00 | |
| Acrel | W-20N 100A/50mA | 6 | ¥72.00 | |
| National standard | Copper busbar | 13 | ¥100.00 |
