Power Distribution System

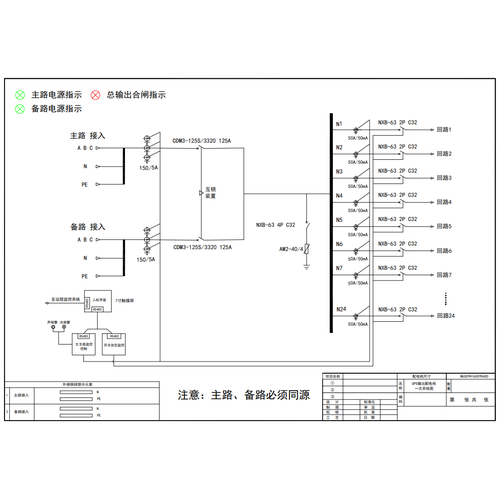

UPS Output Distribution Cabinet CHINT 125A 4P Precision 24-Circuit (Variant)
UPS Output Distribution Cabinet CHINT 125A 4P Precision 24-Circuit ; Main-Circuit Standby-Circuit Simultaneous Feed , with Interlock , Main-Circuit , Standby-Circuit Same Source
Package price¥9,025.48
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | XL21 Power Cabinet 600*1600*400 | 1 | ¥951.60 | |
 | CHINT ELECTRICAL APPLIANCES | NXB-63 4P C32 | 1 | ¥22.86 |
 | CHINT ELECTRICAL APPLIANCES | NXM-125S/3300 125A | 2 | ¥147.60 |
 | CHINT ELECTRICAL APPLIANCES | NXB-63 2P C32 | 24 | ¥11.43 |
| Domestic high quality | Interlock | 1 | ¥65.00 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Domestic high quality | LC 150/5 | 6 | ¥25.00 | |
| National standard | Copper busbar | 6 | ¥100.00 | |
| Acrel | Touchscreen ATP007 | 1 | ¥600.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK24 | 1 | ¥391.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 1 | ¥293.00 | |
 | Acrel | W-9N 50A/50mA | 24 | ¥10.00 |
