Power Distribution System

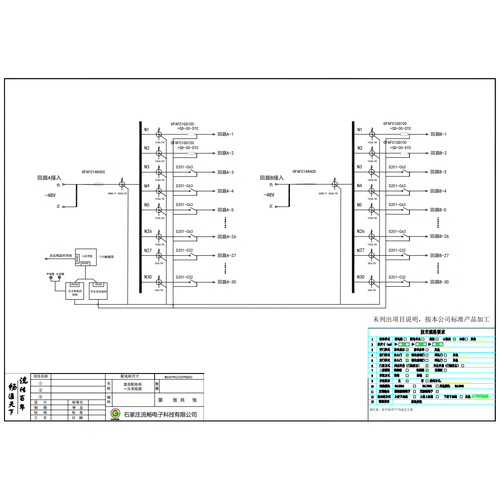

DC Distribution Cabinet ABB 400A 1P Precision Dual-Circuit 60-Circuit (Variant)
DC Distribution Cabinet ABB 400A 1P Precision Dual-Circuit (30*2) total 60-Circuit ; Operating Voltage DC-48V , without Terminal Block , Top/Bottom Cable Entry and Exit
Package price¥25,740.40
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | W600*H2200*D800 | 1 | ¥1,963.00 | |
| ABB | S201-C63 | 48 | ¥56.17 | |
| ABB | S201-C32 | 8 | ¥35.34 | |
| ABB | OFAFC1GG100 | 4 | ¥34.81 | |
| ABB | OFAFC1AR400 | 2 | ¥283.14 | |
| Acrel | Touchscreen ATP007 | 1 | ¥600.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZD | 1 | ¥624.00 | |
| Acrel | AHKC-BS-100A/5V | 52 | ¥70.00 | |
| Acrel | AHKC-BS-50A/5V | 8 | ¥70.00 | |
| Acrel | AHKC-F 400A/5V | 2 | ¥124.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FDK24 | 1 | ¥921.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FDK48 | 1 | ¥1,000.00 | |
| Acrel | KDYA-DG50C-D | 1 | ¥300.00 | |
| National standard | Copper busbar | 15 | ¥100.00 |
Request a quote
Leave your details and an engineer will get back to you within one business day.
