Power Distribution System

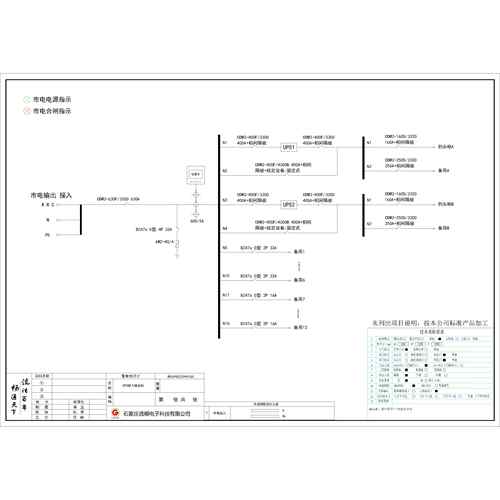

UPS Input/Output Cabinet Delixi 630A 4P 16-Circuit (Variant)
Delixi 630A 16-Circuit 4P UPS Input/Output Cabinet
Package price¥21,613.36
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
 | Domestic high quality | W800*H2200*D1000 | 1 | ¥2,639.00 |
| Delixi | CDM3-400F/4300B 400A | 2 | ¥709.33 | |
 | Delixi | DZ47s C 4P 32A | 1 | ¥13.52 |
| Delixi | CDM3-630F/3300 630A | 1 | ¥768.66 | |
| Delixi | CDM3-400F/3300 400A | 4 | ¥496.11 | |
| Delixi | CDM3-250S/3300 250A | 2 | ¥222.87 | |
| Delixi | CDM3-160S/3320 160A | 2 | ¥217.34 | |
| Delixi | DZ47s C 2P 32A | 6 | ¥6.76 | |
| Delixi | DZ47s C 2P 16A | 6 | ¥6.76 | |
| Delixi | CDM3L-400 phase separator 4P(6 pieces) | 4 | ¥10.00 | |
| Delixi | CDM3L-400 interphase separator 3P(4 pieces) | 7 | ¥10.00 | |
| Domestic high quality | Padlock lock setting Standby | 2 | ¥30.00 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Acrel | 3-Phase Power Meter AMC72L-E4/KC | 1 | ¥280.00 | |
| Domestic high quality | LC 600/5 | 3 | ¥62.71 | |
| National standard | Copper busbar | 46 | ¥100.00 |
