Power Distribution System

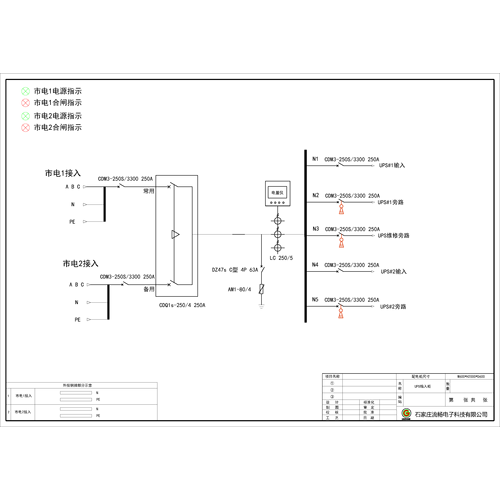

120kVA UPS Input Cabinet Delixi 250A 4P 4-Circuit Standard
120kVA UPS Input Cabinet Delixi 250A 4P 4-Circuit Standard with Power Meter Dual Source ATS with Maintenance Bypass
Package price¥10,262.53
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | Rack 600*2000*600 | 1 | ¥1,020.00 | |
| Delixi | CDQ1s-250/4 250A | 1 | ¥1,382.40 | |
| Delixi | DZ47s C 4P 63A | 1 | ¥16.04 | |
| Delixi | CDM3-250S/3300 250A | 7 | ¥222.87 | |
| Domestic high quality | Padlock lock setting Standby | 3 | ¥30.00 | |
| Domestic high quality | AM1-80/4 | 1 | ¥273.00 | |
| Acrel | 3-Phase Power Meter AMC72L-E4/KC | 1 | ¥280.00 | |
| Domestic high quality | LC 250/5 | 3 | ¥47.00 | |
| National standard | Copper busbar | 7 | ¥100.00 |
