Emerson

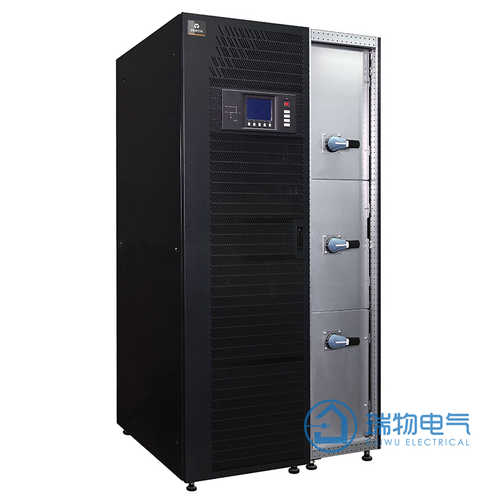

Emerson eXM-100KVA
Three-in-three-out 100K online high-frequency pilot can issue VAT invoices by postage in most areas.
¥118,476.60List price ¥371400.00
- Rated power
- 100KW (kilowatt)
- Rated capacity
- 100KVA (KVA)
- Input / output
- Three in and three out (380V:380V)
- External battery voltage
- (long machine) 480V (DC)
- Blocks per string
- 40 pieces
- Net weight
- 430.00kg (kg)
- Gross weight
- 294.80kg (kg)
- Dimensions (L×W×H)
- 600*1000*2000mm (mm) U
UPS runtime configurations
View on mobileDetailed specifications:
Emerson eXM-100KVA detailed parameter table
| Capacity | 100KVA |
| Model | eXM-100KVA |
Emerson eXM-100KVA input parameters
| Rated input voltage (V) | 380/400/415 |
| Input voltage range (V) | 228~478 |
| Rated input frequency (Hz) | 50/60 |
| Input frequency range (Hz) | 40-70 |
| Bypass voltage range (%) | Upper limit: + 10%, + 15% or 20%, default: + 15%; Lower limit:-10%,-20%,-30% or-40%, default:-20% |
| Bypass frequency range (%) | ±10% or ±20%, default ±10% |
| Input power factor | ＞0.99 |
| Input current THDi @ 100% linear load | ＜3% |
Emerson eXM-100KVA output parameters
| Rated output voltage (V) | 380/400/415 |
| Rated output frequency (Hz) | 50/60 |
| Rated active power | PF=1 |
| THDv @ 100% Linear Load | ＜1% |
| Inverter overload capacity | 110 (60 minutes);125 (10 minutes);150 (1 minute) |
Emerson eXM-100KVA battery and runtime
| Adjustable range of battery number | 30-40 |
| Voltage temperature compensation (mV/°C/cell) | -3.0 (optional range: 0 to -5.0, approximately 25°C or 30°C, or inhibition) |
| Maximum charger current (A) | 30 |
Emerson eXM-100KVA Efficiency
| double conversion efficiency | Up to 96.5% |
| ECO mode | Up to 99.1% |
Emerson eXM-100KVA Size and Weight
| Dimensions (W*D*H)mm | 600*1000*2000 |
| Weight (kg) | 430 |
Emerson eXM-100KVA Other Specifications
| Noise within 1 meter (dB) | 61 |
| Altitude | ≤1,500 m altitude; between 1,500 and 3,000 m, derate the system by 1% for every additional 100 m. |
| Ventilation | Standard rear air outlet, option support upper air outlet |
| Protection class IEC(60529) | IP20 standard |
| Safety standard | EN62040-1/IEC62040-1/AS62040-1 |
| EMC standard | EN62040-2 / IEC62040-2 / AS62040-2 |
| Methods for determining performance and test standards | EN62040-3 / IEC62040-3 / AS62040-3 (VFI-SS-111) |
Emerson eXM-100KVA Warranty
| Standard warranty | Repair or replacement within 1 year |
