Treasure Star FEPS-BX-22-KVA

Name: Treasure Star FEPS-BX-22-KVA
SKU: 77
Price: 31058 CNY
Availability: InStock

Power/lighting hybrid EPS 90 minutes including battery tax excluding shipping

¥31,058.00List price ¥48000.00

Ratings

View on mobile

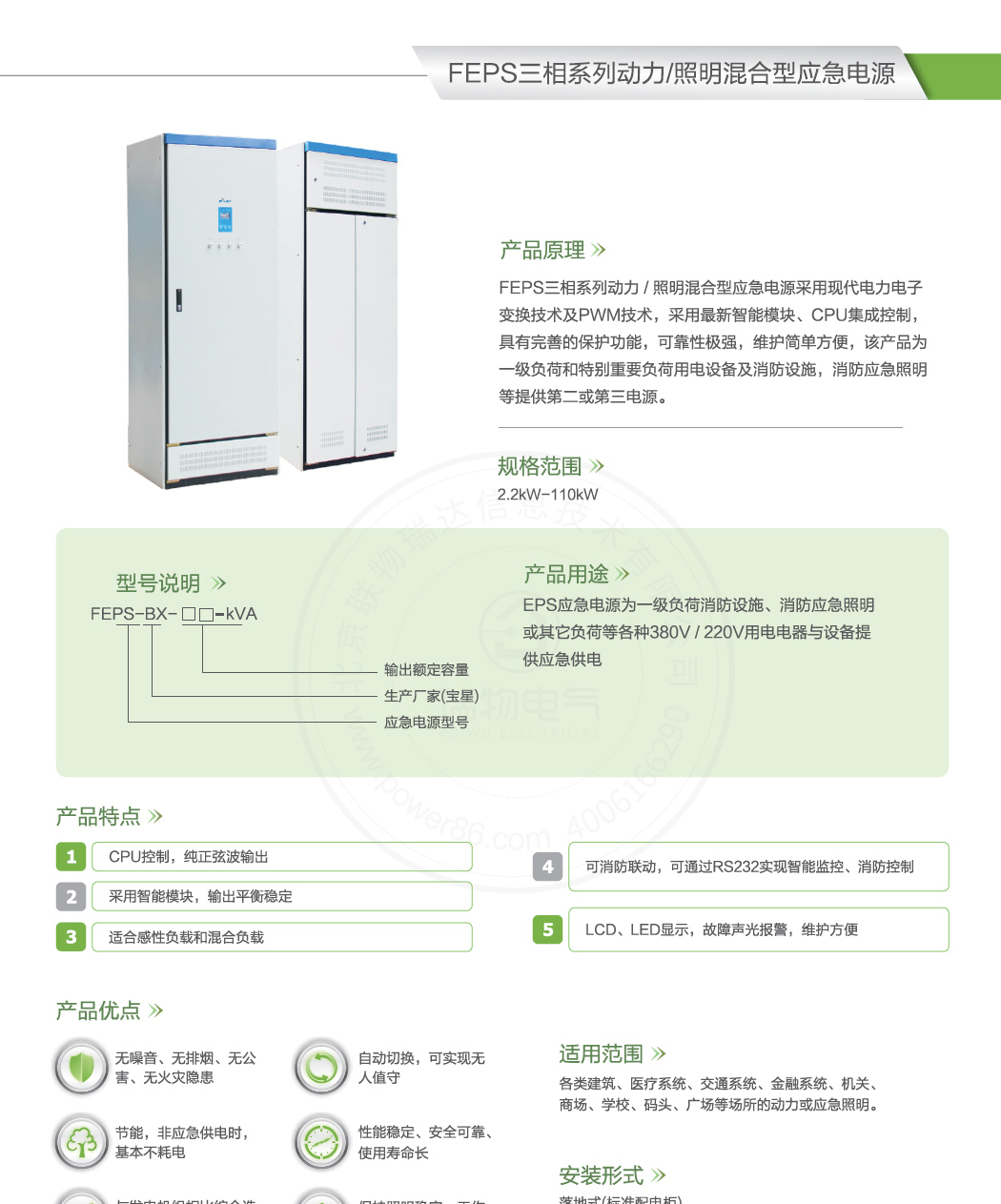

Product introduction https://img.rwyun.com/power86/rs1/eps/1552/2517/77/77_c0.jpg

Detailed specifications:

Baoxing FEPS-BX-22-KVA input
Voltage	380VAC±25%
Phase number	Three-phase four-wire ground wire
Frequency	50Hz±5%
Treasure Star FEPS-BX-22-KVA Output
Power (kw)	22
Voltage	Normal operation: Same as mains voltage Emergency operation: 380VAC ± 3%
Frequency	Normal operation: Same as mains voltage; Emergency mode: 50Hz ± 0.5%
Waveform	Sine wave
Baoxing FEPS-BX-22-KVA Battery
Battery type	Sealed lead-acid maintenance-free battery
Nominal voltage	480 (or 192)VDC
Charging time	8 hours, 90% recharge
Baoxing FEPS-BX-22-KVA Working Environment
Humidity	0-90% without condensation
Temperature	-20℃~40℃
Altitude	≤2000m
Baoxing FEPS-BX-22-KVA other parameters
Transfer time	≤5s (≤0.25 s in special cases)
Emergency power supply time	90min (as required)
Protection function	Overload, short circuit, under voltage protection, phase loss can be operated
Display	LCD、LED
Efficiency	During emergency power supply: ≥92% Normal operation: ≥98%
Noise (1m distance)	No noise during mains operation; ≤65dB during emergency operation.
Adapt to load	Suitable for all kinds of inductive load and capacitive mixed load
Output loop (Standard Type)	3
External dimensions (mm) Width × Depth × Height	800×600×2260
Configuration battery cabinet (unit)	External battery cabinet
Host weight (kg)	280
Battery Weight (kg)	1580
