Kohler

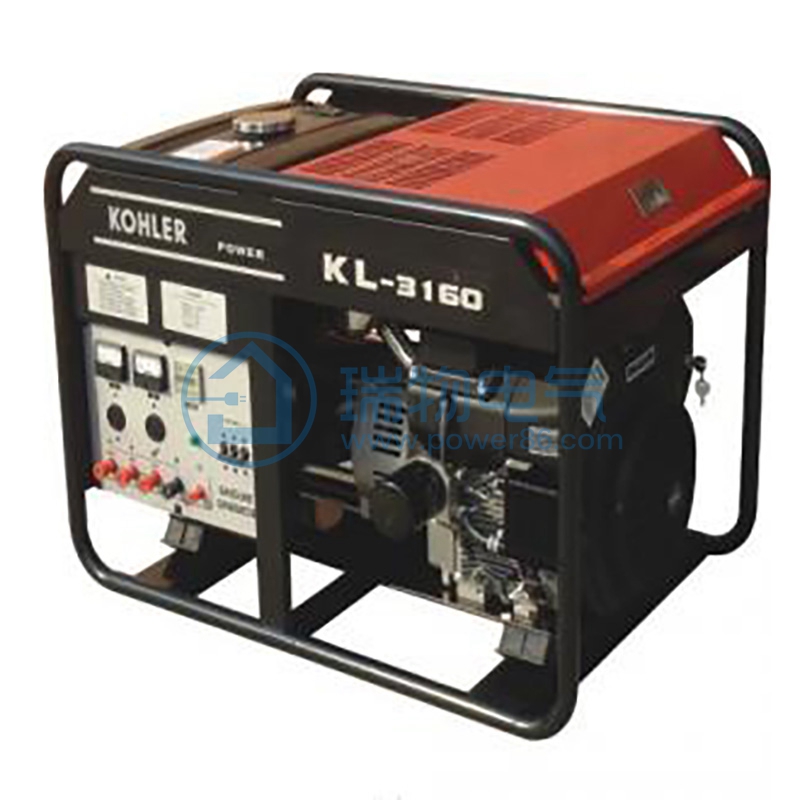

Kohler KL-3160
Price on request
- Rated power
- 14KW (kW)
- Maximum power
- 15KW (kilowatt)
- Oil type
- Petrol
- Fuel tank capacity
- 37L (L)
- Startup method
- Unknown
- Net weight
- 150 kg (kg)
- Dimensions (L×W×H)
- 930*610*620mm (mm)
View on mobileDetailed specifications:
| KL—Technical parameters of 3160 gasoline generator unit | ||
| Brand | KOHLER United States Kohler | |
| Unit Model | 3160 | |
| Frequency | 50（Hz） | |
| Rated power | 14KVA（kW） | |
| Rated voltage | 380（V) | |
| Phase number | Three-phase | |
| Engine model | 22HP | |
| Starting method | Electric start | |
| Product certification | ISO9001:2000 | |
| Engine | ||
| Type/Model | Forced air cooled 4-stroke gasoline engine | |
| Displacement | 674CC | |
| Maximum theoretical power | 22PS/3600rpm | |
| Ignition system | non-contact transistor | |
| starting system | Electric start | |
| Oil capacity | 1.9L | |
| Fuel tank capacity | 37L | |
| Fuel consumption | 4L/hr | |
| Noise (7 m away) | 74dB | |
| Continuous working hours | 9hr | |
| Generator | ||
| Rated voltage | 380V | |
| Rated frequency | 50Hz | |
| Electric current | 17A*3 | |
| Rated power | 14KVA | |
| Maximum power | 15KVA | |
| Complete machine | ||
| long | 930mm | |
| Wide | 610mm | |
| High | 620mm | |
| Net weight | 150kg | |
