Yamaha

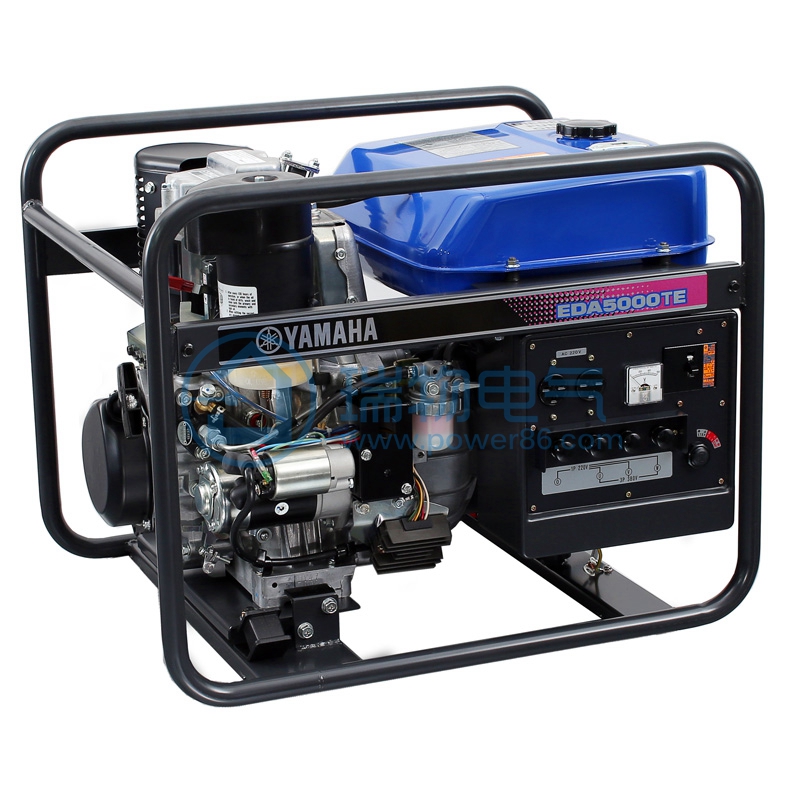

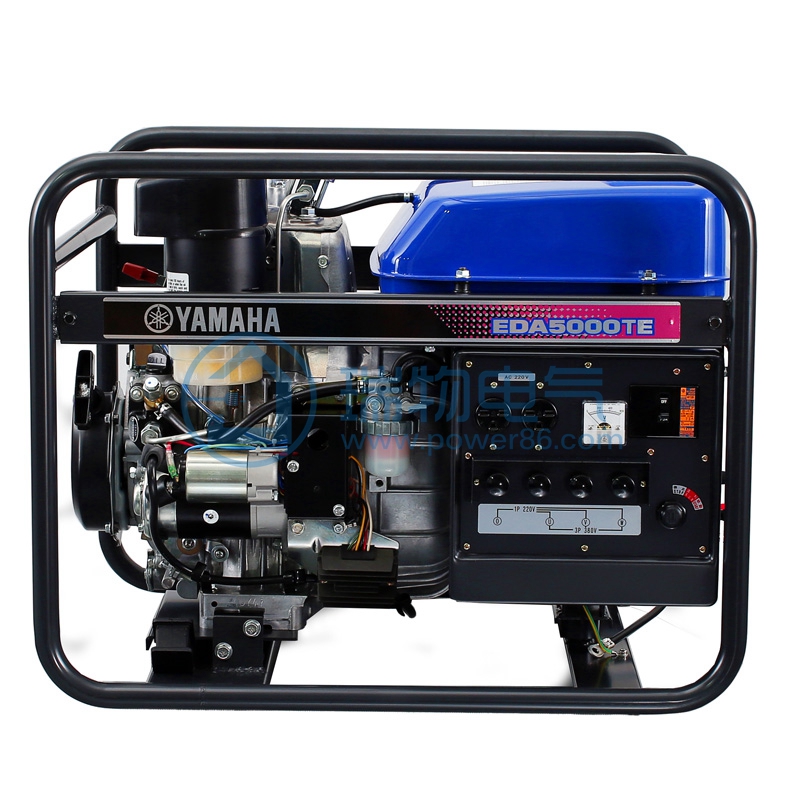

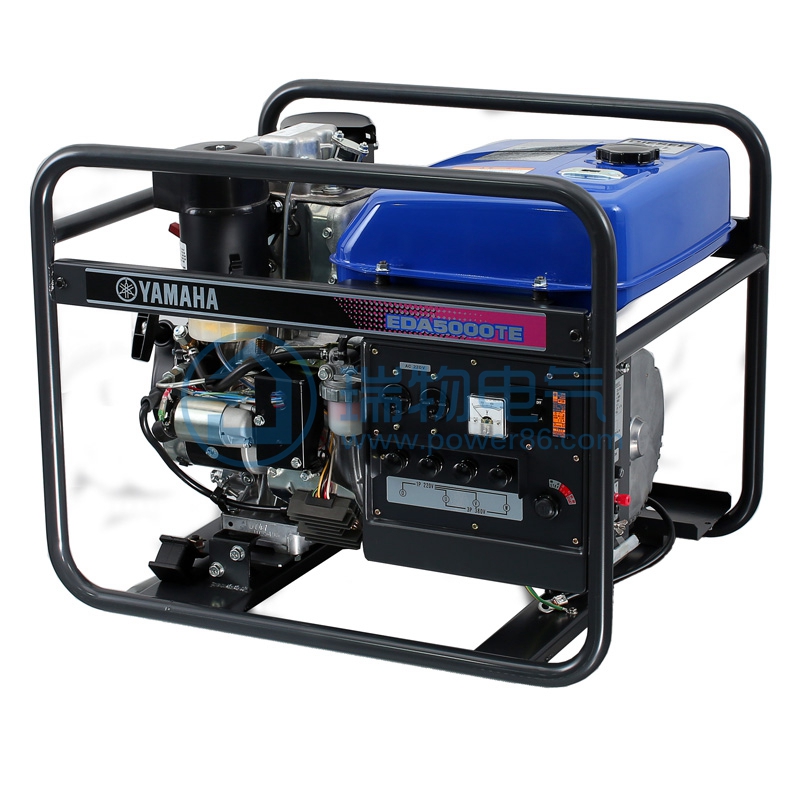

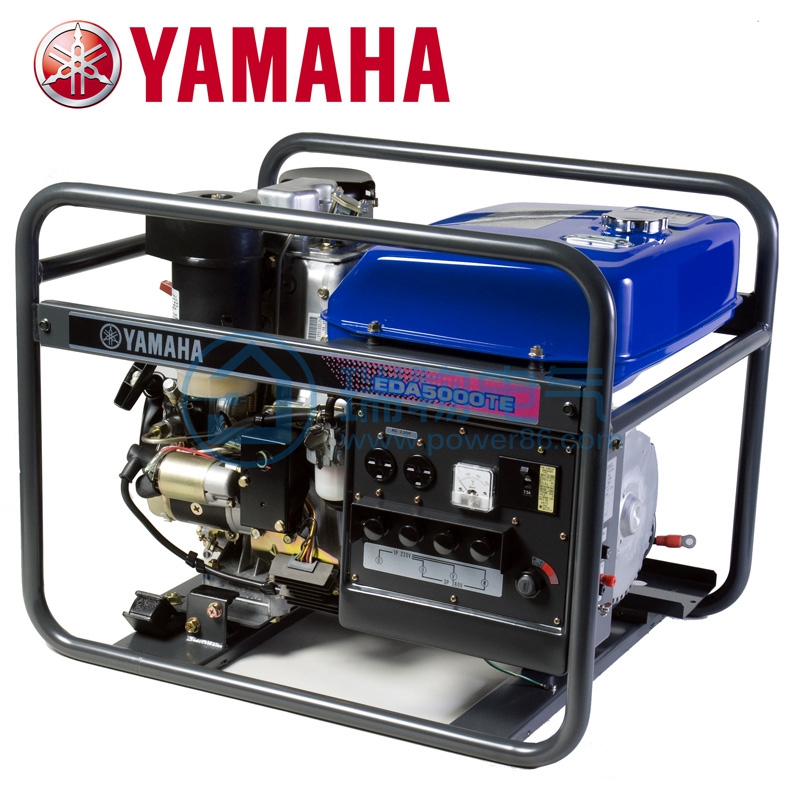

Yamaha EDA5000TE

Name: Yamaha EDA5000TE
Brand: Yamaha
SKU: 105
Availability: InStock

Price on request

View on mobile

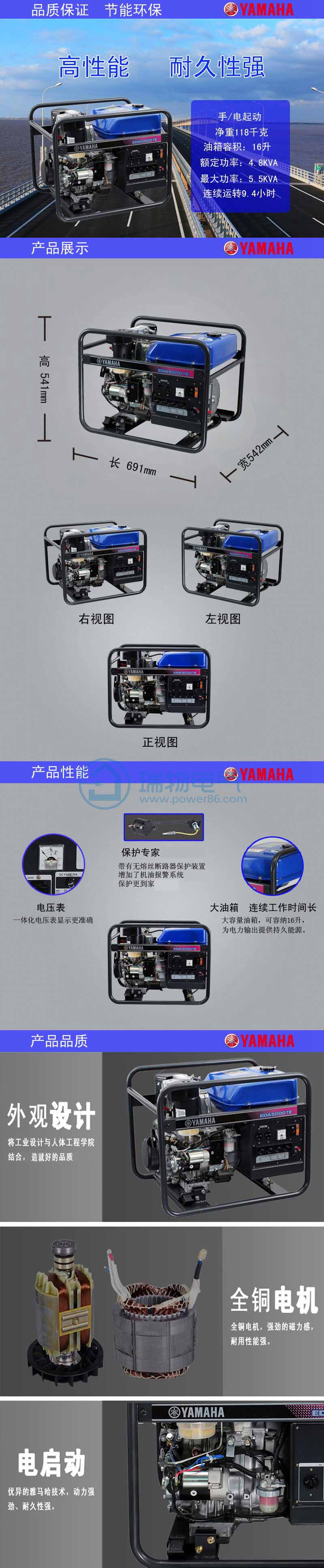

Product introduction https://img.rwyun.com/power86/rs1/generator/152/157/105/105_c0.jpg

Detailed specifications:

Yamaha Generator
Type	AC generator with brush/three-phase
Rated voltage (V)	220 (Single-phase) / 380 (Three-phase)
Frequency (Hz)	50
Rated output (KVA)	4.8
Maximum output (KVA)	5.5
DC output	12V/8.3A electrode
Yamaha Generator EDA5000TEEngine
Type	4-stroke air-cooled single-cylinder diesel generator
Displacement (cm³)	412
Maximum output (kw(PS))	6.3(8.5) / 3600rpm
Starting method	Hand start/electric start
Yamaha Generator EDA5000TEOverview
Length × Width ×High (mm)	691×542×541
Net weight (kg)	118
Fuel tank volume (l)	16.0
Continuous running time (Hr)	9.4
Noise level (db A)(7m)	76
Yamaha Generator EDA5000TEFeatures
Brushless ball	x
Voltage regulation mode	capacitance compensation
electric starter	O
No fuse circuit breaker	N.F.B
DC protection	Fuse (10A)
Fuel gauge	O
Oil warning lamp	O
Water temperature alarm device	x
Charging indicator light	x
Voltmeter	O
Output indicator light	O
Energy-saving idle device	x
Yamaha Generator EDA5000TEAccessory Configuration
Wheel Attachment	Optional equipment
Remote control terminal	x
Lifting lug	x
AC plug	O
Fuse	10A*2

Data not yet provided
