Santak

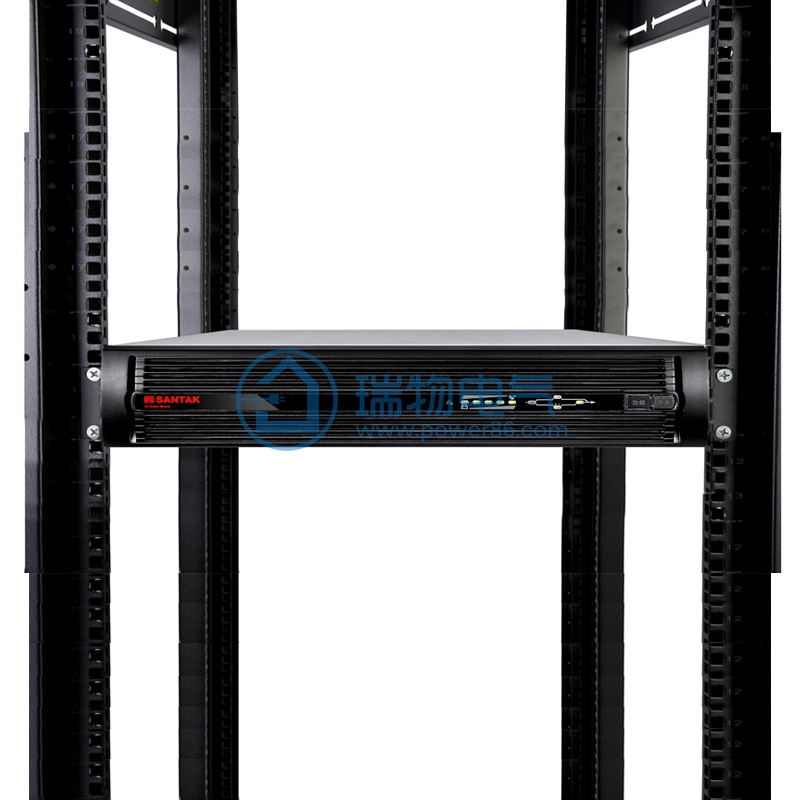

Santak C2KR

Name: Santak C2KR
Brand: Santak
SKU: 143
Price: 3085.98 CNY
Availability: InStock

Santak 2k Single-in Single-out Built-in Battery Label Machine Postage in Most Areas of the Country

¥3,085.98

Ratings

View on mobile

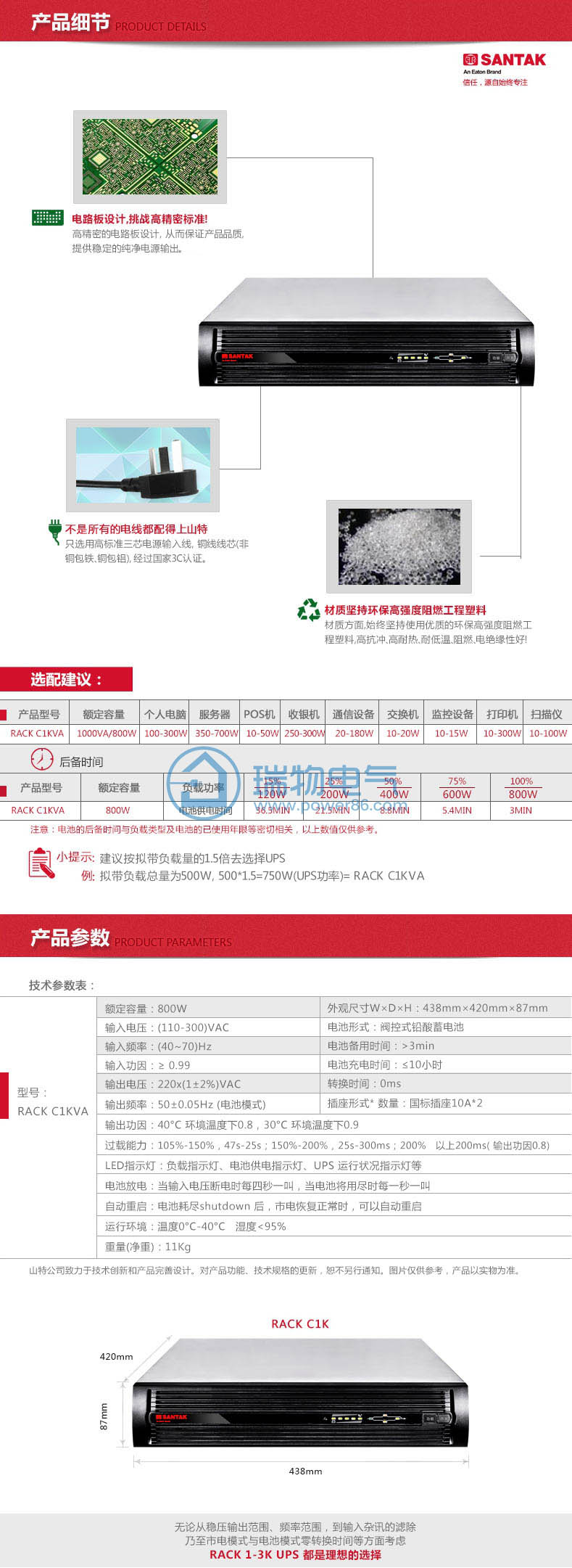

Product introduction https://img.rwyun.com/power86/rs1/ups/10/125/143/143_c0.jpg Series Introduction

Detailed specifications:

Output power Capacity	1600W/2000 VA
Rated output voltage	220VAC
Output frequency	Synchronization with mains 50 Hz +/- 0.5% Hz
UPS Transfer time	0ms
Output waveform	Sine wave
Overload capacity	At 110%–150%, the output remains in bypass mode for 30 seconds; above 150%, it stays in bypass for 300 ms.
Output form x quantity	GB X2

Santak C2KR Input

Rated input voltage	115~300 VAC
Input frequency	40–60Hz (adjustable)
UPS power supply Efficiency	85.0%
Automatic restart	After the battery is SHUTDWN, when the mains power returns to normal, it can automatically restart

Interface Port	Wedpower card, AS400 card
Control Panel	LED
audible alarm	Mains power outage alarm once 4 seconds: special low battery alarm once per second
UPS abnormal	continuous beep

Battery Model	Maintenance-free sealed lead-acid battery
Typical charging time	10 hours
External battery specifications	DC96V
Backup time	14 minutes (half load)

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-5 - 45 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Audible noise 1 m from equipment surface	40.00 dBA

Standard warranty	Maintenance within 3 years
Compliance with environmental requirements	RoHS,REACH: does not contain SVHC

2KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	40A-2P
External battery cable size	4mm²
