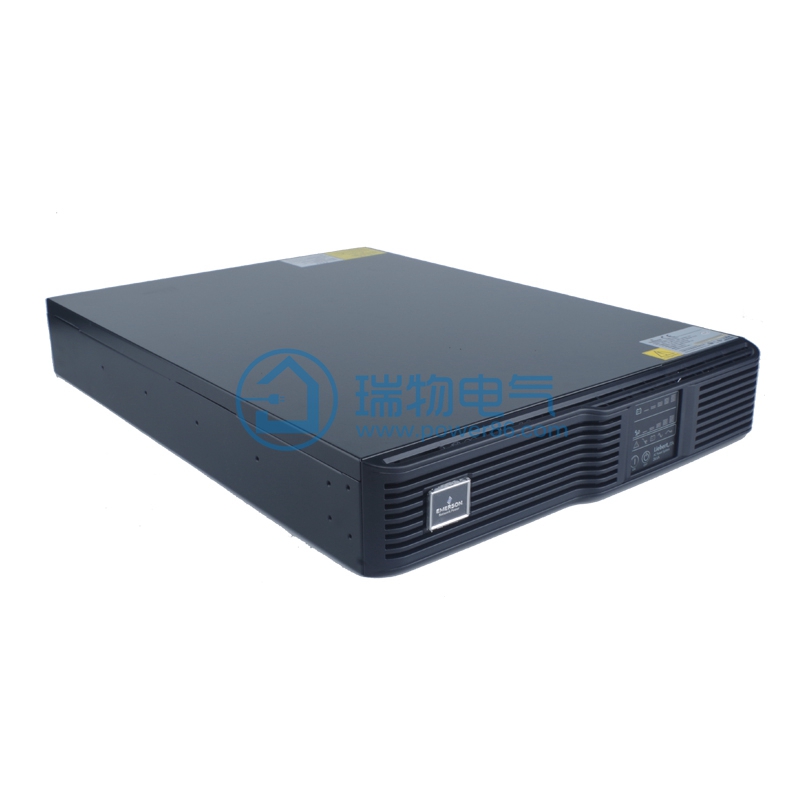

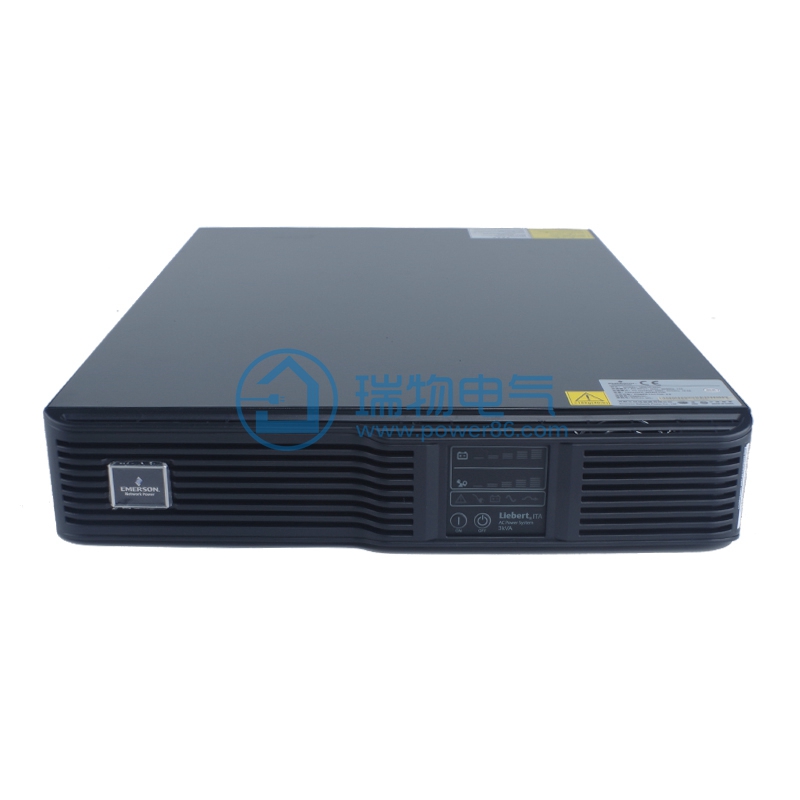

Emerson UHA1R-0020L

Detailed specifications:

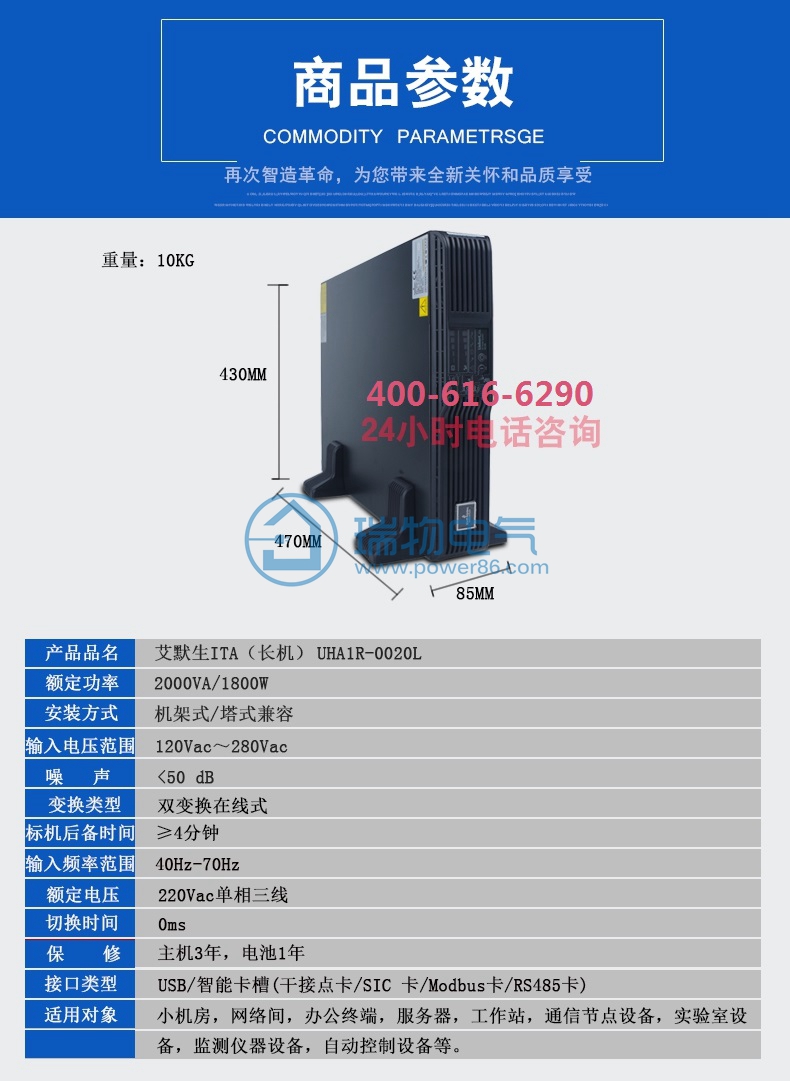

Emerson UHA1R-0020L detailed parameter table

Capacity	2KVA
Model	UHA1R-0020L

Emerson UHA1R-0020L input parameters

Rectifier type	IGBT rectification
Rated voltage	220Vac single phase three wire
input voltage confining voltage	120Vac~280Vac
Input frequency range	40Hz~70Hz
Input power factor	≥ 0.99

Emerson UHA1R-0020L output parameters

Rated output power	2000VA / 1800 W
Rated output voltage	220/230/240Vac (user adjustable)
Output frequency	50/60 Hz ± 0.1Hz
Work style	Online double-conversion
Output waveform	Sine wave
Transfer time	0ms
Overload capacity	150%，60s

Emerson UHA1R-0020L battery and runtime

Battery Model	Maintenance-free sealed lead-acid battery
Standard model Backup time	30 minutes -8 hours optional
Battery pack model	U08-09C1-03 (up to 7) 430W * 470D * 85H,26Kg
Battery pack type typical charging time	8 hours
Battery voltage	48V

Emerson UHA1R-0020L System Parameters and Standards

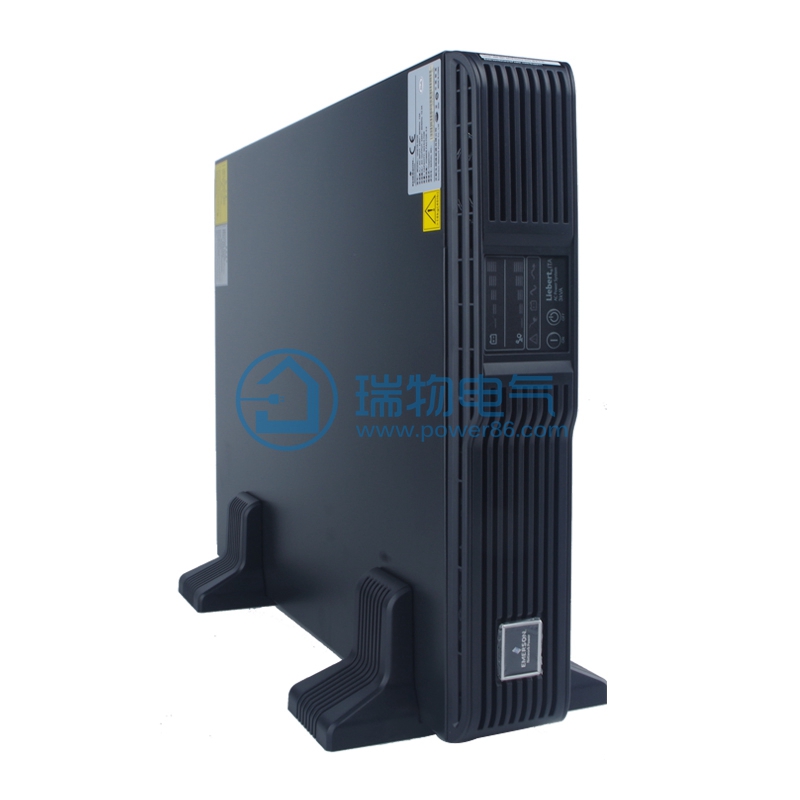

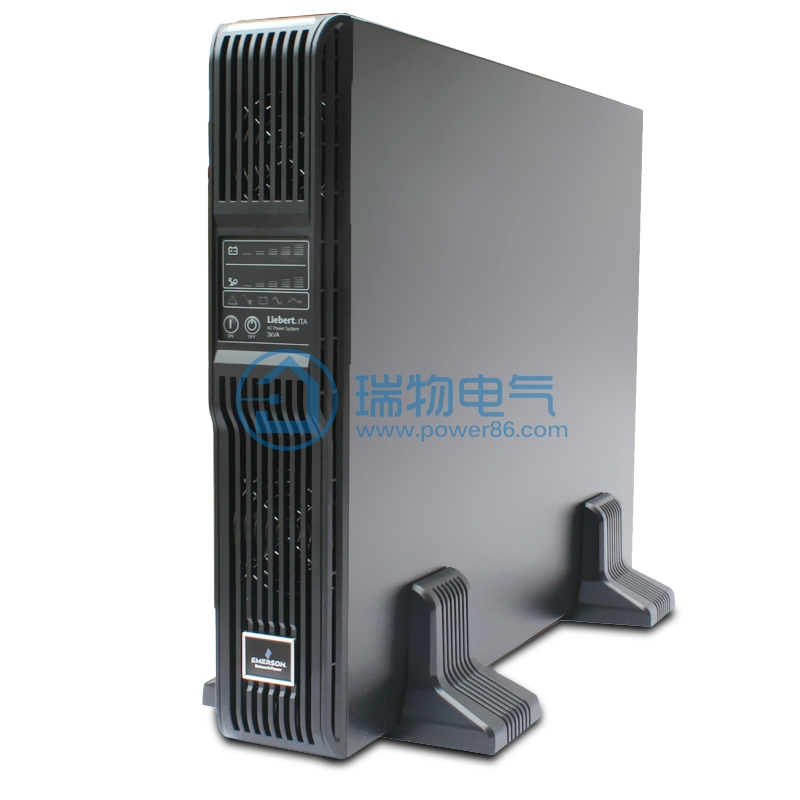

Mounting	Rack/Tower Compatible
Overall efficiency	Up to 90%
Electromagnetic Compatibility	ICE/EN/AS 62040-2 2nd ed=CISRP22
Surge protection	ICE/EN 62040-2, meeting ICE/EN 61000-4-5
Protection type	IP20

Emerson UHA1R-0020L Communications and Management

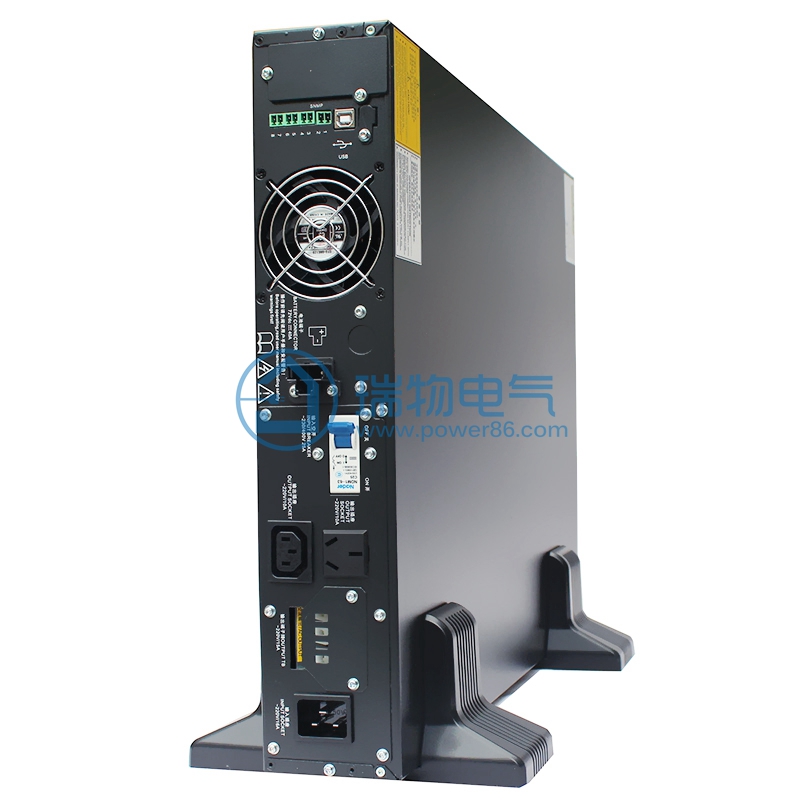

Interface Port	USB/smart card slot (dry point card/SIC card/SNMP card/RS485 card)
Control Panel	Multi-function LCD status management console.
audible alarm	Mains power outage alarm once 4 seconds: special low battery alarm once per second

Emerson UHA1R-0020L Physical Indicators

W	430.00 mm
D	470.00 mm
H	85.00 mm
Weight	10.00 KG
Colour	Black

Emerson UHA1R-0020L Environment

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-1500 m
Storage temperature	-5 - 45 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Audible noise 1 m from equipment surface	<50.00 dB

Emerson UHA1R-0020L Warranty

Standard warranty

Repair or replacement within 3 years

2KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm2
Input neutral conductor size	2.5mm2
Input earth conductor size	2.5mm2
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm2
Output neutral conductor size	2.5mm2
Output earth conductor size	2.5mm2
Output breaker	10A -2P
Battery specifications
External battery breaker	40A-2P
External battery cable size	4mm2
