Delta

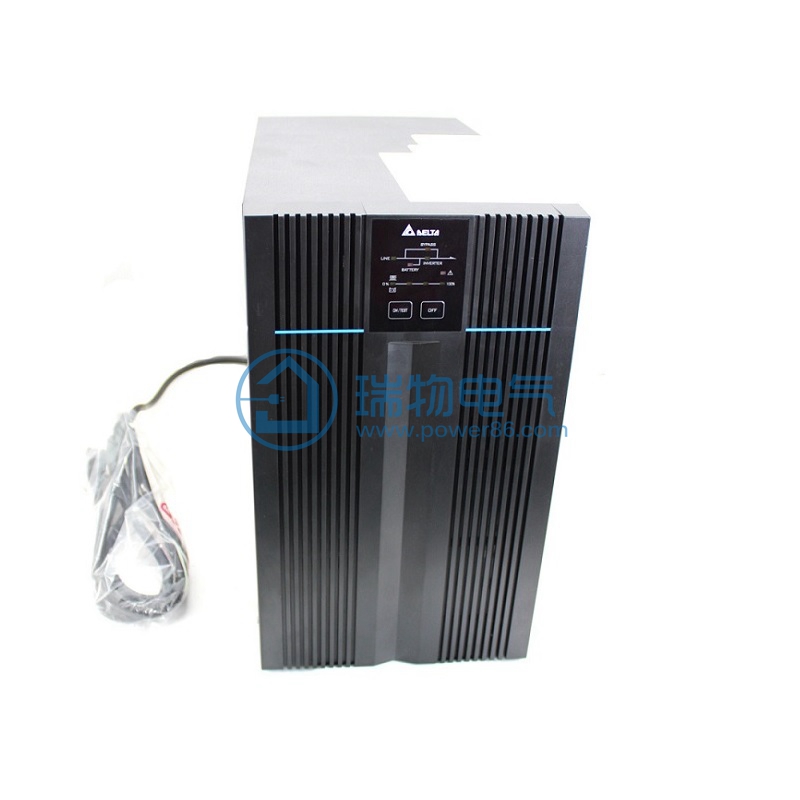

Delta GES-N1KS

Name: Delta GES-N1KS
Brand: Delta
SKU: 1557
Price: 1058 CNY
Availability: InStock

Delta 2KVA Rack/1400W Long Machine Postage in Most Areas

¥1,058.00List price ¥3330.00

Ratings

UPS runtime configurations

View on mobile

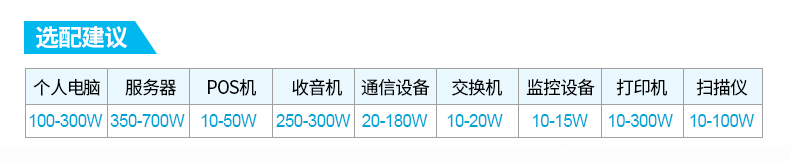

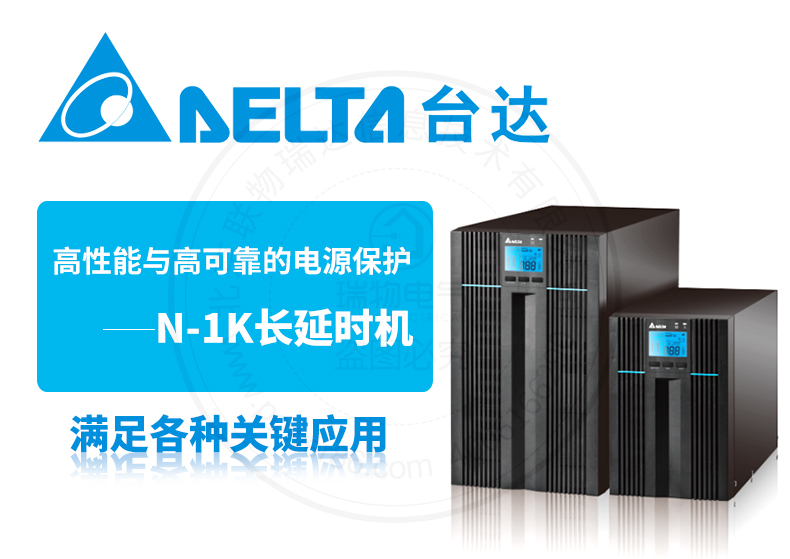

Product introduction https://img.rwyun.com/power86/rs1/ups/285/437/1557/1557_c0.jpg

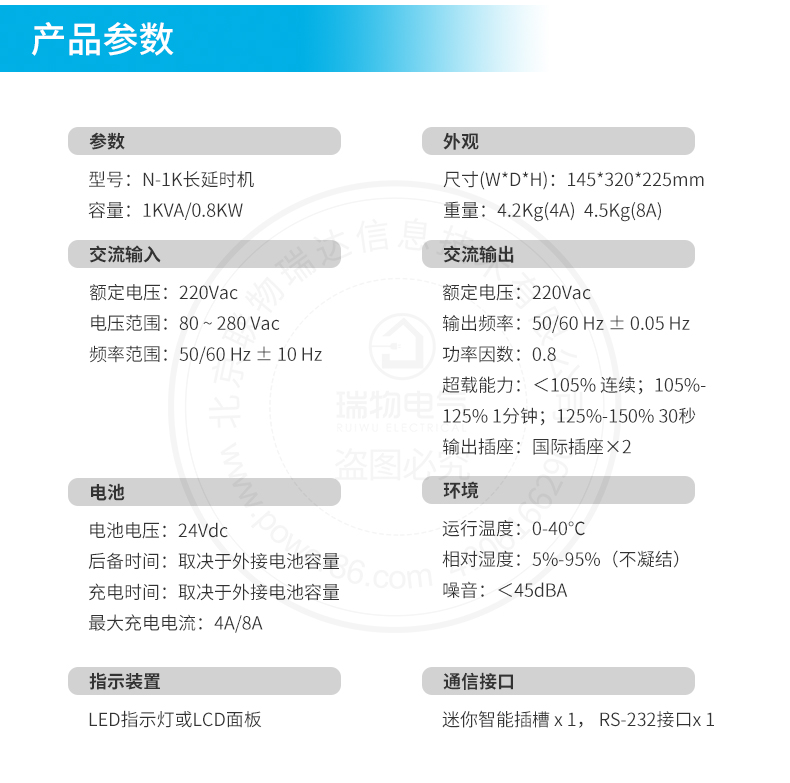

Detailed specifications:

Rated capacity

1KVA/0.8KW

Rated voltage	220Vac
Voltage range	80~280 Vac (80-174Vac load from 50%-100, increasing with voltage)
Frequency range	50/60 Hz ± 10 Hz
Power factor	> 0.99 (full load)
current harmonic distortion rate	≤3%

Power factor	0.8
Rated voltage	220Vac
Output frequency	50/60 Hz ± 0.05 Hz
voltage harmonic distortion rate	<3% (linear load)
Overload capacity	<105%: continuous; <105% to 125%:1 minute; 125% to 150%:30 seconds
Current peak number	3:1
Output socket	National standard sockets * 2
Efficiency (online mode)	91%

Battery voltage	24Vdc
Backup time	----
Charging time	Depends on external battery capacity
Maximum charging current	4A/8A

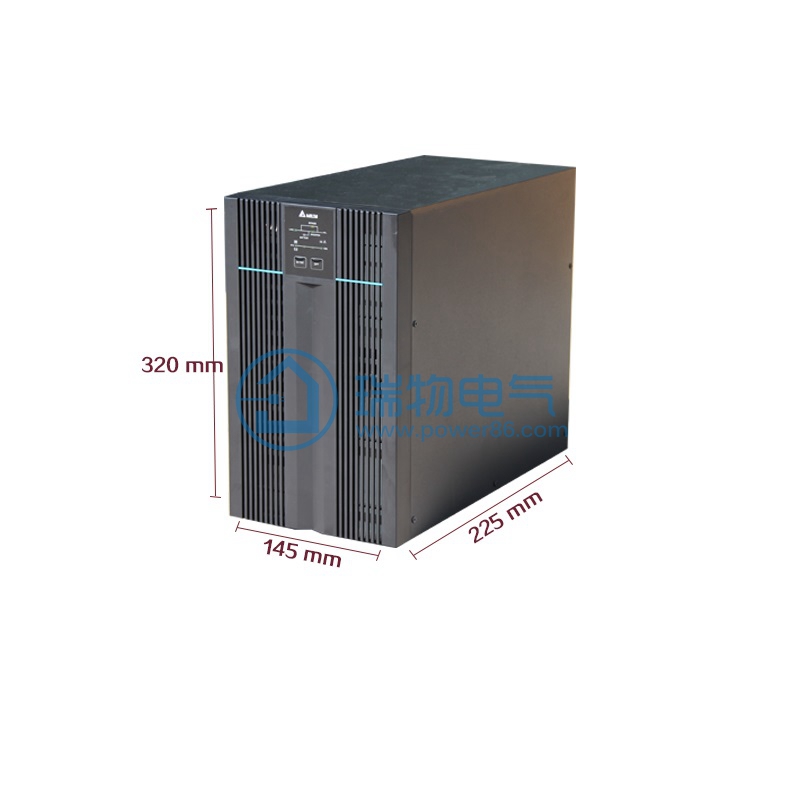

Appearance (width * depth * height)	145320225
Net weight	4.2KG/4.5KG

1KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	32A-2P
External battery cable size	4mm²
