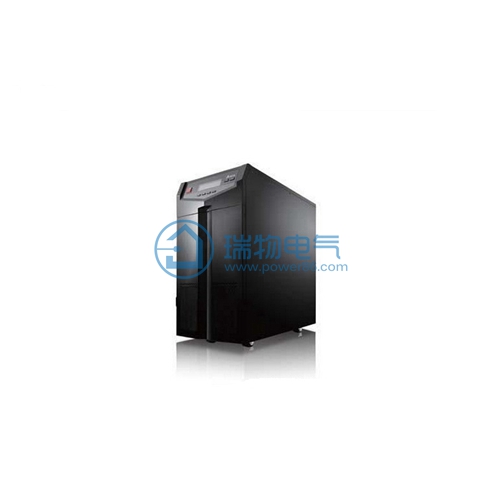

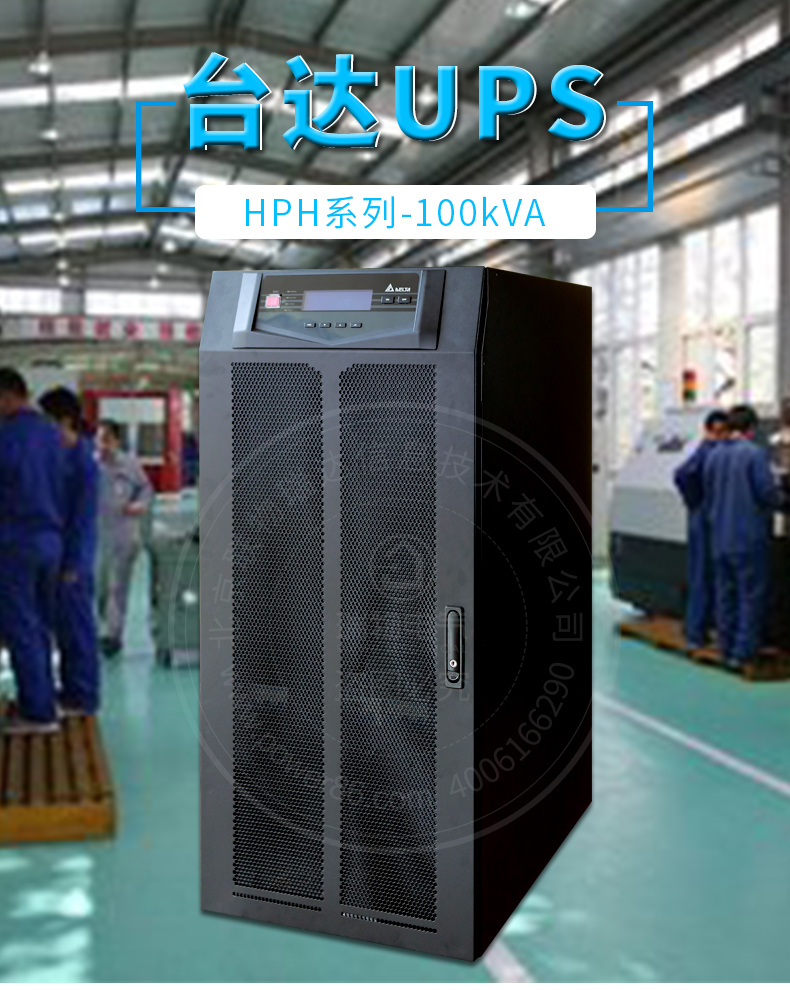

Delta GES-HPH-100K

Three-in-three-out 100K online high-frequency pilot can issue VAT invoices by postage in most areas.

¥84,456.00List price ¥229500.00

Rated power: 100KW (kilowatt)
Rated capacity: 100KVA (KVA)
Input / output: Three in and three out (380V:380V)
External battery voltage: (long machine) 384V (DC)
Blocks per string: 32 blocks
Net weight: 312.00kg (kg)
Gross weight: 343.20kg (kg)

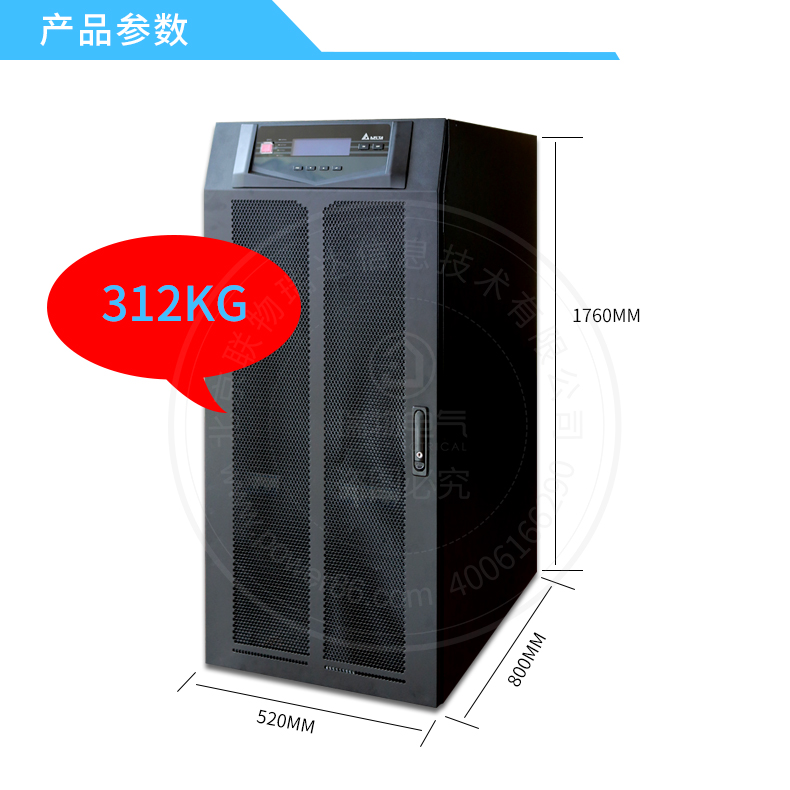

Dimensions (L×W×H): 800*520*1760mm (mm) U

Ratings

20KVA 30KVA 40KVA 60KVA 80KVA 100KVA 120KVA

UPS runtime configurations

30 minutes 1 hour 2 hours 4 hours 8 hours

View on mobile

Product introduction https://img.rwyun.com/power86/rs1/ups/285/434/4581/4581_c0.jpg

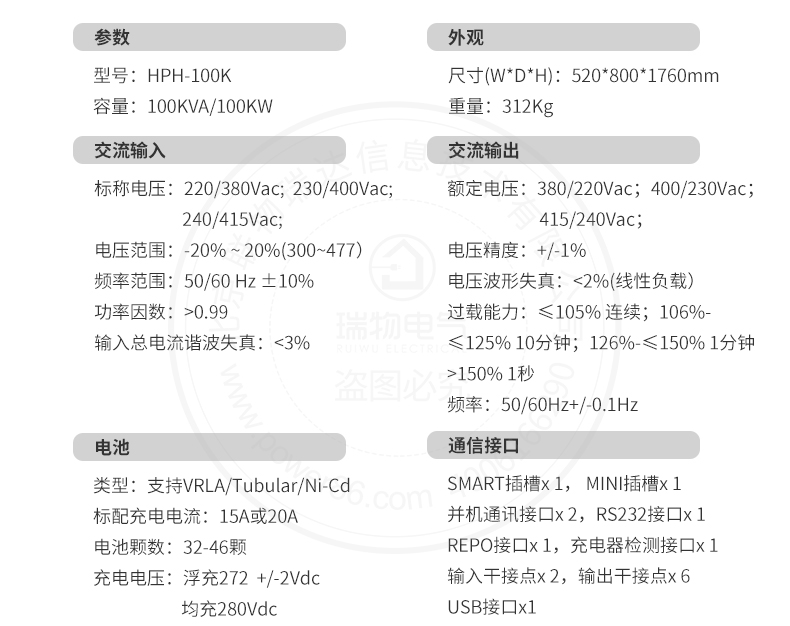

Detailed specifications:

Delta GES-HPH-100K specifications

Rated power

100KVA/100KW

Delta GES-HPH-100K input parameters

Nominal voltage	380/220 Vac；400/230 Vac；415/240 Vac
Voltage range	242 ~ 300Vac(70% ~ 100 load);300~477 Vac(100 load)
Frequency	50/60Hz±10%
Power factor	＞0.99

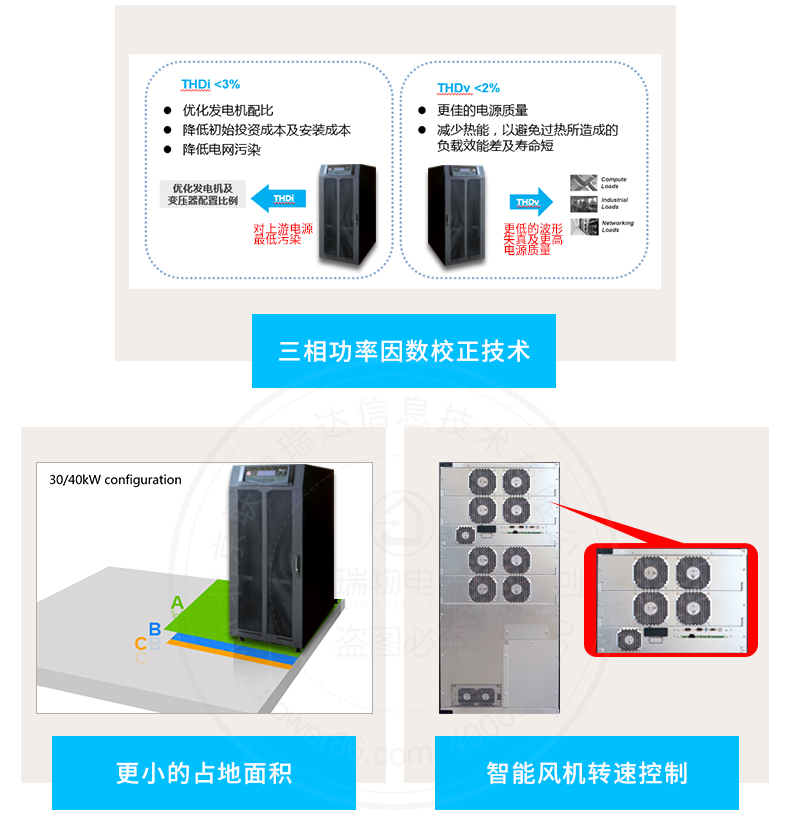

Input Total Current Harmonic Distortion	＜3%

Delta GES-HPH-100K output parameters

Voltage	380/220 Vac；400/230 Vac；415/240 Vac
Voltage accuracy	+/-1%
voltage waveform distortion	<1.5%(linear load)
Frequency	50/60 Hz +/-0.1Hz
Overload capacity	≤105%: Continuous; 106%–≤125%: 10 minutes; 126%–≤150%: 1 minute; >150%: 1 second

Delta GES-HPH-100K Battery and Running Time

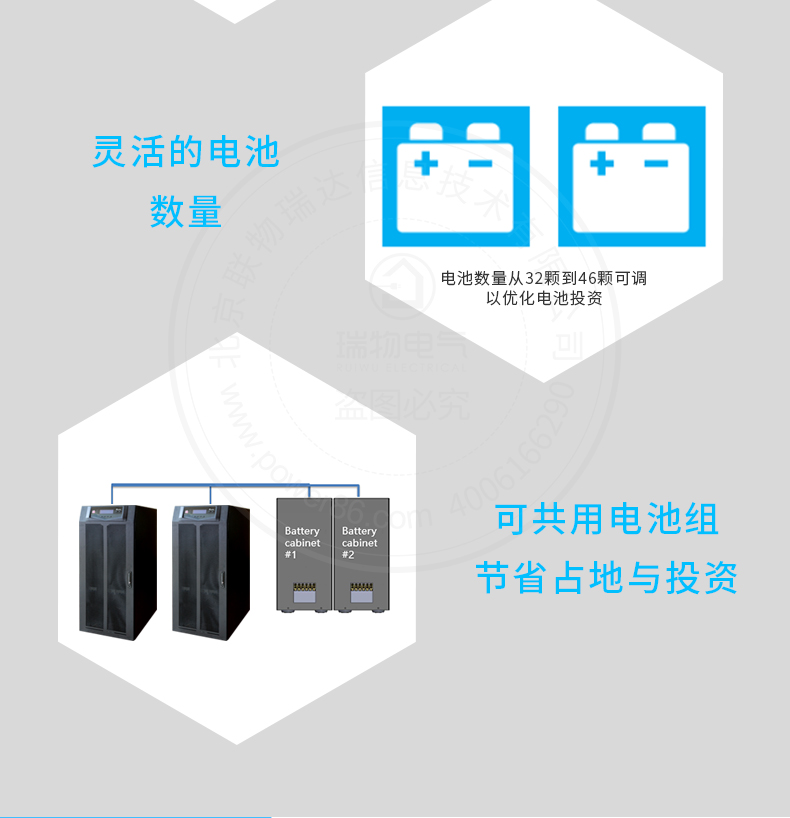

Number of batteries	32-46

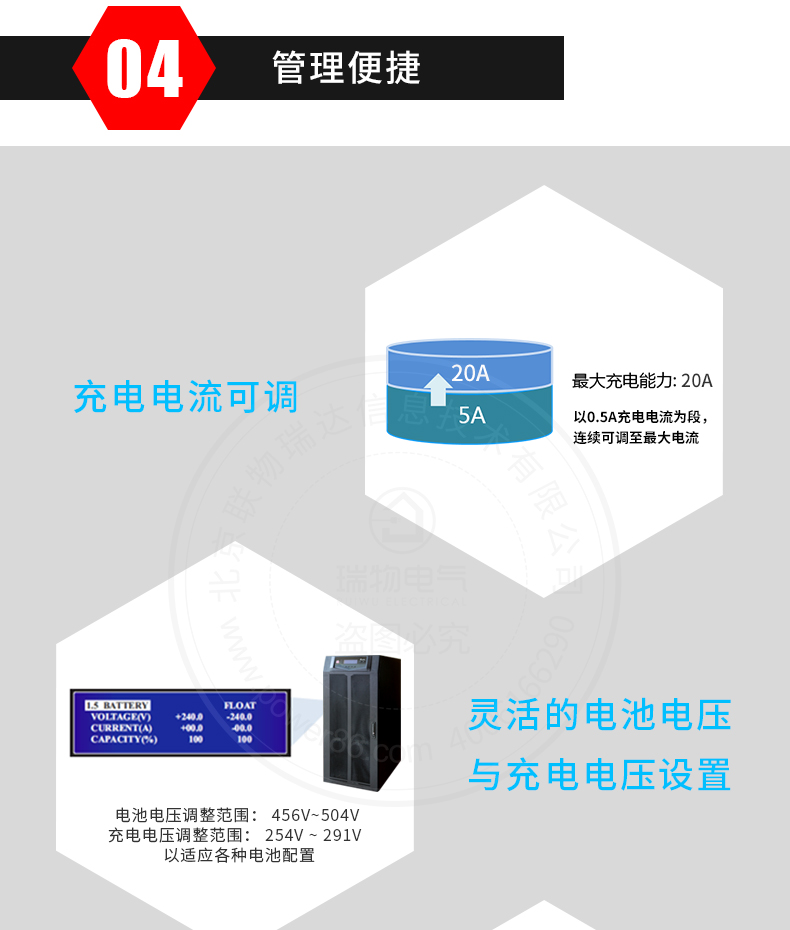

Charging current	15A/20A
Charging voltage	Float 272 /-2 Vdc, fast charge 280Vdc

Delta GES-HPH-100K communication interface

Interface

1 SMART slot, 1 MINI slot, 2 parallel communication ports, 1 RS232 port, 1 REPO port, 1 charger monitoring port, 2 input dry contacts, 6 output dry contacts

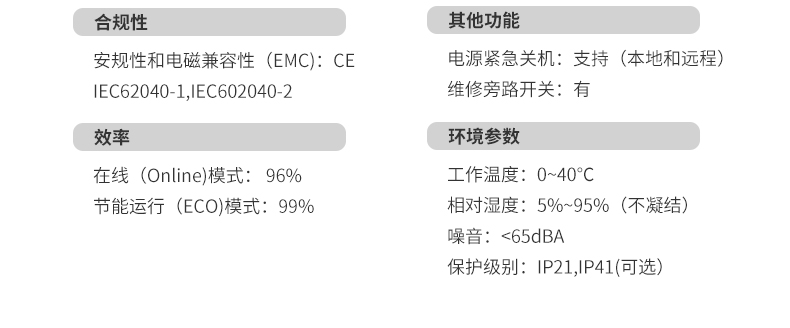

Delta GES-HPH-100K Compliance

Safety and electromagnetic compatibility

CE,IEC62040-1;IEC602040-2

Other functions of Delta GES-HPH-100K

Emergency Shutdown	Support (local and remote)

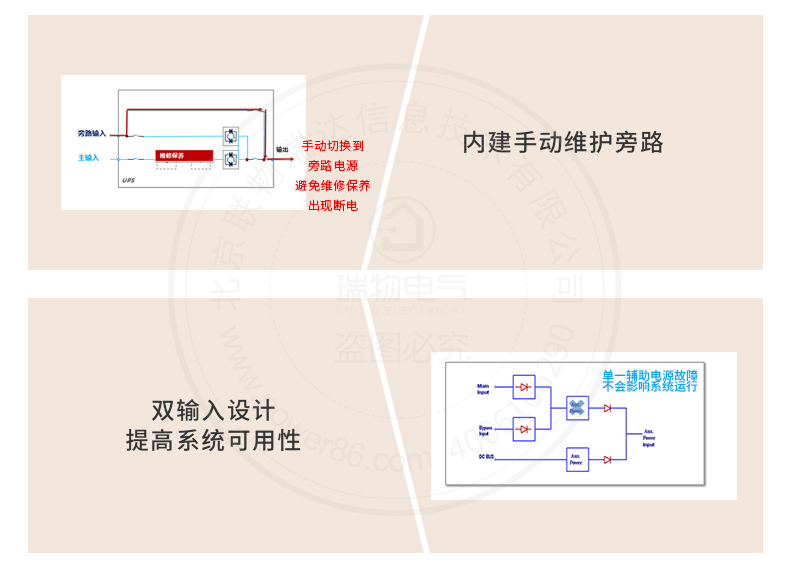

Maintenance Bypass Switch	have

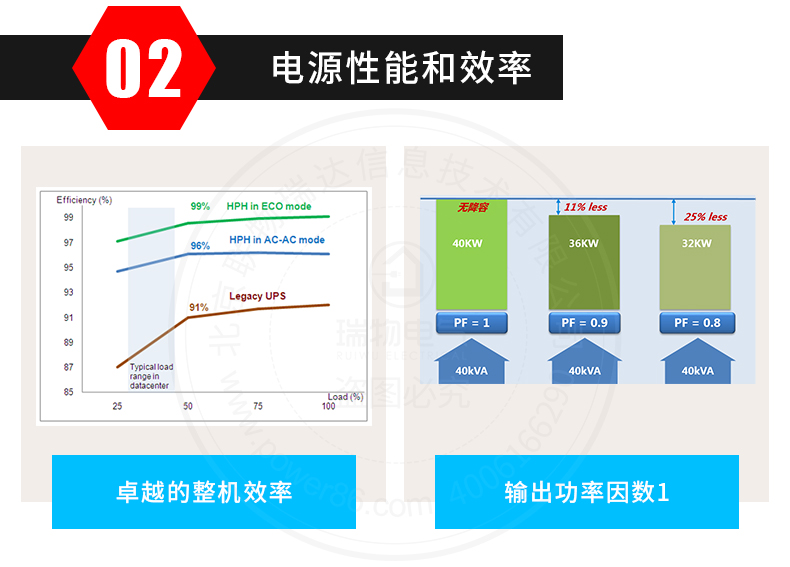

Delta GES-HPH-100K Efficiency

Online mode	96%
ECO energy-saving operation economic mode	99%

Delta GES-HPH-100K Environment

Operating environment	0 - 40 °C
Operating relative humidity	5- 95% (non-condensing)
Audible noise 1 m from equipment surface	＜55dBA
Protection level	IP21,IP41 (optional)

Delta GES-HPH-100K physical indicators

Dimensions （WDH）	5208001760mm
Net weight	66.5KG

100KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	120mm²
Input neutral conductor size	120mm²
Input earth conductor size	50mm²
Input breaker	250A -Input AC 380V: Output AC 380V
Output parameter
Output voltage	380V AC
Output conductor size	95mm²
Output neutral conductor size	95mm²
Output earth conductor size	50mm²
Output breaker	200A -Input AC 380V: Output AC 380V
Battery specifications
External battery breaker	200A-Input AC 380V: Output AC 380V
External battery cable size	95mm²
