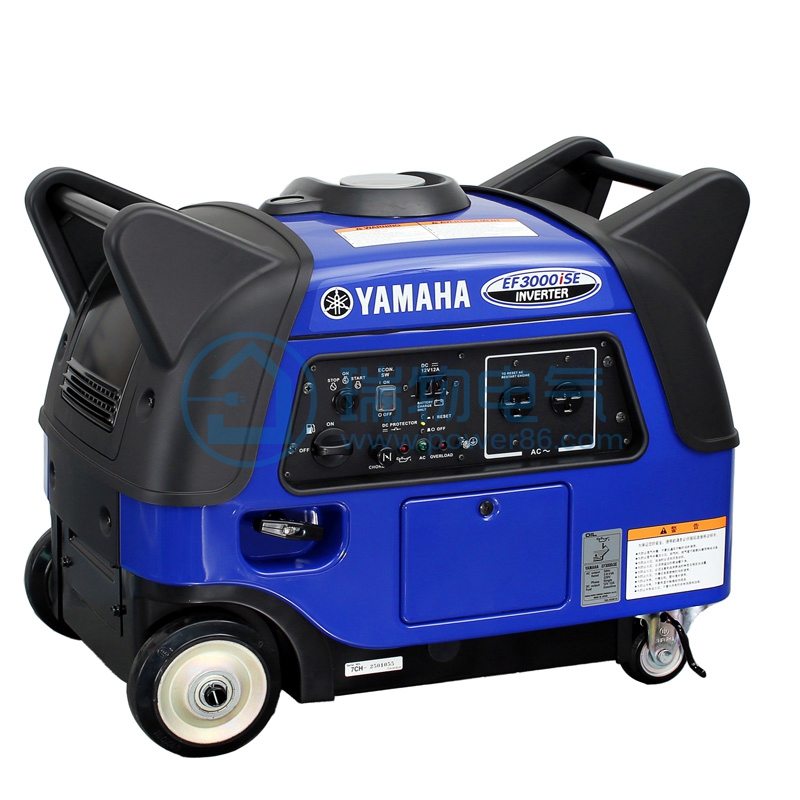

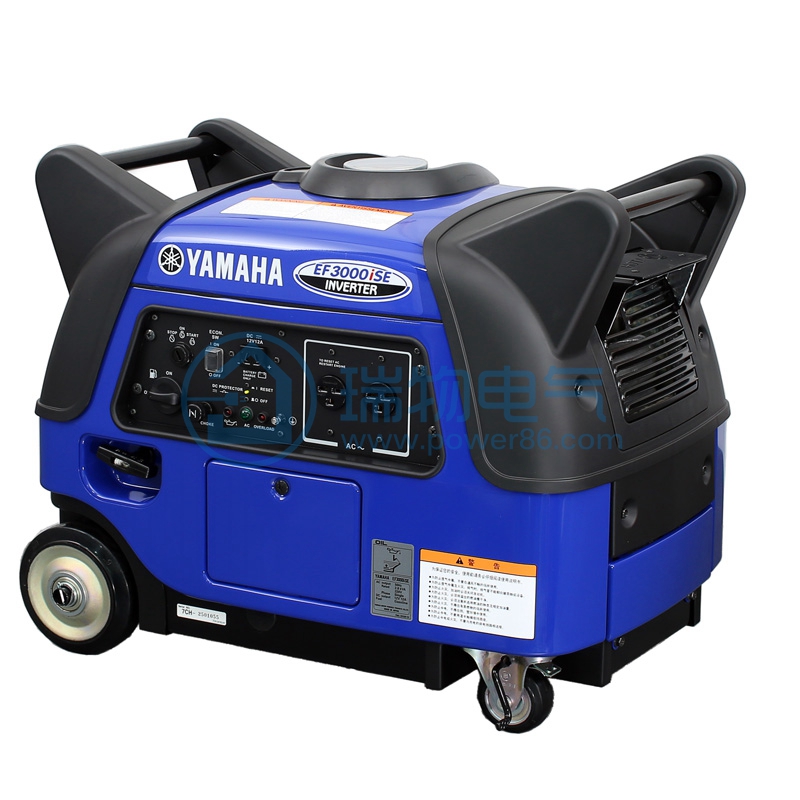

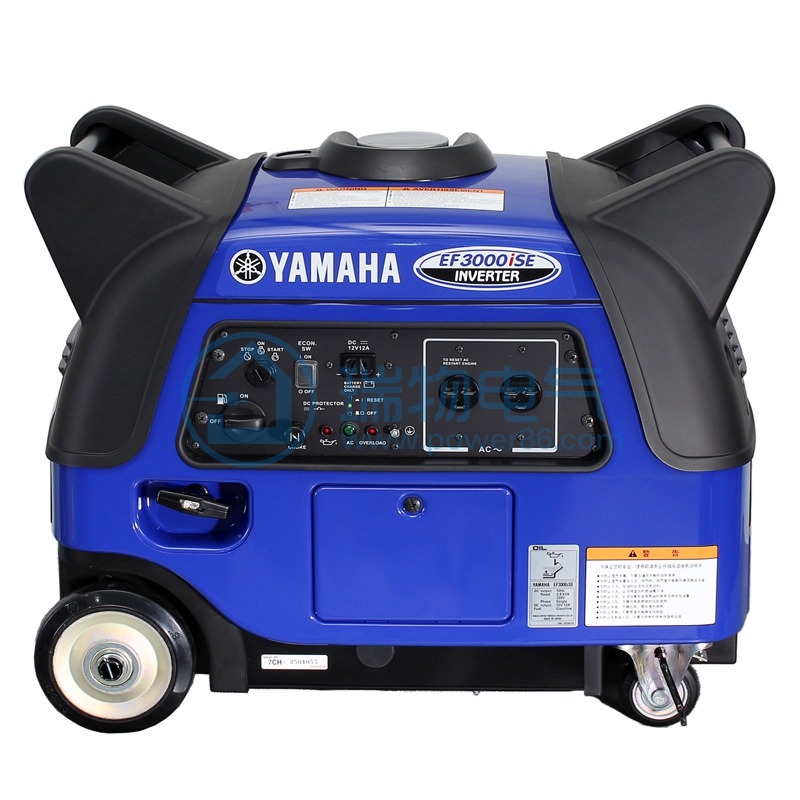

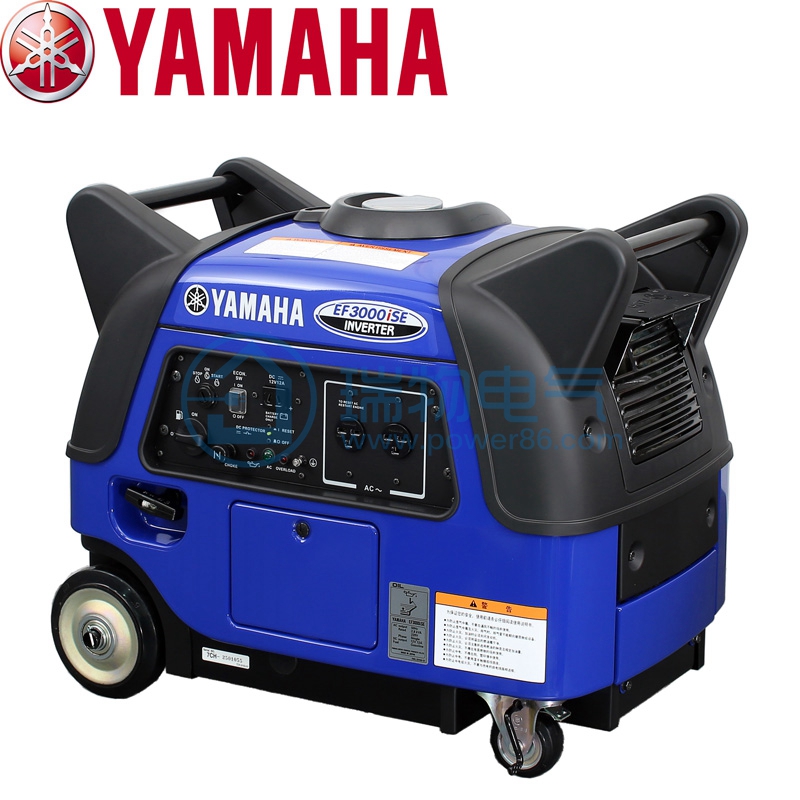

Yamaha EF3000ISE

Motor type

Variable-frequency generator

Phase number

Single-phase

Power factor

1

Rated voltage (V)

220

Rated current (A)

12.7

Frequency (Hz)

50

Maximum output (KVA)

3

Rated output (KVA)

2.8

Rated output (DC)(W)

144

Rated voltage (DC)(V)

12

Rated current (DC)(A)

12

Waveform distortion rate

Less than2.5%

Type/Model

4stroke gasoline air coolingOHV

Displacement (cm³)

171

Rated power (kW/rpm)

3.5/3800

AC overload protection

Electronic circuit breaker

DC overload protection

No fuse circuit breaker (NFB）

Oil alarm indicator lamp

Output indicator light

Overload indicator light

Energy-saving idle device

Fuel gauge

Fuel

Unleaded gasoline

Dimensions (length×Wide×High)(mm)

680×445×555

Net weight (kg)

67

Starting method

Hand Start/Electric starting

Fuel tank capacity(l)

13

Lube oil capacity(l)

0.6

Noise level(dBA/7m)

51～57

Continuous operation time
(no load to rated load)(Hr)

31.0～8.0

Battery capacity

12V-10AH
