Santak

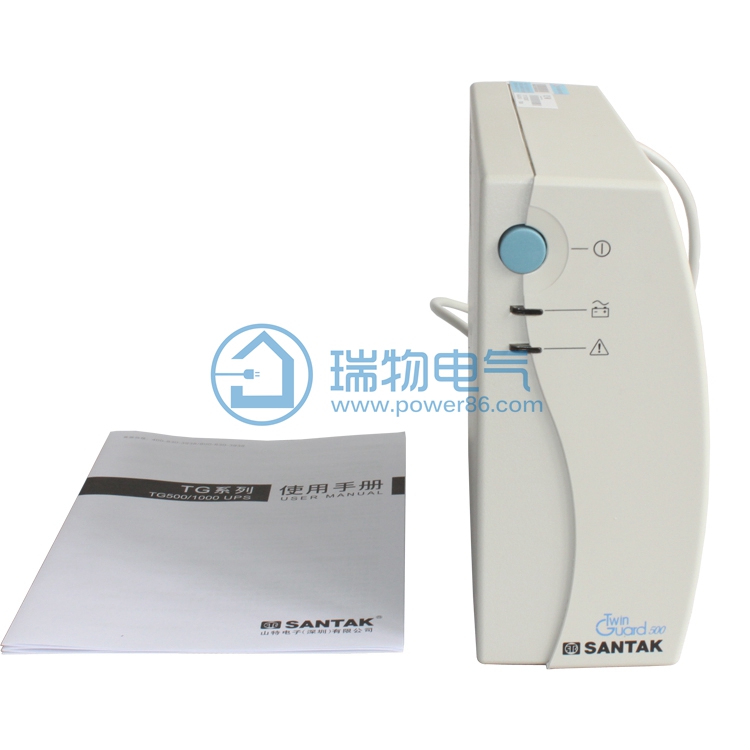

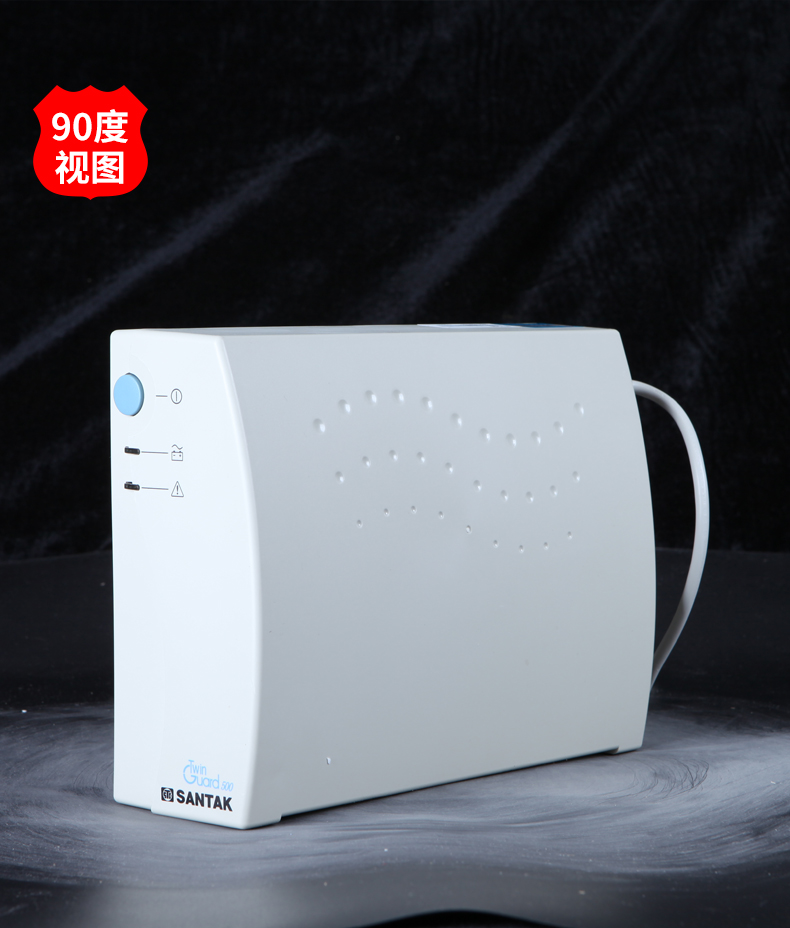

Santak TG500

Name: Santak TG500
Brand: Santak
SKU: 50
Price: 220.77 CNY
Availability: InStock

Single-in and single-out built-in battery labeling machine offline backup type most areas include tax

¥220.77

Ratings

View on mobile

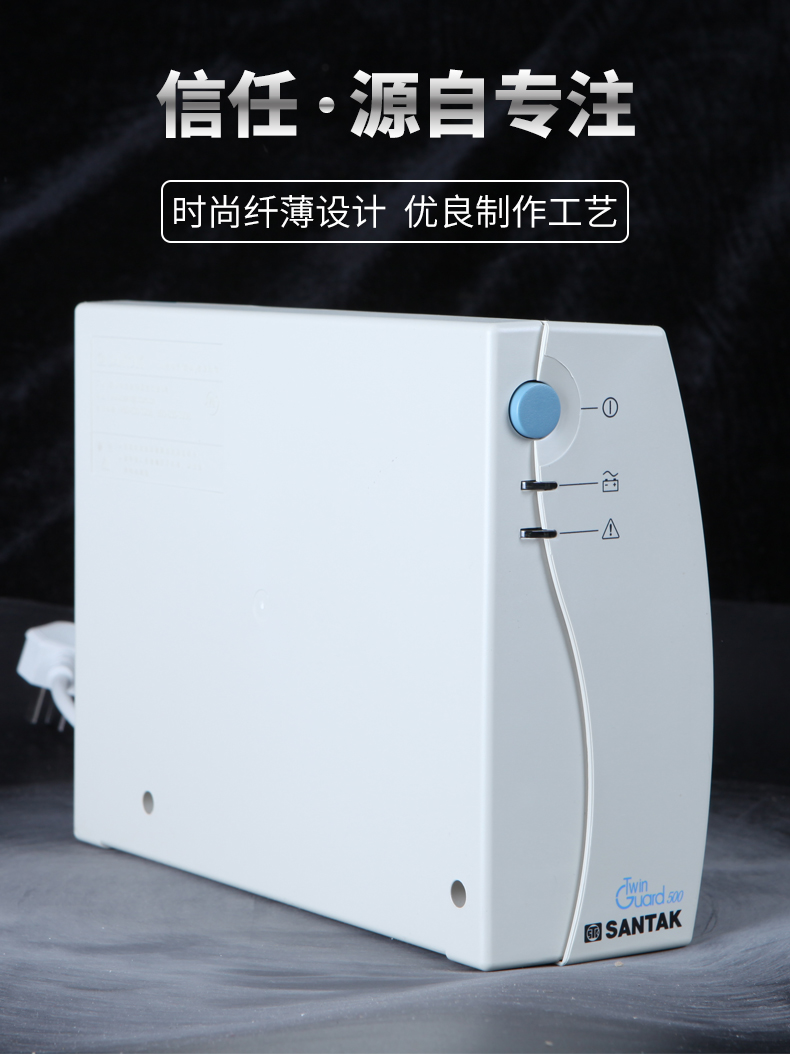

Product introduction https://img.rwyun.com/power86/rs1/ups/10/122/50/50_c0.jpg

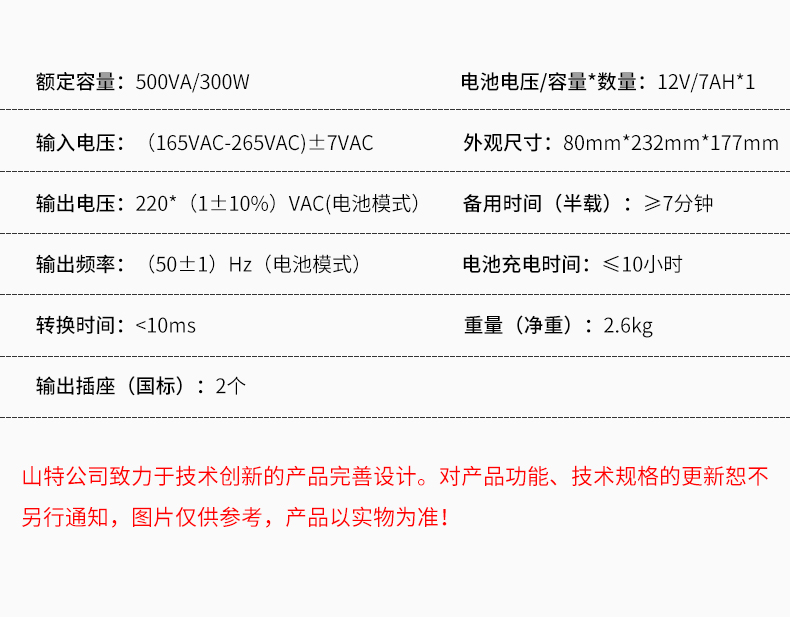

Detailed specifications:

Output power Capacity	300W/500 VA
Rated output voltage	198~242VAC
Output frequency	Synchronization with mains 50 Hz +/- 0.5% Hz
UPS Transfer time	0-10ms
Output waveform	Square wave
Overload capacity	47 sec load> 110%, 25 sec load> 150%,300 ms load> 200%

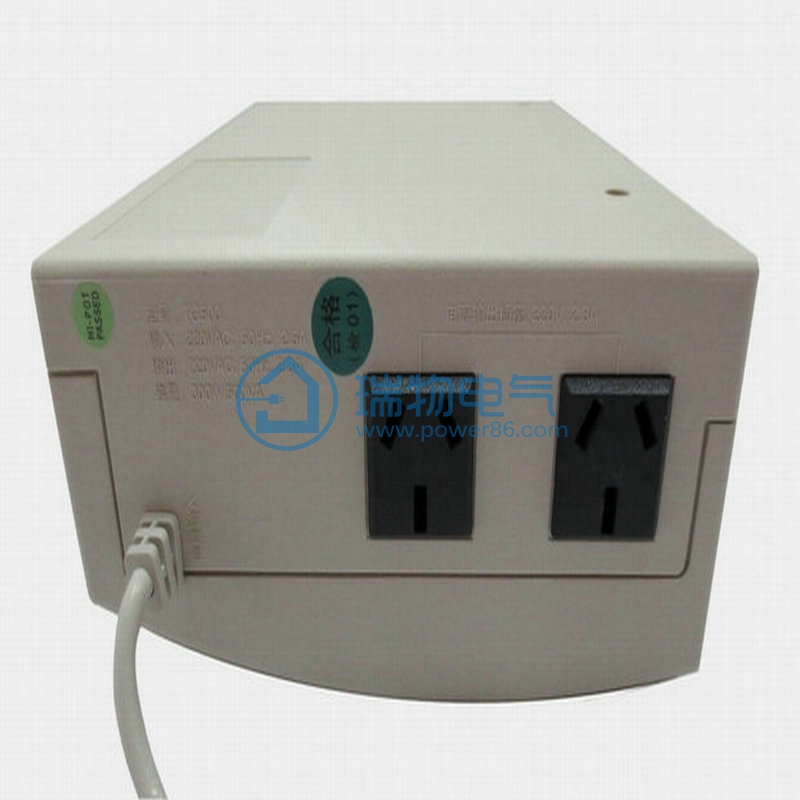

Output form x quantity	National standard: 2

Santak TG500 input

Interface Port	--
Control Panel	LED
audible alarm	Mains power outage alarm once 4 seconds: special low battery alarm once per second

Battery Model	Maintenance-free sealed lead-acid battery
Typical charging time	8 hours
External battery specifications	DC12V
Backup time	Half load: ≥7 minutes

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-5 - 45 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Audible noise 1 m from equipment surface	45.00 dBA

Standard warranty	Maintenance within 3 years
Compliance with environmental requirements	RoHS,REACH: does not contain SVHC

0.5KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	32A-2P
External battery cable size	4mm²
