Santak

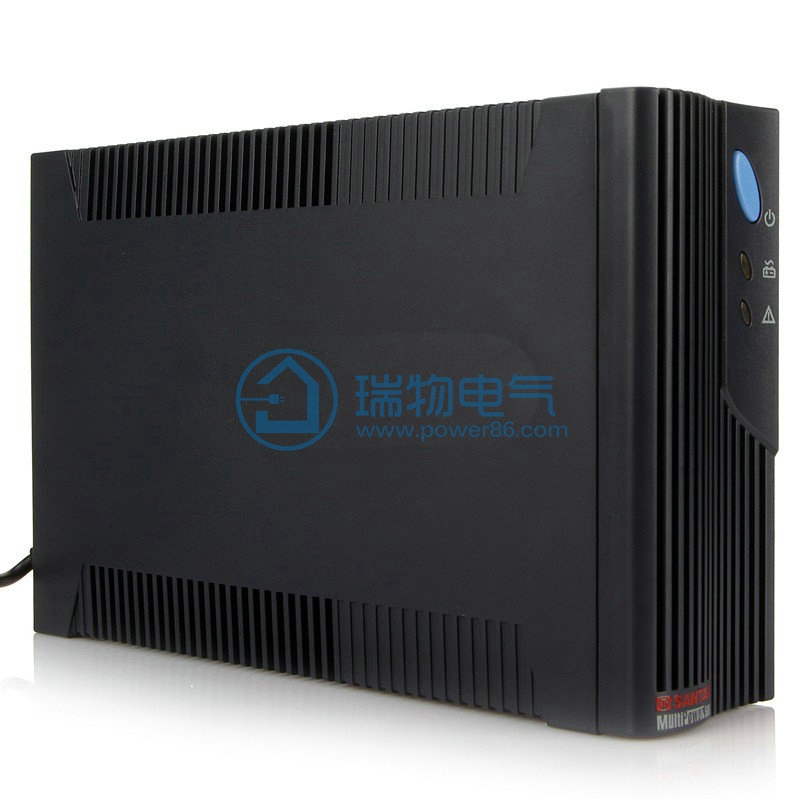

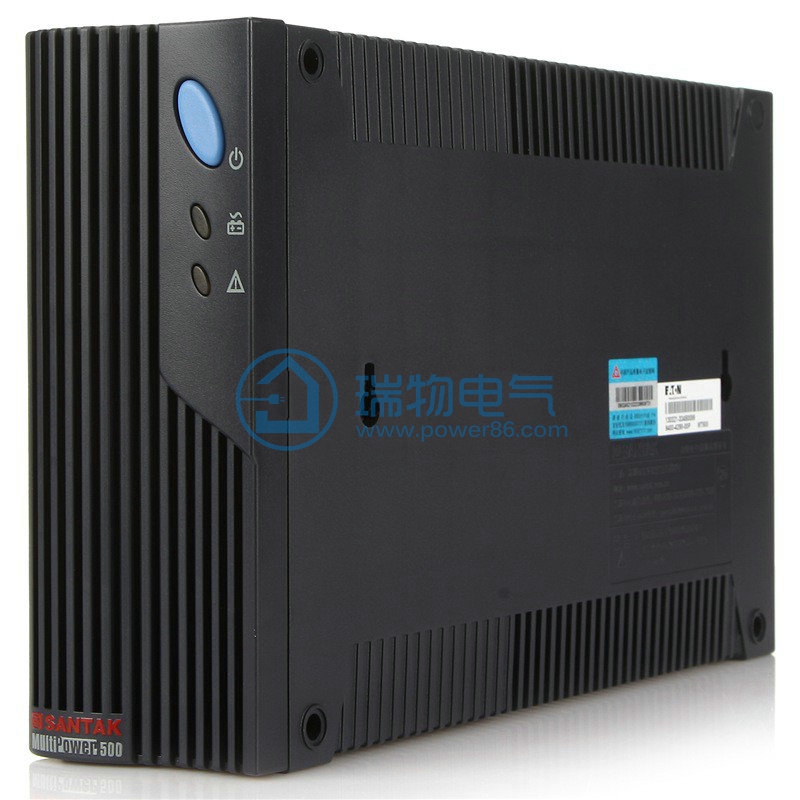

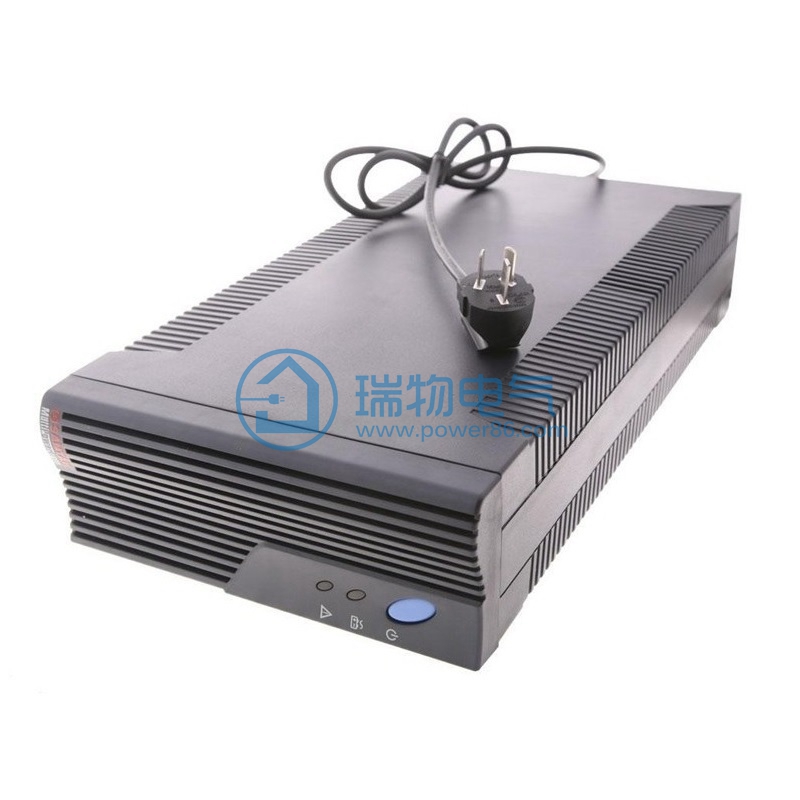

Santak MT500

Name: Santak MT500
Brand: Santak
SKU: 52
Price: 448.47 CNY
Availability: InStock

0.5KVA built-in battery standard machine in most areas including tax

¥448.47

Ratings

View on mobile

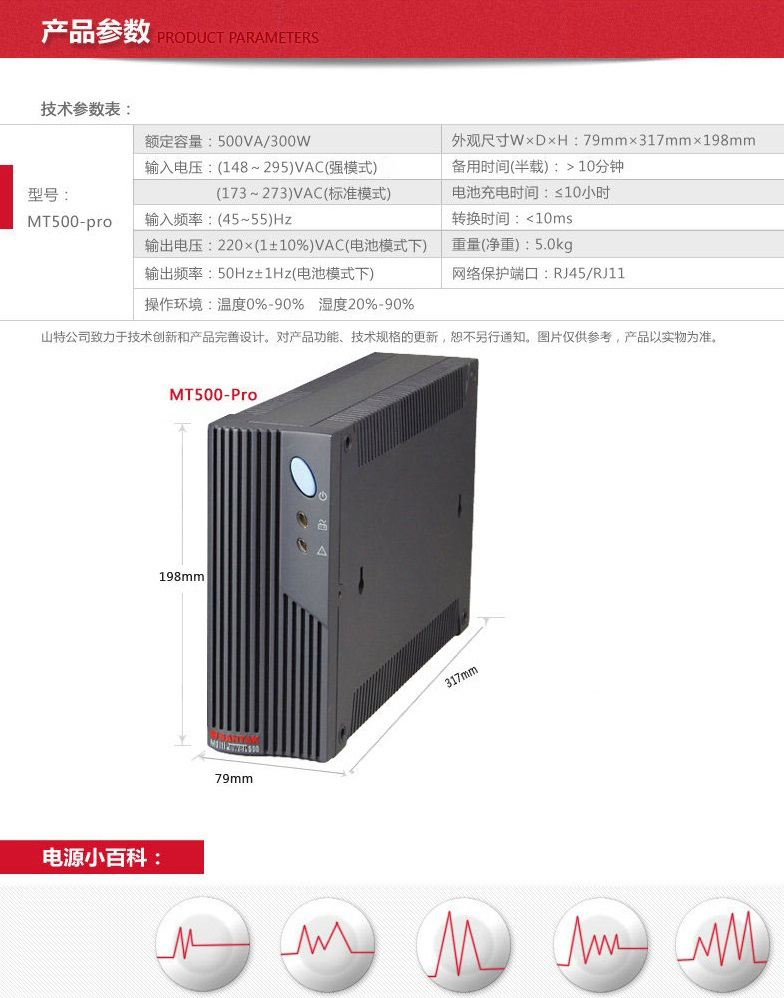

Product introduction https://img.rwyun.com/power86/rs1/ups/10/124/52/52_c0.jpg

Detailed specifications:

Output power Capacity	300W/500 VA
Rated output voltage	220VAC
Output frequency	Synchronization with mains 50 Hz +/- 0.5% Hz
UPS Transfer time	0-10ms
Output waveform	Square wave
Overload capacity	47 sec load> 110%, 25 sec load> 150%,300 ms load> 200%

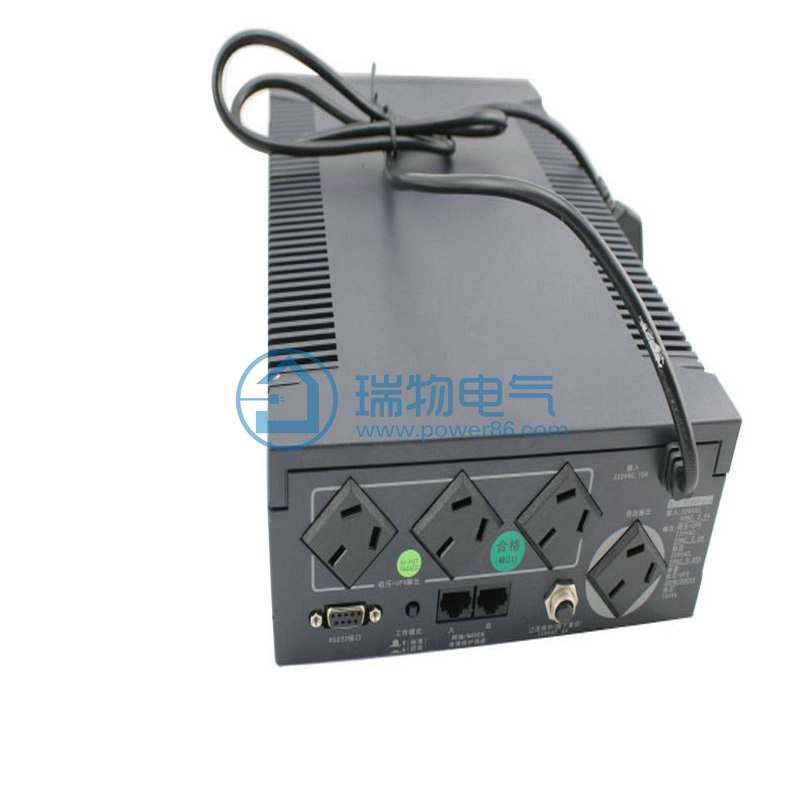

Output form x quantity	GB 3 1

Santak MT500 input

Rated input voltage	148~295 VAC (Super Mode) 173 ~ 273VA (Standard Mode)
Input frequency	(45-55)Hz ±1Hz
UPS power supply Efficiency	85.0%
Input line length	1.83 meters

Interface Port	Optional: USB card, Wedpower card, AS400 card, EMD environmental monitor
Control Panel	LED
audible alarm	Mains power outage alarm once 4 seconds: special low battery alarm once per second

Battery Model	Maintenance-free sealed lead-acid battery
Typical charging time	10 hours
External battery specifications	DC12V

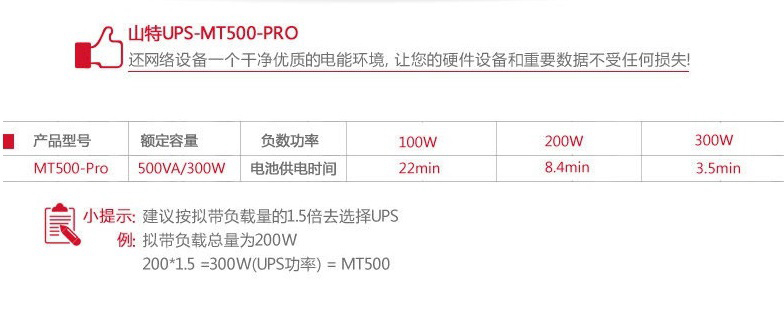

Backup time	10 minutes (half load)

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-5 - 45 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Audible noise 1 m from equipment surface	40.00 dBA

Standard warranty	Maintenance within 3 years
Compliance with environmental requirements	RoHS,REACH: does not contain SVHC

0.5KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	32A-2P
External battery cable size	4mm²
