APC

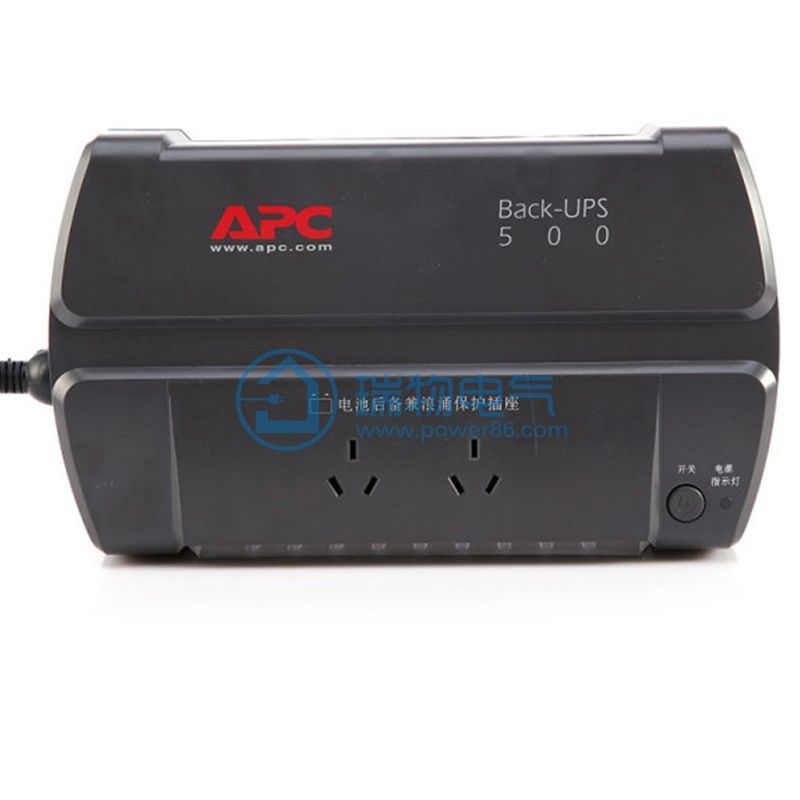

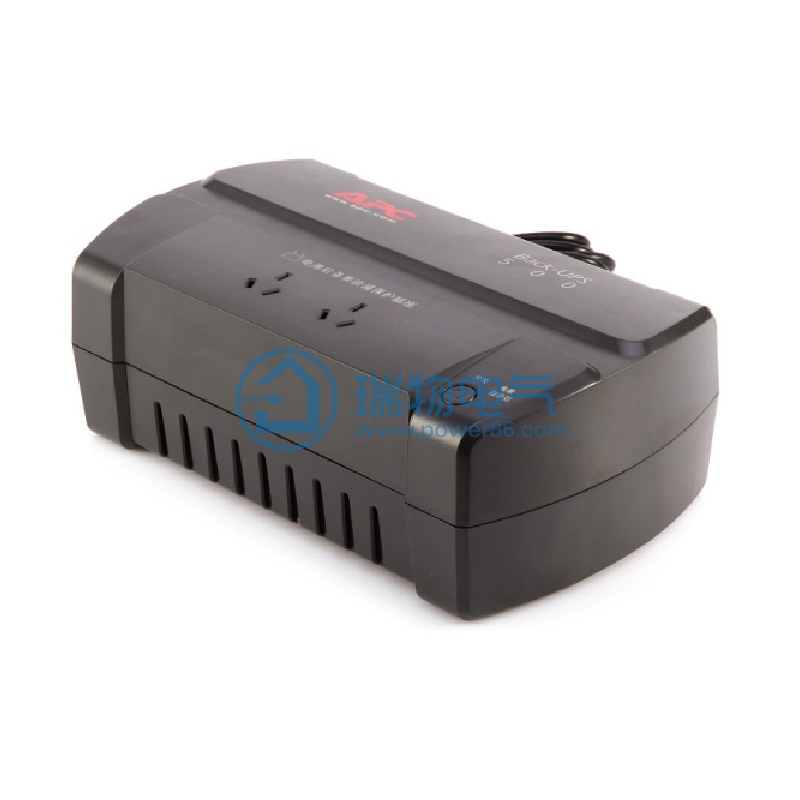

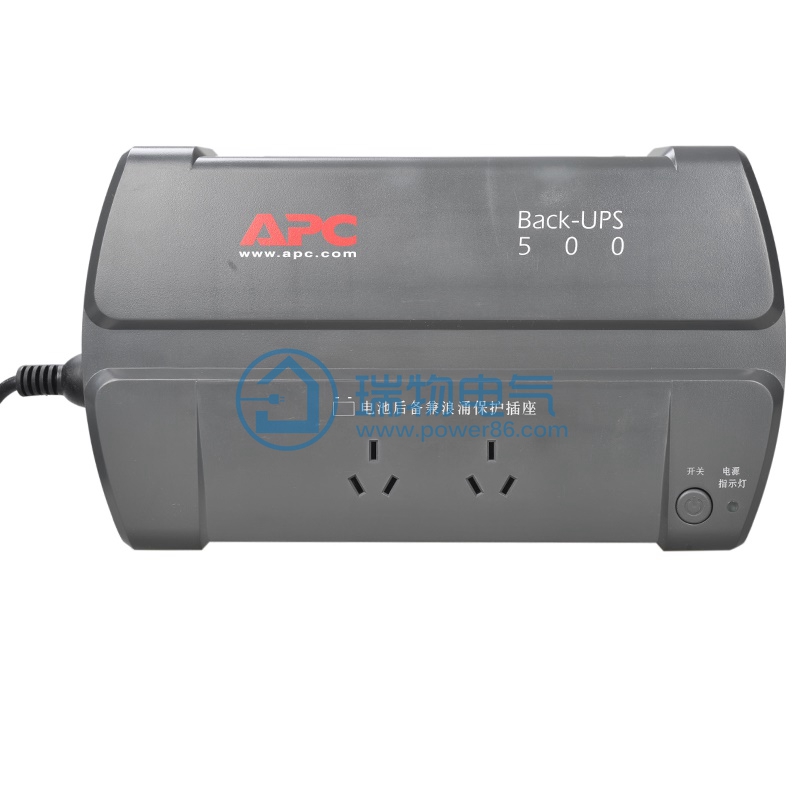

APC BK500-CH

Single-in and single-out 0.5K offline backup standard machine can issue VAT invoices by postage in most areas.

¥334.75

Ratings

View on mobile

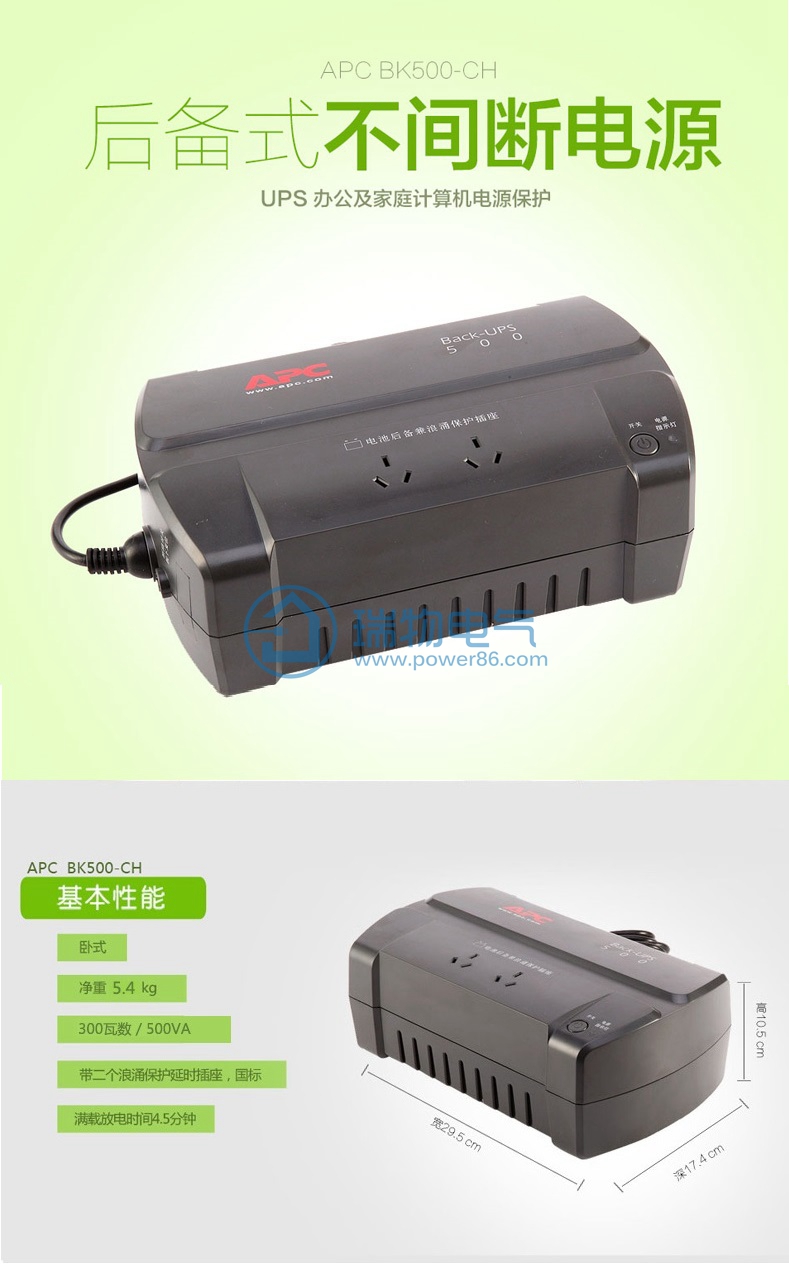

Product introduction https://img.rwyun.com/power86/rs1/ups/14/146/490/490_c0.jpg Series Introduction

Detailed specifications:

Output power Capacity	300 Wattage/500 VA
Maximum Configurable Power	300 Wattage/500 VA
Rated output voltage	230V
Full load efficiency	95.0%
Output frequency (synchronized with main frequency)	47-53Hz(50Hz nominal)
crest factor	3 : 1
Topology	Backup
Waveform Type	sine wave step-by-step approximation
Output Connections	(2) Chinese outlet (battery backup)

APC BK500-CH Input


Control Panel	LED status display "online", "battery on"
audible alarm	Alarm when mains power failure: special low battery alarm overload continuous tone alarm

Battery Model	VRLA
Typical charging time	24 hours
Replaceable battery pack	RBC2
Red blood cell™Quantity	1
Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output.

Surge suppression energy

180 joules

Operating environment	0 - 40 °C
Operating relative humidity	10 - 90%
Operating height	0-999.9 m
Storage temperature	-15 - 45 °C
Storage Relative Humidity	5 - 95%
Storage height	0-4500 m
Audible noise 1 m from equipment surface	40.00 dBA


Standard warranty	Repair or replacement within 2 years
Compliance with environmental requirements	RoHS 7b Exemption, China RoHS,REACH: SVHC not included

0.5KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	32A-2P
External battery cable size	4mm²
