APC SURT20KUXICH

VAT invoice can be issued for postage in most areas of 20K online high-frequency machine

¥36,861.44

Rated power: 16KW (kW)
Rated capacity: 20KVA (KVA)
Input / output: Single in and single out (220V:220V)
External battery voltage: (long machine) 384V (DC)
Blocks per string: 32 blocks
Net weight: 68.00kg (kg)
Gross weight: 74.80kg (kg)
Dimensions (L×W×H): 263*432*773mm (mm) U

Ratings

2KVA (standard)2KVA 1KVA (standard)1KVA 10KVA 10KVA (standard)3KVA (standard)3KVA 3KVA (standard)5KVA

UPS runtime configurations

30 minutes 1 hour 2 hours 4 hours 8 hours

Get a quote 400-6611-323

View on mobile

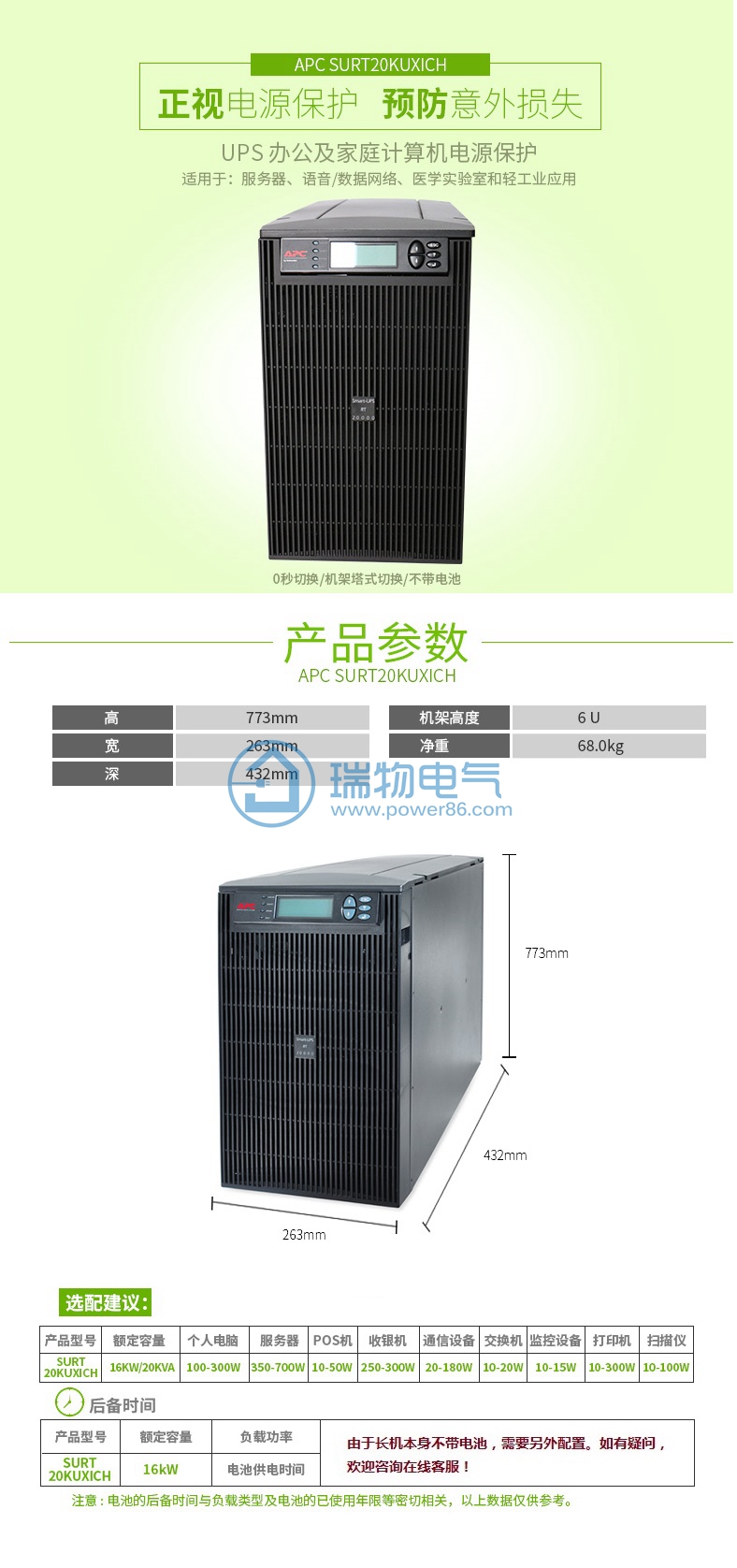

Product introduction https://img.rwyun.com/power86/rs1/ups/14/132/956/956_c0.jpg

Detailed specifications:

APC SURT20KUXICH output

Output power Capacity

16 kW / 20 kVA

Maximum Configurable Power

16 kW / 20 kVA

Rated output voltage

230V

Adjustable range of output voltage

Configurable for 220 or 230V rated output voltage

Full load efficiency

94.0%

Output voltage distortion

Less than 5%

Output frequency (synchronized with main frequency)

50/60Hz /- 3 Hz user adjustable/- 0.1

Other output voltages

220,240

crest factor

3 : 1

Topology

double conversion online

Waveform Type

Sine wave

Output Connections

(1) Hard Wire 3-wire (H N + G)

(1) Hard Wire 5-wire (3PH + N + G)

half-load efficiency

94%

Bypass

Built-in static bypass, internal bypass (automatic manual), external splitter optional

APC SURT20KUXICH Input

Rated input voltage

230V

Input frequency

40 - 70 Hz (automatic sensing)

Input terminal type

Hard Wire 3 wire (1PH+N+G)
Hard Wire 5-wire (3PH + N + G)

Operating voltage range

160 - 280V

Adjustable Input Voltage Range

100 - 280V

Maximum input current

115A

Input breaker capacity

125.0 A

APC SURT20KUXICH Communications and Management

Interface Port	DB-9 RS-232,RJ-45 10/100 Ethernet interface, smart slot
Pre-installed SmartSlot™card	AP9631CH
Control Panel	Multi-function LCD status management console.
Emergency Shutdown	Yes
audible alarm	Audible and visible alarms prioritized by severity

APC SURT20KUXICH Battery and Runtime

Battery Model

No internal battery-using external battery system

Runtime Chart

Curve	Part Number(s)
A	SURT20KUXICH + (1)SURT192RMXLBP2
B	SURT20KUXICH + (2)SURT192RMXLBP2
C	SURT20KUXICH + (3)SURT192RMXLBP2
D	SURT20KUXICH + (4)SURT192RMXLBP2
E	SURT20KUXICH + (5)SURT192RMXLBP2

Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output.

APC SURT20KUXICH Surge Protection and Filtering

Filter

Multi-stage noise filter, according to UL1449 standard

APC SURT20KUXICH Physical Indicators

High	263.00 mm
Wide	432.00 mm
deep	773.00 mm
Equipment installation effective height	6U
Net weight	68.00 KG
Transport weight	90.50 KG
Transportation height	622.00 mm
Transport width	610.00 mm
Transport length	1003.00 mm
Colour	Black
Quantity of products on each transport pallet	1.00

APC SURT20KUXICH Environment

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-15 - 45 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Online running heat dissipation	3487.00 BTU/hr
Audible noise 1 m from equipment surface	50.00 dBA

APC SURT20KUXICH compliance

Management body certification	EN/IEC 62040-2,EN/IEC 62040-1-1
Standard warranty	Repair or replacement within 2 years

20KVA input AC 380V: output AC 220V

Input parameter
Input voltage	380V AC
Input live conductor size	4mm²
Input neutral conductor size	10mm²
Input earth conductor size	4mm²
Input breaker	50A -3P
Output parameter
Output voltage	380V AC
Output conductor size	4mm²
Output neutral conductor size	10mm²
Output earth conductor size	4mm²
Output breaker	50A -3P
Battery specifications
External battery breaker	125A-3P
External battery cable size	4mm²

20KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	4mm²
Input neutral conductor size	10mm²
Input earth conductor size	4mm²
Input breaker	50A -3P
Output parameter
Output voltage	380V AC
Output conductor size	4mm²
Output neutral conductor size	10mm²
Output earth conductor size	4mm²
Output breaker	50A -3P
Battery specifications
External battery breaker	125A-3P
External battery cable size	4mm²
