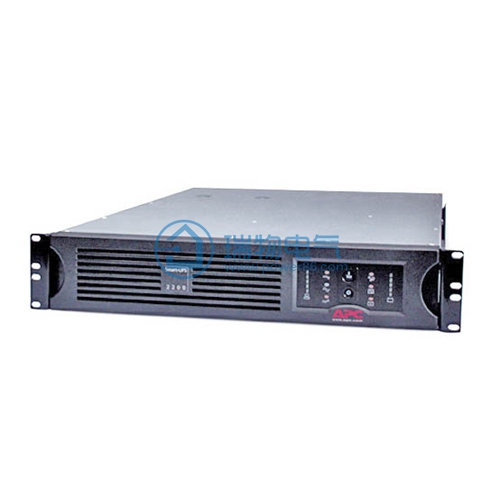

APC SUA3000R2ICH

Most areas of the 3K standard machine can issue VAT invoices by postage.

¥5,798.32

Ratings

View on mobile

Series Introduction

Detailed specifications:

Output power Capacity

2700 Wattage/3000 VA

Maximum Configurable Power

2700 Wattage/3000 VA

Rated output voltage

230V

Adjustable range of output voltage

Can be set to 220, 230 or 240 output voltage

Output voltage distortion

Less than 5% at full load

Output frequency (synchronized with main frequency)

47-53Hz(50Hz nominal),57-63Hz(60Hz nominal)

Topology

Line-interactive

Waveform Type

Sine wave

Output Connections

(8) IEC 320 C13

(1) IEC 320 C19

(2) IEC Jumpers

APC SUA3000R2ICH Input

Rated input voltage	230V
Input frequency	50/60Hz /- 3Hz (automatic adaptation)
Input terminal type	IEC-320 C20
Schuko CEE 7 / EU1-16P
British BS1363A
Operating voltage range	160 - 285V
Adjustable Input Voltage Range	151 - 302V

Interface Port	DB-9 RS-232,SmartSlot slot, USB
Number of smart slots available	1
Control Panel	LED display online operation, battery operation, overload and battery need to be replaced
Emergency Shutdown	Yes
audible alarm	Battery powered alarm, low power alarm

Battery Model	Maintenance-free sealed lead-acid battery (suspended electrolyte): leak-proof
Typical charging time	3 hours
Replaceable battery pack	RBC43
Red blood cell™Quantity	1
Runtime Chart
Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output.

Filter	Multi-stage noise filter, according to UL1449 standard
Surge suppression energy	480 joules

High	89.00 mm
Wide	483.00 mm
deep	660.00 mm
Equipment installation effective height	2U
Net weight	43.64 KG
Transport weight	56.82 KG
Transportation height	254.00 mm
Transport width	622.00 mm
Transport length	980.00 mm
Colour	Black
Quantity of products on each transport pallet	8.00

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-5 - 45 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Online running heat dissipation	400.00 BTU/hr
Audible noise 1 m from equipment surface	47.00 dBA

Compliance with environmental requirements	RoHS 7b Exemption, China RoHS
Standard warranty	Repair or replacement within 2 years, field service available, extended internal authorization optional

3KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm²
Input neutral conductor size	4mm²
Input earth conductor size	4mm²
Input breaker	16A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm²
Output neutral conductor size	4mm²
Output earth conductor size	4mm²
Output breaker	16A -2P
Battery specifications
External battery breaker	63A-2P
External battery cable size	4mm²
