APC

APC SUA1000R2ICH

Built-in battery of 1K standard machine can issue VAT invoice by postage in most areas

¥4,117.87

Ratings

View on mobile

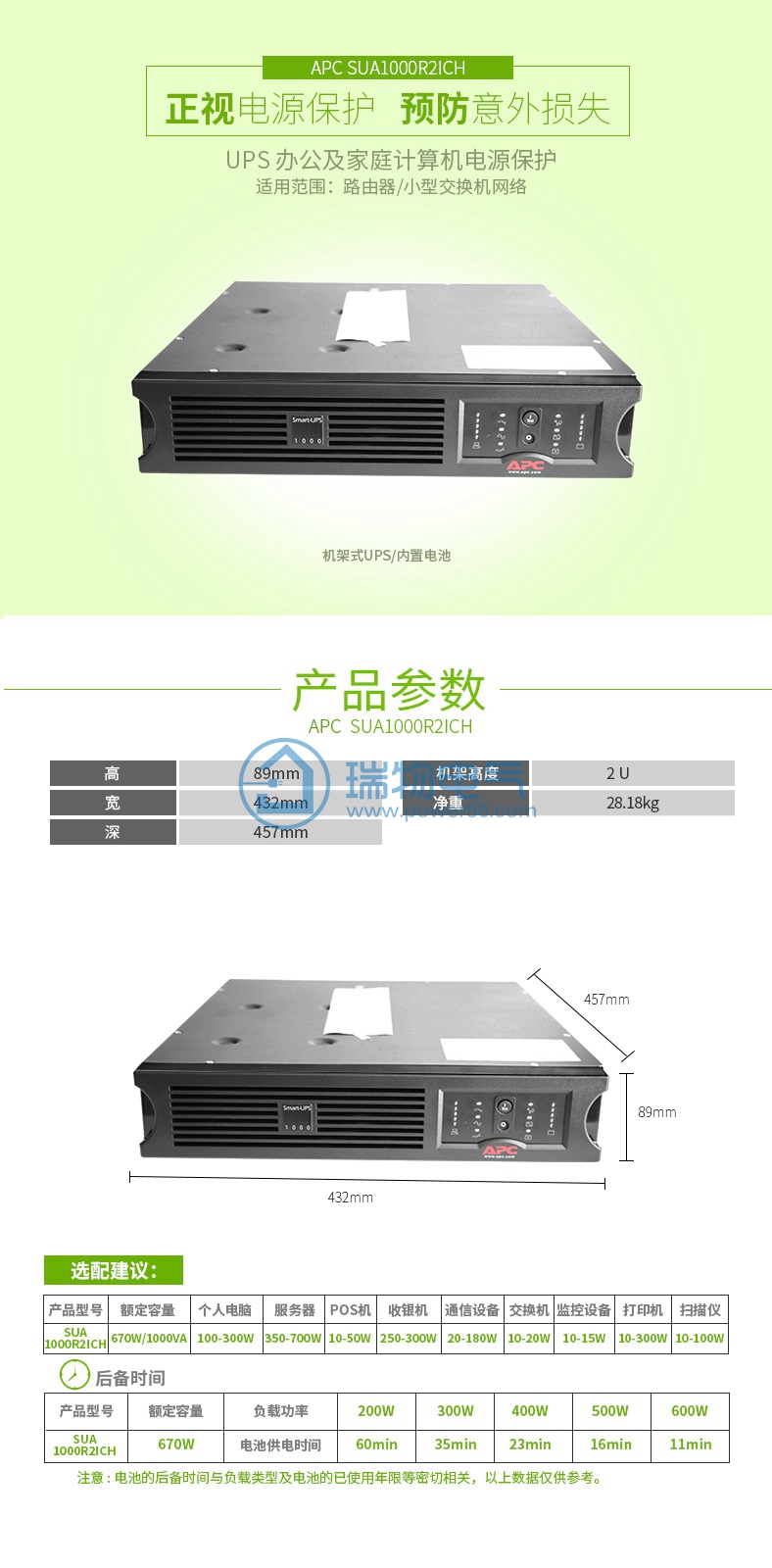

Product introduction https://img.rwyun.com/power86/rs1/ups/14/128/676/676_c0.jpg Series Introduction

Detailed specifications:

Output power Capacity

670 Wattage/1000 VA

Maximum Configurable Power

670 Wattage/1000 VA

Rated output voltage

230V

Adjustable range of output voltage

Can be set to 220, 230 or 240 output voltage

Output voltage distortion

Less than 5%

Output frequency (synchronized with main frequency)

47-53Hz(50Hz nominal),57-63Hz(60Hz nominal)

Topology

Line-interactive

Waveform Type

Sine wave

Output Connections

(4) IEC 320 C13

(2) IEC Jumpers

APC SUA1000R2ICH Input

Rated input voltage	230V
Input frequency	50/60Hz /- 3Hz (automatic adaptation)
Input terminal type	IEC-320 C14
Input line length	1.83 meters
Operating voltage range	160 - 285V
Adjustable Input Voltage Range	151 - 302V

Interface Port	DB-9 RS-232,SmartSlot slot, USB
Number of smart slots available	1
Control Panel	LED display online operation, battery operation, overload and battery need to be replaced
audible alarm	Battery powered alarm, low power alarm

Battery Model	Maintenance-free sealed lead-acid battery (suspended electrolyte): leak-proof
Typical charging time	3 hours
Replaceable battery pack	RBC23
Red blood cell™Quantity	1
Runtime Chart
Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output.

Filter	Multi-stage noise filter, according to UL1449 standard
Surge suppression energy	480 Joule

High	89.00 mm
Wide	432.00 mm
deep	457.00 mm
Equipment installation effective height	2U
Net weight	28.18 KG
Transport weight	31.45 KG
Transportation height	254.00 mm
Transport width	594.00 mm
Transport length	603.00 mm
Colour	Black
Quantity of products on each transport pallet	16.00

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-9000 m
Storage temperature	-5 - 45 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Online running heat dissipation	89.00 BTU/hr
Audible noise 1 m from equipment surface	36.00 dBA

Standard warranty

Repair or replacement within 2 years

1KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	32A-2P
External battery cable size	4mm²
