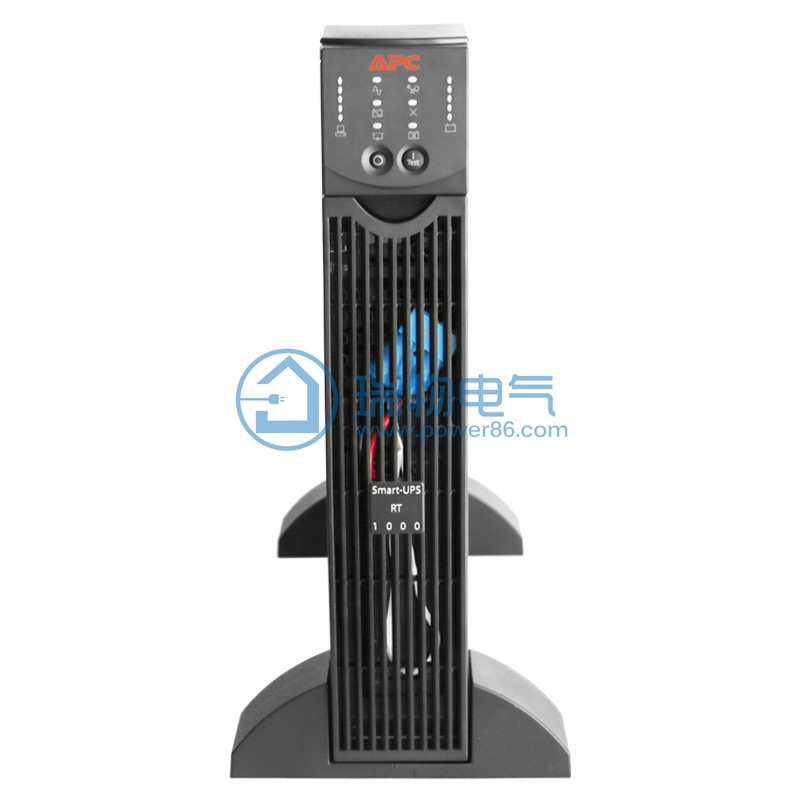

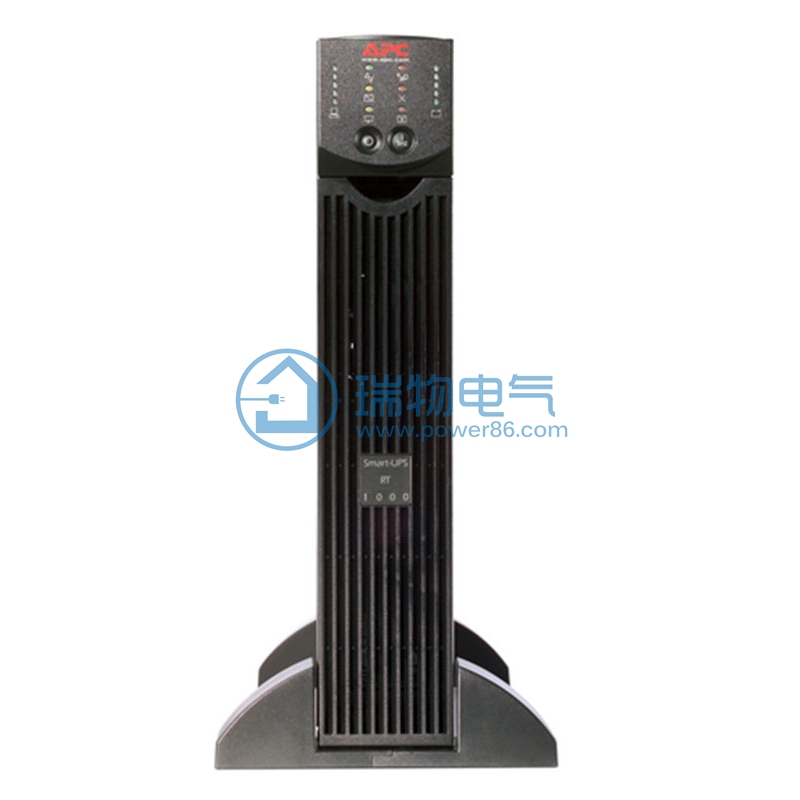

APC SURT1000XLICH

Single-entry and single-exit 1K built-in battery labeling machine can issue VAT invoices by postage in most areas.

¥3,121.80

Rated power: 0.7KW (kW)
Rated capacity: 1KVA (KVA)
Input / output: Single in and single out (220V:220V)
Built-in battery voltage: (standard machine) built-in battery 48V (DC)
Net weight: 23.00kg (kg)
Gross weight: 25.30kg (kg)
Dimensions (L×W×H): 432*85*483mm (mm) U

Ratings

2KVA (standard)2KVA 1KVA (standard)1KVA 10KVA 10KVA (standard)3KVA (standard)3KVA 3KVA (standard)5KVA

Get a quote 400-6611-323

View on mobile

Detailed specifications:

APC SURT1000XLICH output

Output power Capacity	700 Wattage/1000 VA
Maximum Configurable Power	700 Wattage/1000 VA
Rated output voltage	230V
Adjustable range of output voltage	Configurable for 220 or 230V rated output voltage
Full load efficiency	89.0%
Output voltage distortion	Less than 3%
Output frequency (synchronized with main frequency)	50/60Hz /- 3 Hz user adjustable/- 0.1
Other output voltages	220,240
crest factor	3 : 1
Topology	double conversion online
Waveform Type	Sine wave

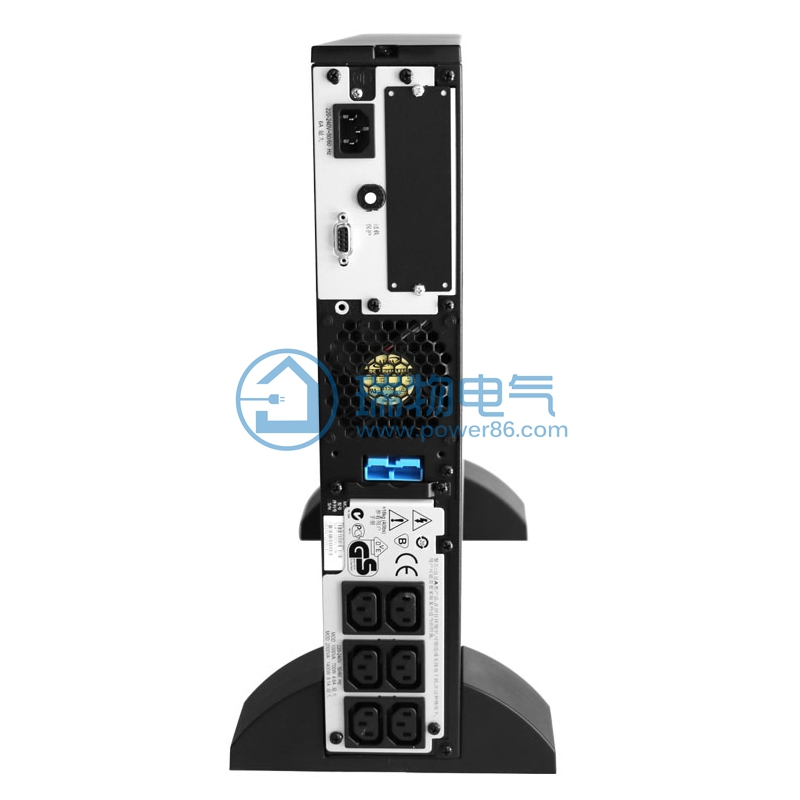

Output Connections	(6) IEC 320 C13
(1) IEC Jumpers
Bypass	Built-in bypass

APC SURT1000XLICH Input

Rated input voltage

230V

Input frequency

50/60Hz /- 5 Hz (automatic adaptation)

Input terminal type

IEC-320 C14

Operating voltage range

160 - 280V

Adjustable Input Voltage Range

100 - 280V

Other input voltages

230,240

APC SURT1000XLICH Communications and Management

Interface Port	DB-9 RS-232,SmartSlot slot
Number of smart slots available	1
Control Panel	LED status display with load and battery bar graph and "online", "battery on", "replace battery", "overload" and "bypass" indicators.
Emergency Shutdown	Optional
audible alarm	Alarm when mains power failure: special low battery alarm overload continuous tone alarm

APC SURT1000XLICH Battery and Runtime

Battery Model

Maintenance-free sealed lead-acid battery (suspended electrolyte): leak-proof

Typical charging time

2.50 hours

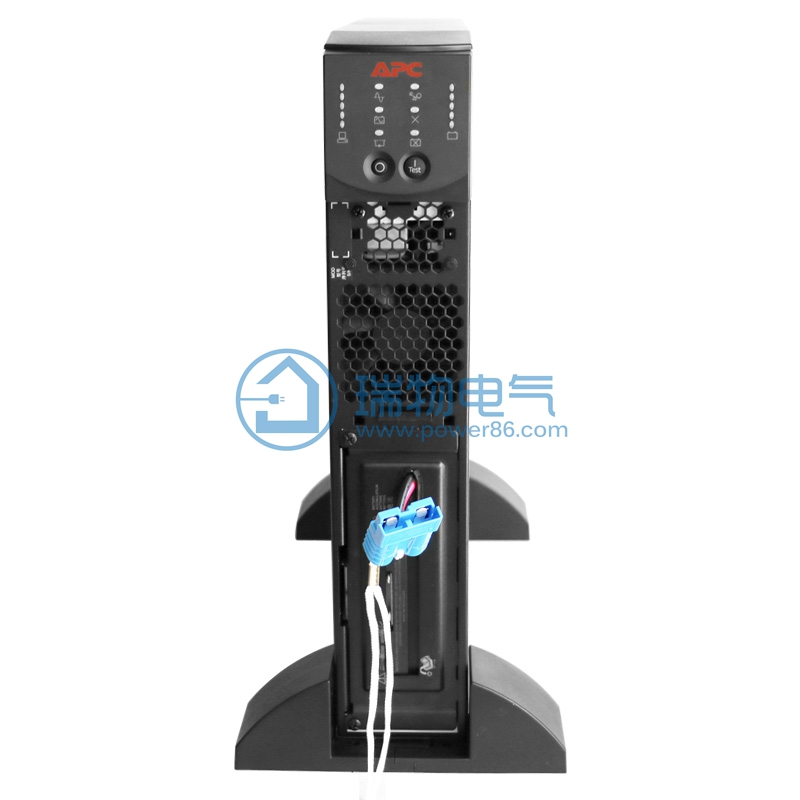

Replaceable battery pack

RBC31

Red blood cell™Quantity

Runtime Chart

Curve	Part Number(s)
A	SURT1000XLICH
B	SURT1000XLICH + (1)SURT48XLBP
C	SURT1000XLICH + (2)SURT48XLBP
D	SURT1000XLICH + (3)SURT48XLBP
E	SURT1000XLICH + (4)SURT48XLBP

Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output.

APC SURT1000XLICH Surge Protection and Filtering

Surge suppression energy	420 Joule
Filter	Multi-stage noise filter, according to UL1449 standard

APC SURT1000XLICH Physical Indicators

High	432.00 mm
Wide	85.00 mm
deep	483.00 mm
Equipment installation effective height	2U
Net weight	23.00 KG
Transport weight	27.80 KG
Transportation height	286.00 mm
Transport width	630.00 mm
Transport length	594.00 mm
Colour	Black
Quantity of products on each transport pallet	12.00

APC SURT1000XLICH Environment

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-20 - 50 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Online running heat dissipation	324.00 BTU/hr
Audible noise 1 m from equipment surface	50.00 dBA

APC SURT1000XLICH compliance

Management body certification	C- tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A, EN 60950,EN 61000-3-2,GOST,VDE
Compliance with environmental requirements	RoHS 7b Exemption, China RoHS
Standard warranty	Repair or replacement within 2 years, field service available, extended internal authorization optional

1KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	32A-2P
External battery cable size	4mm²
