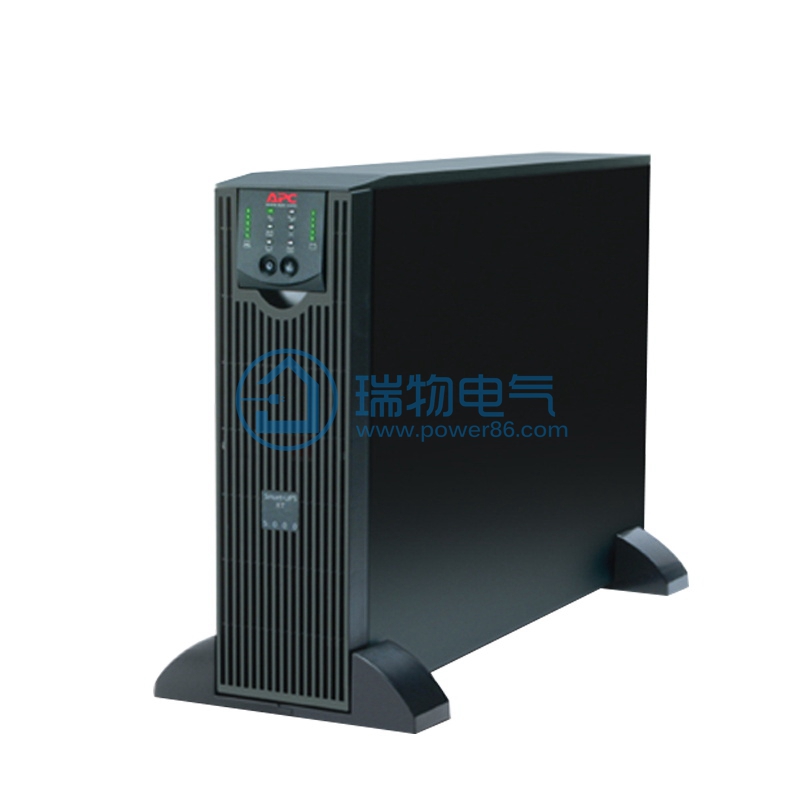

APC SURT6000XLICH

Single-in, single-out online high-frequency machine 6K standard machine can issue VAT invoices by postage in most areas.

¥15,324.41

Rated power: 4.2KW (kW)
Rated capacity: 6KVA (KVA)
Input / output: Single in and single out (220V:220V)
Built-in battery voltage: (standard machine) built-in battery 192V (DC)
Net weight: 54.55kg (kg)
Gross weight: 60.00kg (kg)
Dimensions (L×W×H): 432*130*698mm (mm) U

Ratings

2KVA (standard)2KVA 1KVA (standard)1KVA 10KVA 10KVA (standard)3KVA (standard)3KVA 3KVA (standard)5KVA

Get a quote 400-6611-323

View on mobile

Product introduction https://img.rwyun.com/power86/rs1/ups/14/132/79/79_c0.jpg

Detailed specifications:

APC SURT6000XLICH output

Output power Capacity	4200 Wattage/6000 VA
Maximum Configurable Power	4200 Wattage/6000 VA
Rated output voltage	230V
Adjustable range of output voltage	Can be set to 220, 230 or 240 output voltage
Full load efficiency	92.0%
Output voltage distortion	Less than 3%
Output frequency (synchronized with main frequency)	50/60Hz /- 3 Hz user adjustable/- 0.1
Other output voltages	220,240
crest factor	3 : 1
Topology	double conversion online
Waveform Type	Sine wave

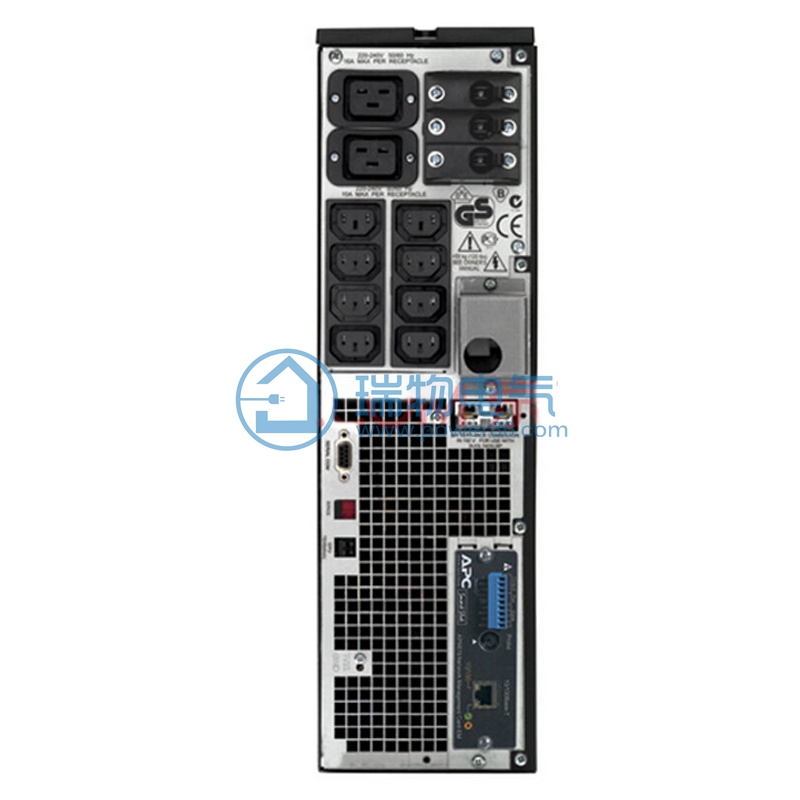

Output Connections	(8) IEC 320 C13
(2) IEC 320 C19
(4) IEC Jumpers
Bypass	Internal bypass (automatic manual)

APC SURT6000XLICH Input

Rated input voltage

230V

Input frequency

50/60Hz /- 5 Hz (automatic adaptation)

Input terminal type

Hard Wire 3 wire

Operating voltage range

160 - 280V

Adjustable Input Voltage Range

100 - 280V

Other input voltages

220,240

APC SURT6000XLICH Communications and Management

Interface Port	DB-9 RS-232,RJ-45 10/100 Ethernet interface, smart slot
Pre-installed SmartSlot™card	APC9631CH
Control Panel	LED status display with load and battery bar graph and "online", "battery on", "replace battery", "overload" and "bypass" indicators.
Emergency Shutdown	Yes
audible alarm	Alarm when mains power failure: special low battery alarm overload continuous tone alarm

APC SURT6000XLICH Battery and Runtime

Battery Model

Maintenance-free sealed lead-acid battery (suspended electrolyte): leak-proof

Pre-installed battery

Typical charging time

2.50 hours

Replaceable battery pack

RBC44

Red blood cell™Quantity

Runtime Chart

Curve	Part Number(s)
A	SURT6000XLICH
B	SURT6000XLICH + (1)SURT192XLBP
C	SURT6000XLICH + (2)SURT192XLBP
D	SURT6000XLICH + (3)SURT192XLBP
E	SURT6000XLICH + (4)SURT192XLBP

Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output.

APC SURT6000XLICH Surge Protection and Filtering

Surge suppression energy	480 joules
Filter	Multi-stage noise filter, according to UL1449 standard

APC SURT6000XLICH Physical Indicators

High	432.00 mm
Wide	130.00 mm
deep	698.00 mm
Equipment installation effective height	3U
Net weight	54.55 KG
Transport weight	63.64 KG
Transportation height	347.00 mm
Transport width	603.00 mm
Transport length	980.00 mm
Colour	Black
Quantity of products on each transport pallet	6.00

APC SURT6000XLICH Environment

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-15 - 45 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Online running heat dissipation	1040.00 BTU/hr
Audible noise 1 m from equipment surface	55.00 dBA

APC SURT6000XLICH compliance

Management body certification	C- Tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE
Compliance with environmental requirements	RoHS 7b Exemption, China RoHS,REACH: SVHC not included, lithium battery included
Standard warranty	Repair or replacement within 2 years, field service available, extended internal authorization optional

6KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm²
Input neutral conductor size	4mm²
Input earth conductor size	4mm²
Input breaker	32A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm²
Output neutral conductor size	4mm²
Output earth conductor size	4mm²
Output breaker	32A -2P
Battery specifications
External battery breaker	75A-2P
External battery cable size	6mm²
