Delta GES-RT11KS

Name: Delta GES-RT11KS
Brand: Delta
SKU: 1603
Price: 10028 CNY
Availability: InStock

Single-in single-out 11K online long machine includes tax in most areas

¥10,028.00List price ¥28110.00

Ratings

UPS runtime configurations

View on mobile

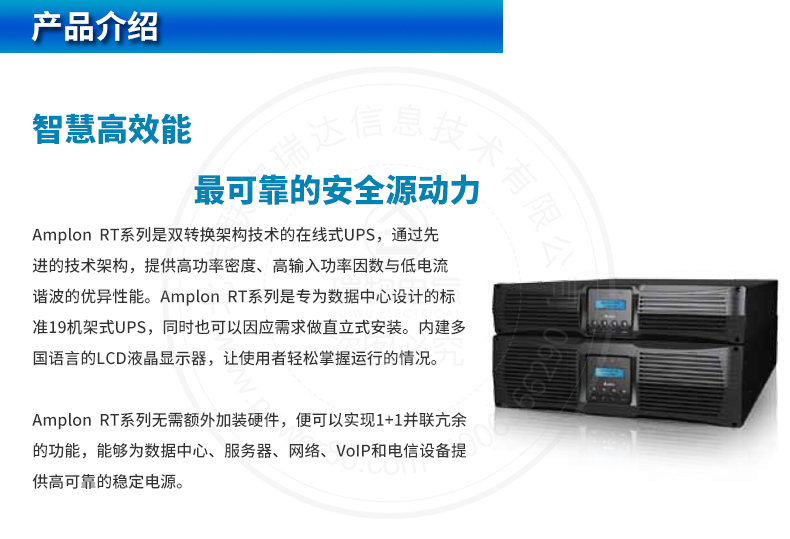

Product introduction https://img.rwyun.com/power86/rs1/ups/285/526/1603/1603_c0.jpg

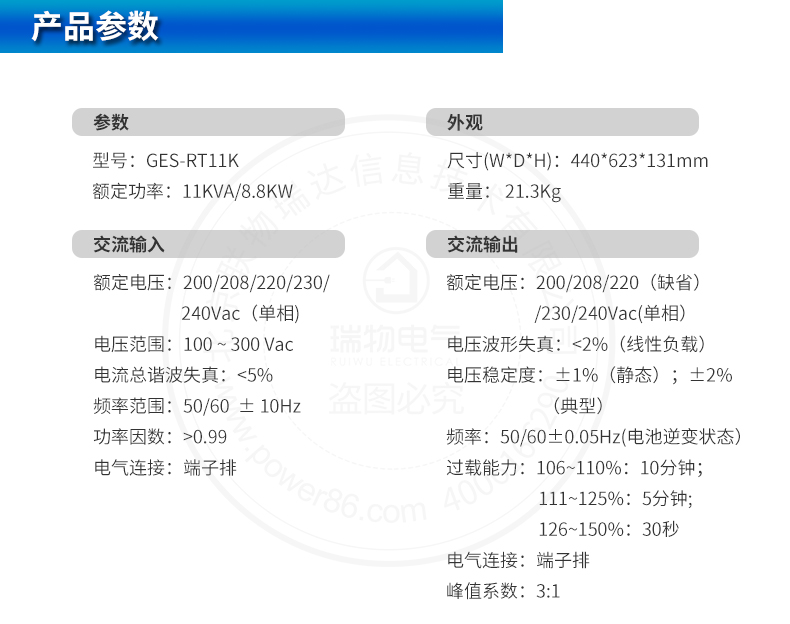

Detailed specifications:

Output power Capacity	8.8KW/11KVA
Rated output voltage	200/208/220 (default)/230/240 Vac (single phase)
Output voltage distortion	Less than 2% (linear load)
Output frequency (synchronized with main frequency)	50/60±0.05Hz (battery inverter mode)
Voltage stability	±1% (static); ±2% (typical)
Overload capacity	106~110%:10 minutes; 111~125%:5 minutes; 126~150%:30 seconds

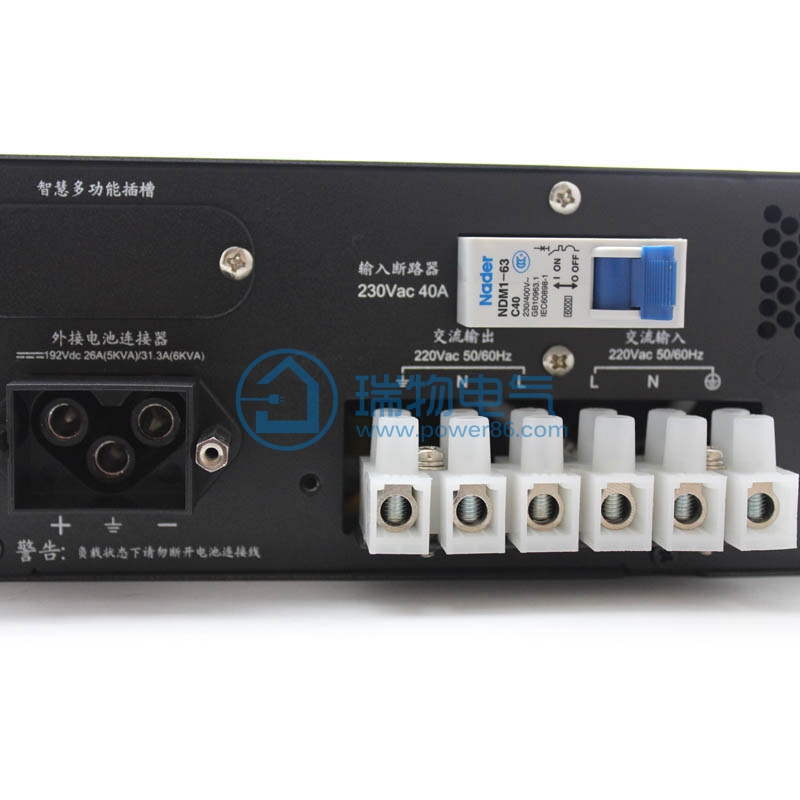

Electrical connection	Terminal block 3
peak coefficient	3:1

Rated input voltage	200/208/220/230/240 Vac(Single-phase)
Input frequency	50/60±10Hz
Operating voltage range	80~280Vac*
Power factor	>0.99
Electrical connection	Terminal block
current total harmonic distortion	<5%

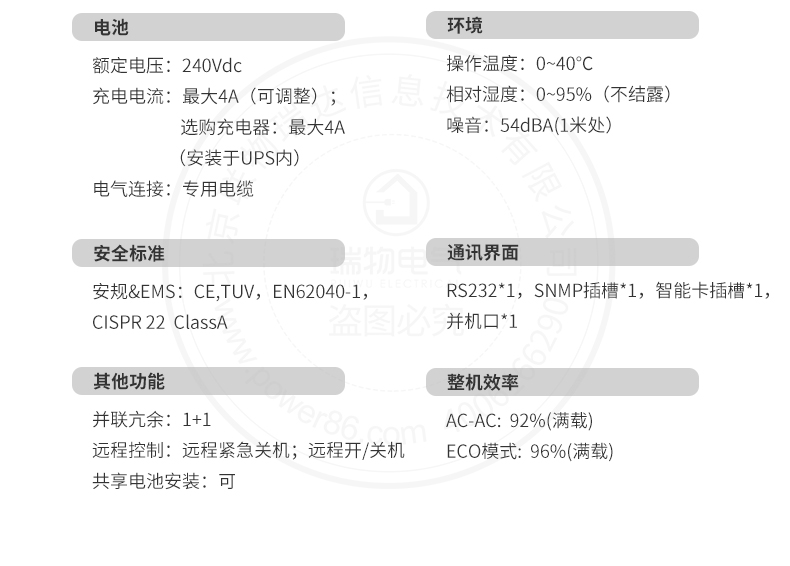

Rated battery voltage	240Vdc
Charging time	Charge to 80 ~ 90% full potential in 8 hours
Charging current	Up to 4A (adjustable); Optional charger: up to 4A (installed inside the UPS)

Number of smart slots available

Operating environment	0 - 40 °C
Operating relative humidity	0- 95% (no condensation)
Audible noise 1 m from equipment surface	54dBA

Standard type

RS232 × 1, SNMP slot × 1, Smart Card slot × 1, Parallel port × 1

Safety and EMC

CE,TUV,EN62040-1;CISPR 22 Class A

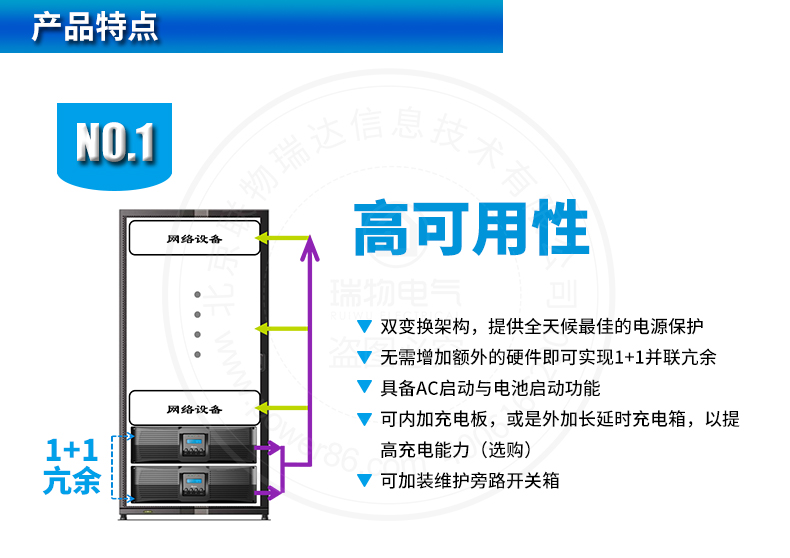

parallel redundancy	1+1
Remote control	Remote emergency shutdown; remote power on/off

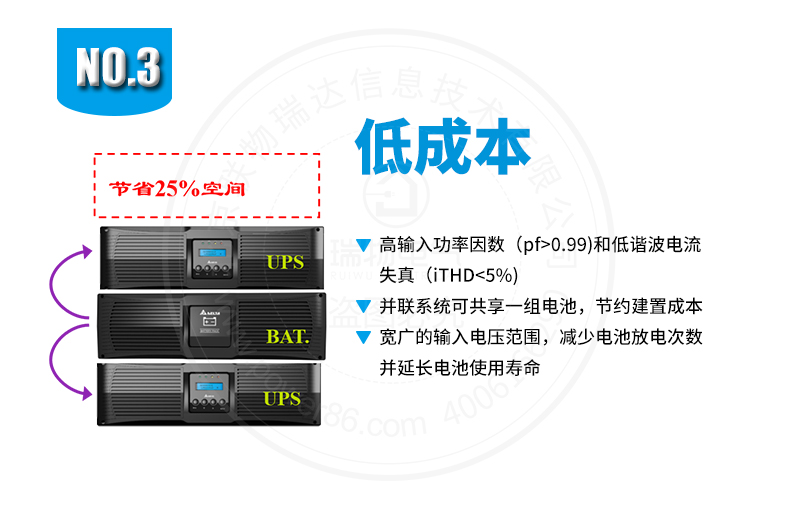

Shared Battery Installation	Can

AC-AC	92% (full load)
ECO mode	96% (full load)

11KVA input AC 380V: output AC 220V(3 to 1)

Input parameter
Input voltage	220V AC
Input live conductor size	6mm²
Input neutral conductor size	6mm²
Input earth conductor size	6mm²
Input breaker	40A -Input AC 380V: Output AC 220V
Output parameter
Output voltage	220V AC
Output conductor size	6mm²
Output neutral conductor size	6mm²
Output earth conductor size	6mm²
Output breaker	40A -Input AC 380V: Output AC 220V
Battery specifications
External battery breaker	100A-Input AC 380V: Output AC 220V
External battery cable size	10mm²

11KVA input AC 380V: output AC 380V(3 to 3)

Input parameter
Input voltage	220V AC
Input live conductor size	6mm²
Input neutral conductor size	6mm²
Input earth conductor size	6mm²
Input breaker	40A -Input AC 380V: Output AC 380V
Output parameter
Output voltage	220V AC
Output conductor size	6mm²
Output neutral conductor size	6mm²
Output earth conductor size	6mm²
Output breaker	40A -Input AC 380V: Output AC 380V
Battery specifications
External battery breaker	100A-Input AC 380V: Output AC 380V
External battery cable size	10mm²
