Ruiwu HF31-20KS

Name: Ruiwu HF31-20KS
Brand: Ruiwu
SKU: 5414
Price: 13413 CNY
Availability: InStock

Three-in single-out 20K long machine in most areas including tax

¥13,413.00

Ratings

UPS runtime configurations

View on mobile

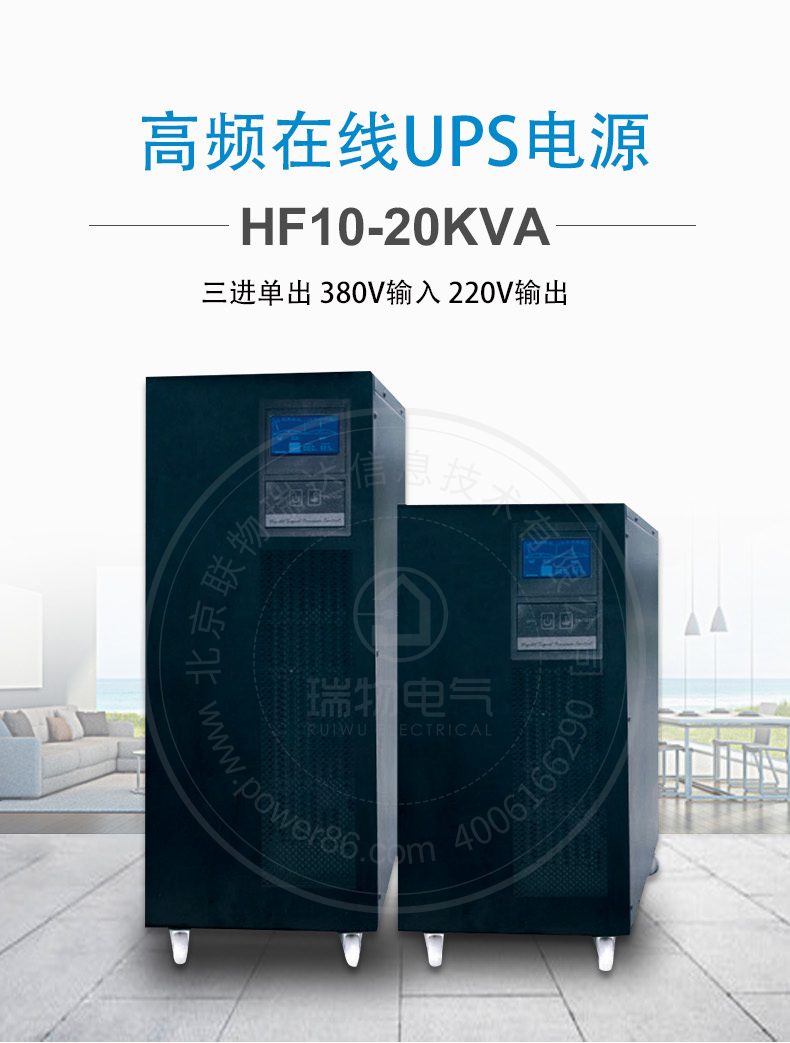

Product introduction https://img.rwyun.com/power86/rs1/ups/2579/2581/5414/5414_c0.jpg

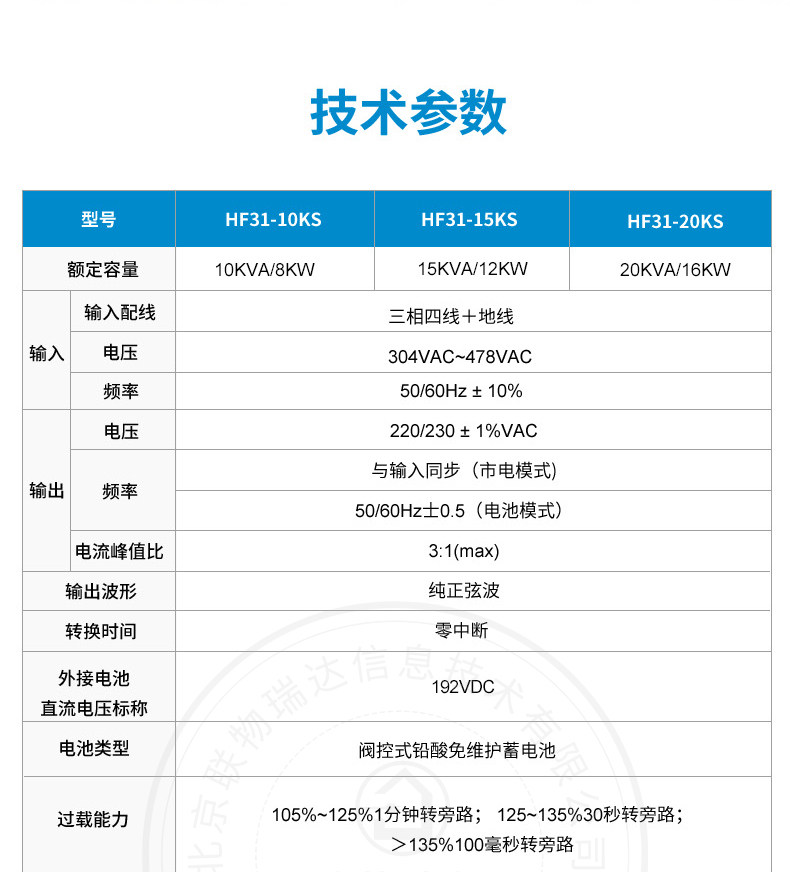

Detailed specifications:

Rated capacity	20kVA/16KW
Model	HF-20KS

Input wiring	Three-phase four-wire ground wire
Voltage	304VAC~478VAC
Frequency	50/60Hz±10%

Voltage	220/230±1%Vac
Output frequency	Synchronized with input (mains mode): 50/60Hz ± 0.5%; (battery mode)
Peak current ratio	3:1（max）
Output waveform	Pure sine wave
Transfer time	Zero Interrupt

Mains-battery changeover time	0ms
Overload capacity	105 to 125 1 min bypass; 125 to 135 30 sec bypass;>135 100 ms bypass

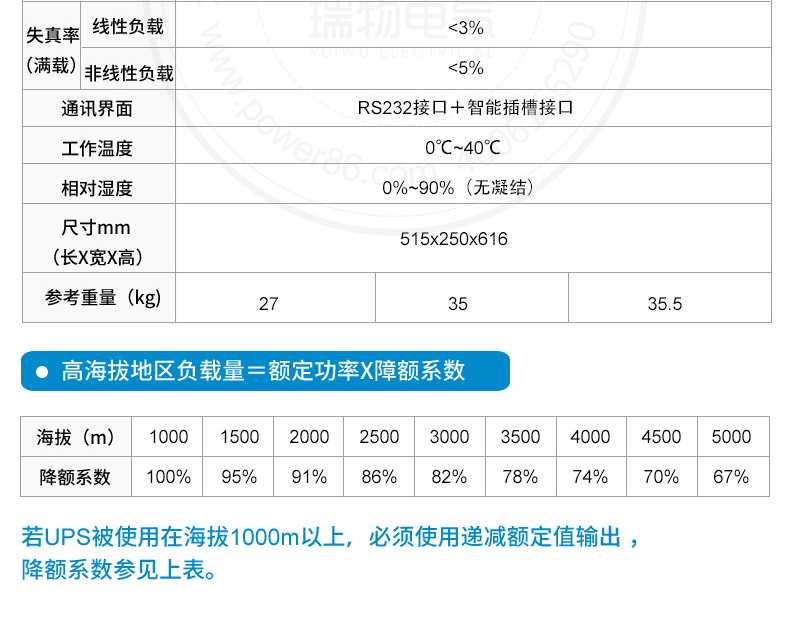

Distortion rate	Linear load <3% Non-linear load <5%

Interface Port

RS232 interface smart slot interface

Dimensions (Length × Width × Height)	515250616mm
Machine weight	27kg

Working environment temperature	0 - 40 °C
Operating relative humidity	0% - 90% (no condensation)

Standard warranty

Repair or replacement within 3 years

20KVA input AC 380V: output AC 220V

Input parameter
Input voltage	380V AC
Input live conductor size	4mm²
Input neutral conductor size	10mm²
Input earth conductor size	4mm²
Input breaker	50A -3P
Output parameter
Output voltage	380V AC
Output conductor size	4mm²
Output neutral conductor size	10mm²
Output earth conductor size	4mm²
Output breaker	50A -3P
Battery specifications
External battery breaker	125A-3P
External battery cable size	4mm²

20KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	4mm²
Input neutral conductor size	10mm²
Input earth conductor size	4mm²
Input breaker	50A -3P
Output parameter
Output voltage	380V AC
Output conductor size	4mm²
Output neutral conductor size	10mm²
Output earth conductor size	4mm²
Output breaker	50A -3P
Battery specifications
External battery breaker	125A-3P
External battery cable size	4mm²
