Ruiwu HF33060

Name: Ruiwu HF33060
Brand: Ruiwu
SKU: 5420
Price: 26100 CNY
Availability: InStock

Three-in-three-out 60K high-frequency pilot machine includes tax in most areas

¥26,100.00

Ratings

UPS runtime configurations

View on mobile

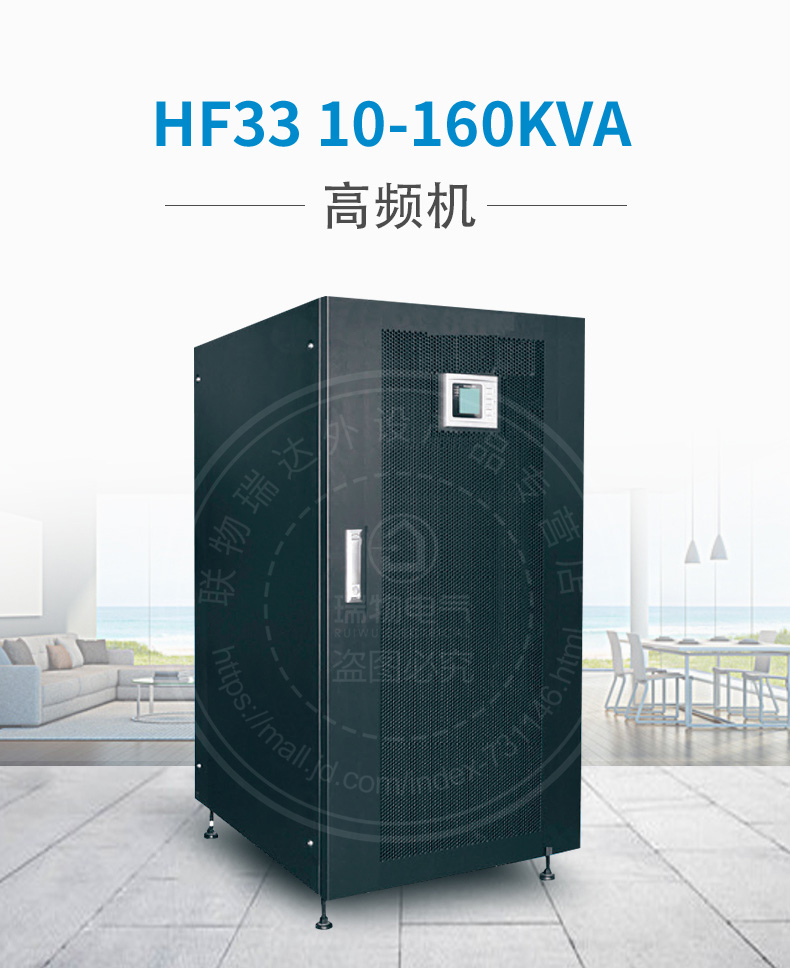

Product introduction https://img.rwyun.com/power86/rs1/ups/2579/2582/5420/5420_c0.jpg

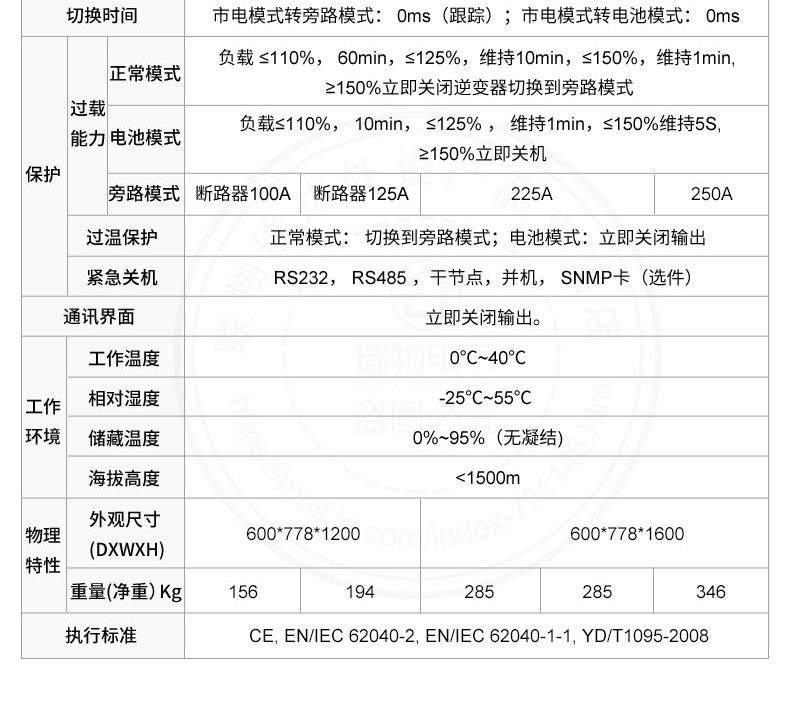

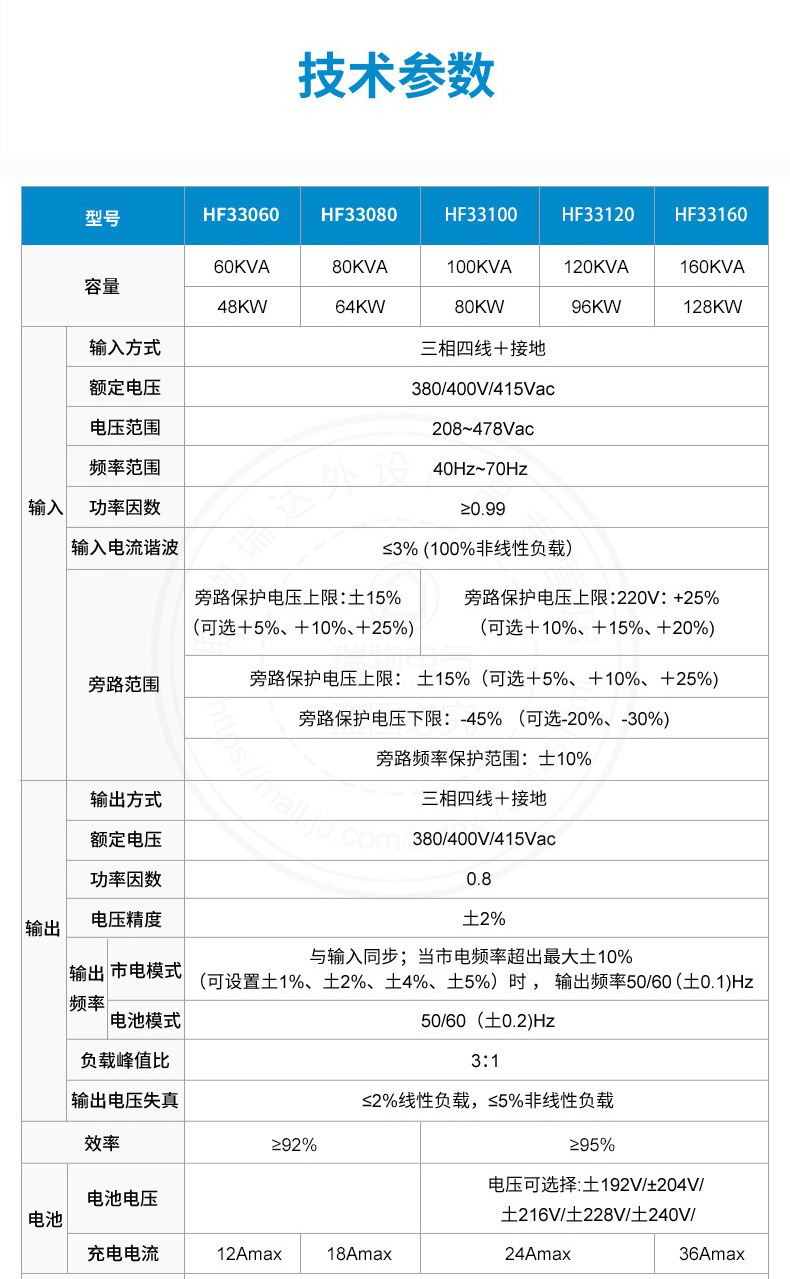

Detailed specifications:

Rated capacity	60KVA/48KW
Model	HF33060

Input method	Three-phase four-wire grounding
Rated voltage	380V/400V/415V
Input voltage range	208~478Vac
Input frequency range	40Hz~70Hz
Input power factor	≥0.99
Input current harmonics	≤3% (100% nonlinear load)

Output method	Three-phase four-wire grounding
Rated voltage	380V/400V/415Vac
Power factor	0.8
Voltage accuracy	±2%
Output frequency	Mains mode: synchronized with the input, when the mains frequency exceeds the maximum 10% (can be set to 1%, 2%, 4%, 5%), the output frequency is 50/60 (0.1)Hz; Battery mode: 50/60 (0.1)Hz
peak load ratio	3:1
Output voltage distortion	≤2% for linear loads, ≤5% for nonlinear loads
Efficiency	≥92%

Battery Model	Valve-regulated maintenance-free lead-acid battery
DC voltage	384V ~ 480V optional
Charging current	12A max

Normal Mode Overload Capability	Load ≤ 110%, 60 minutes; ≤ 125%, hold for 10 minutes; ≤ 150%, hold for 1 minute; ≥ 150%, immediately shut down the inverter and switch to bypass mode.
Battery Mode Overload Capability	Load ≤110%, 10 min; ≤125%, hold for 1 min; ≤150%, hold for 5 s; ≥150%, shut down immediately.
Bypass Mode Overload Capability	Circuit Breaker 100A
Over-temperature protection	Normal mode: Switch to bypass mode; Battery mode: Turn off the output immediately

Interface Port

RS232,RS485, dry node, parallel machine, SNMP card (option)

Appearance size (depth * width * height)	6007781200 mm
Weight	156 KG

Operating temperature	0 - 40 °C
Operating relative humidity	0%-95% (no condensation)
Storage temperature	-25℃~55℃
Altitude	＜1500m

Standard warranty

Repair or replacement within 3 years

60KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	25mm²
Input neutral conductor size	50mm²
Input earth conductor size	25mm²
Input breaker	150a -Input AC 380V: Output AC 380V
Output parameter
Output voltage	380V AC
Output conductor size	25mm²
Output neutral conductor size	50mm²
Output earth conductor size	25mm²
Output breaker	150a -Input AC 380V: Output AC 380V
Battery specifications
External battery breaker	300A-Input AC 380V: Output AC 380V
External battery cable size	50mm²
