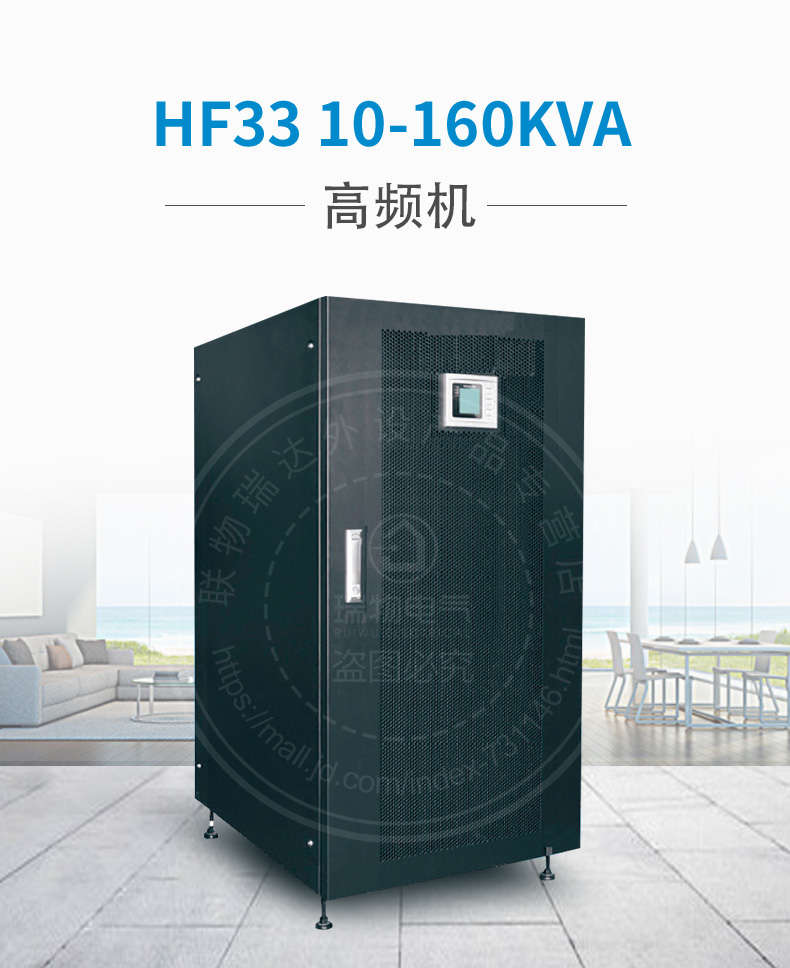

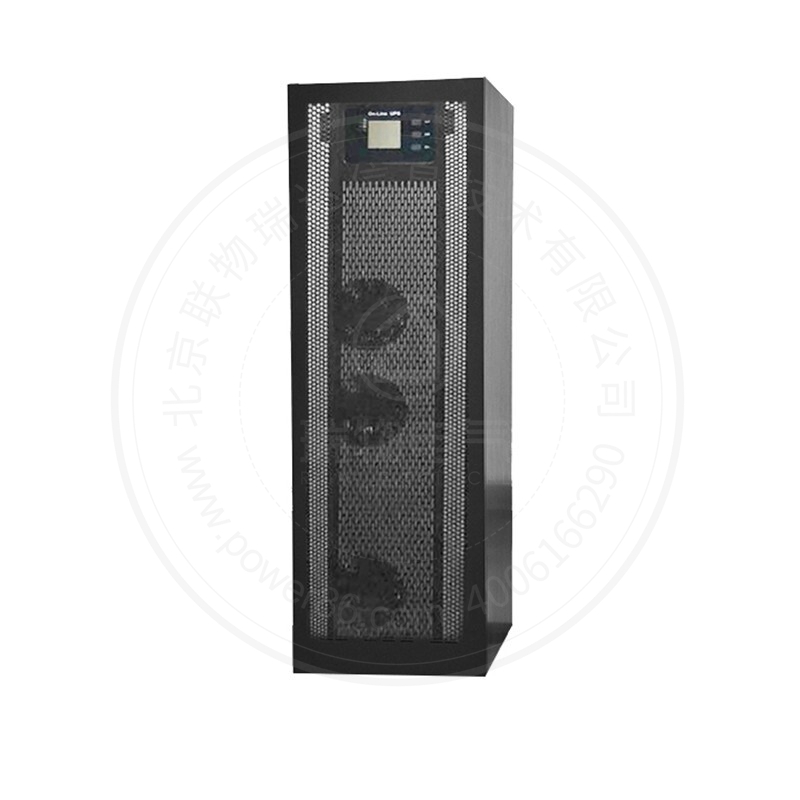

Ruiwu HF33120

Detailed specifications:

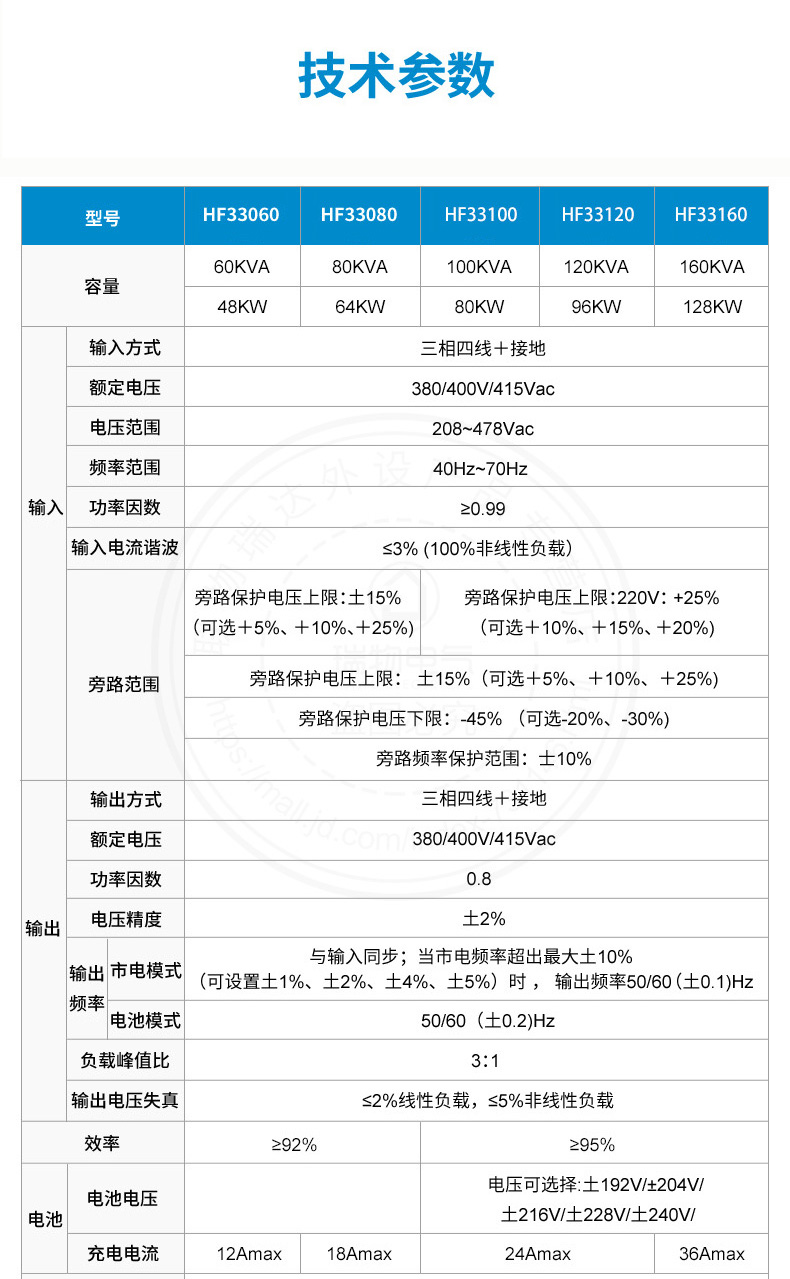

HF33120 detailed parameter table

Rated capacity	120KVA/96KW
Model	HF33120

HF33120 input parameters

Input method	Three-phase four-wire grounding
Rated voltage	380V/400V/415V
Input voltage range	208~478Vac
Input frequency range	40Hz~70Hz
Input power factor	≥0.99
Input current harmonics	≤3% (100% nonlinear load)

HF33120 output parameters

Output method	Three-phase four-wire grounding
Rated voltage	380V/400V/415Vac
Power factor	0.8
Voltage accuracy	±2%
Output frequency	Mains mode: synchronized with the input, when the mains frequency exceeds the maximum 10% (can be set to 1%, 2%, 4%, 5%), the output frequency is 50/60 (0.1)Hz; Battery mode: 50/60 (0.1)Hz
peak load ratio	3:1
Output voltage distortion	≤2% for linear loads, ≤5% for nonlinear loads
Efficiency	≥95%

HF33120 battery and runtime

Battery Model	Valve-regulated maintenance-free lead-acid battery
DC voltage	384V ~ 480V optional
Charging current	24A max

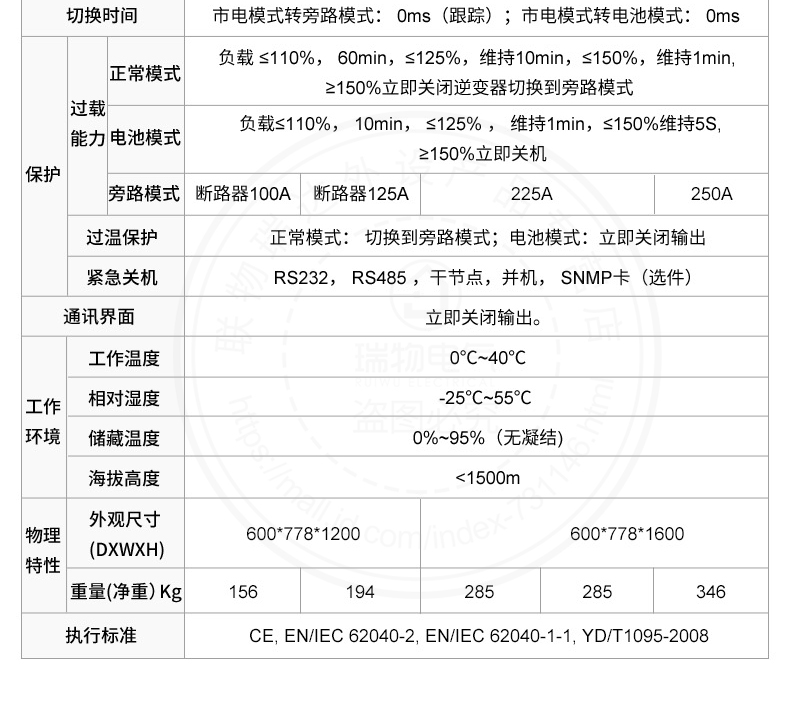

HF33120 protection

Normal Mode Overload Capability	Load ≤ 110%, 60 minutes; ≤ 125%, hold for 10 minutes; ≤ 150%, hold for 1 minute; ≥ 150%, immediately shut down the inverter and switch to bypass mode.
Battery Mode Overload Capability	Load ≤110%, 10 min; ≤125%, hold for 1 min; ≤150%, hold for 5 s; ≥150%, shut down immediately.
Bypass Mode Overload Capability	Circuit Breaker 225A
Over-temperature protection	Normal mode: Switch to bypass mode; Battery mode: Turn off the output immediately

HF33120 Communications and Management

Interface Port

RS232,RS485, dry node, parallel machine, SNMP card (option)

HF33120 physical indicators

Appearance size (depth * width * height)	600*778*1600 mm
Weight	285 KG

HF33120 environment

Operating temperature	0 - 40 °C
Operating relative humidity	0%-95% (no condensation)
Storage temperature	-25℃~55℃
Altitude	＜1500m

HF33120 Warranty

Standard warranty

Repair or replacement within 3 years

120KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	120mm2
Input neutral conductor size	120mm2
Input earth conductor size	50mm2
Input breaker	250A -Input AC 380V: Output AC 380V
Output parameter
Output voltage	380V AC
Output conductor size	95mm2
Output neutral conductor size	95mm2
Output earth conductor size	50mm2
Output breaker	200A -Input AC 380V: Output AC 380V
Battery specifications
External battery breaker	200A-Input AC 380V: Output AC 380V
External battery cable size	95mm2

Data not yet provided
