Ruiwu

Ruiwu HF6K

Name: Ruiwu HF6K
Brand: Ruiwu
SKU: 5408
Availability: InStock

Single-in single-out 6K built-in battery includes tax in most areas

Price on request

Ratings

View on mobile

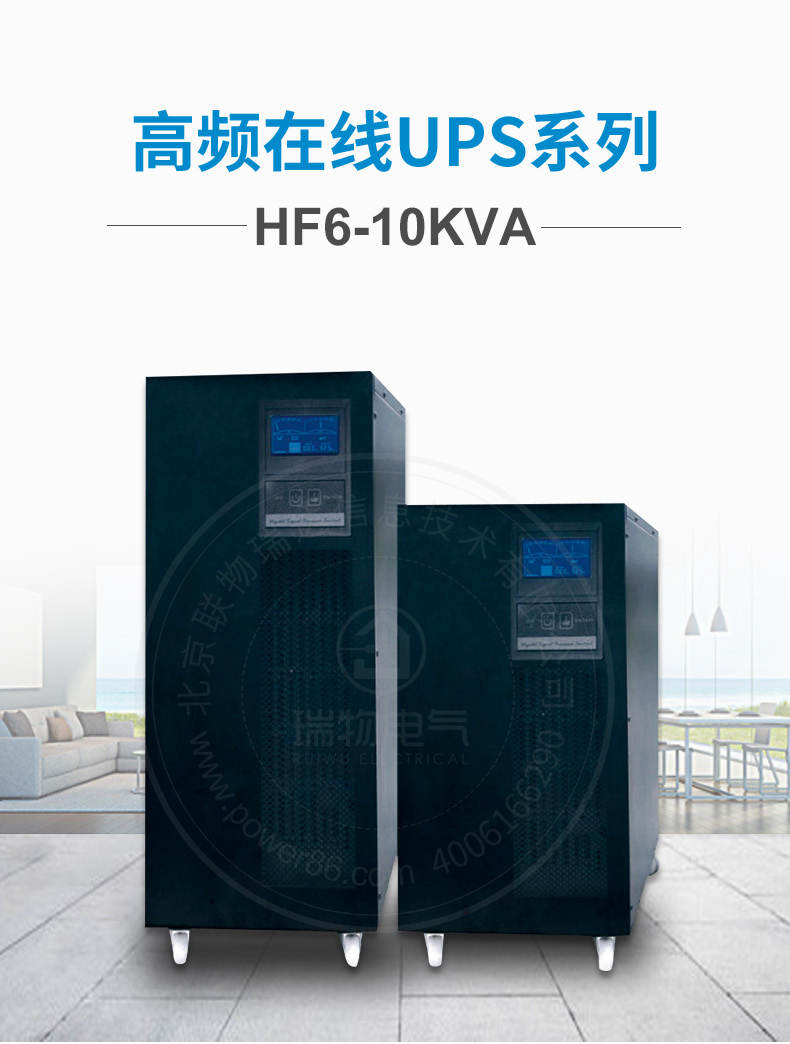

Product introduction https://img.rwyun.com/power86/rs1/ups/2579/2580/5408/5408_c0.jpg

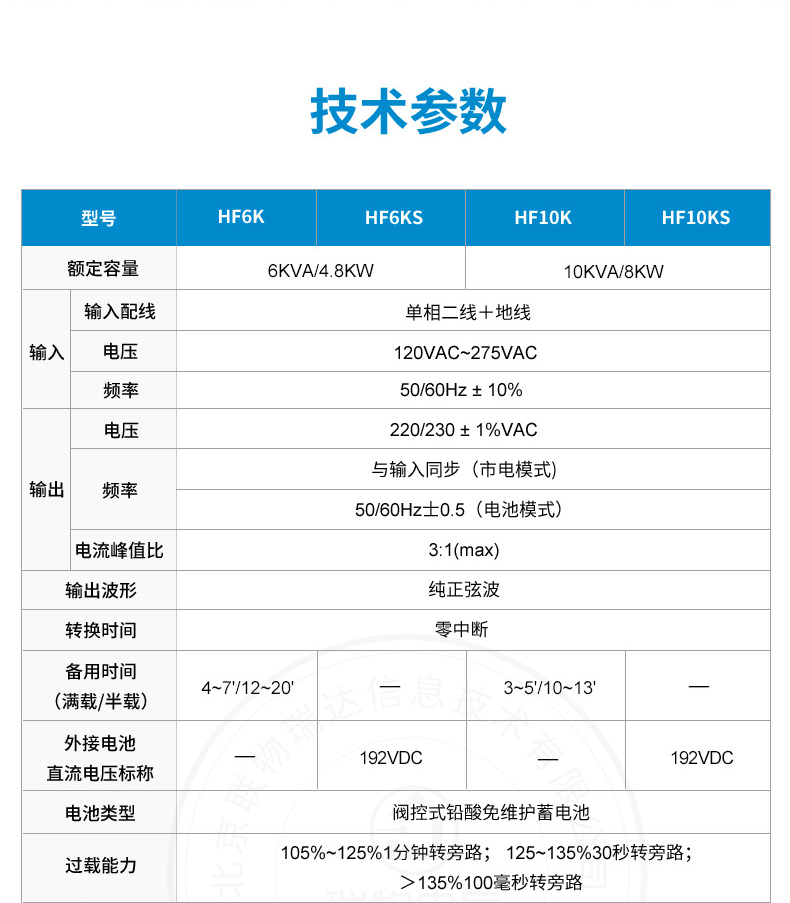

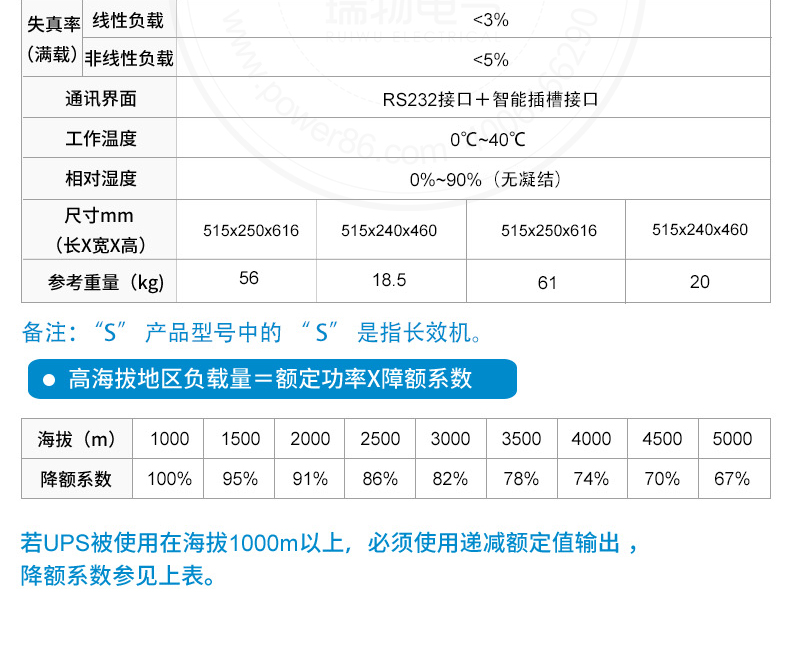

Detailed specifications:

Ruiwu HF6K output

Output power Capacity	6KVA/4.8KW
Rated output voltage	220/230VAC±1%
Output frequency	50/60Hz±0.5Hz
UPS Transfer time	0ms
Output waveform	Pure sine wave
Overload capacity	105%-125 1 minute bypass, 125~1350 seconds bypass,>135 0 ms bypass

Rated input voltage	120~275 VAC (single-phase two-wire ground wire)
Input frequency	50-60Hz ±10%

Interface Port

RS232 interface smart slot

Battery Model	Maintenance-free sealed lead-acid battery
Built-in battery specifications	7AH*16
External battery DC voltage	----
Backup time	12-20 minutes(half load)

Length × Width × Height (mm)	515250616
Reference weight	56KG

Operating environment	0 - 40 °C
Operating relative humidity	0 - 90% (no condensation)

6KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm²
Input neutral conductor size	4mm²
Input earth conductor size	4mm²
Input breaker	32A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm²
Output neutral conductor size	4mm²
Output earth conductor size	4mm²
Output breaker	32A -2P
Battery specifications
External battery breaker	75A-2P
External battery cable size	6mm²
