Ruiwu

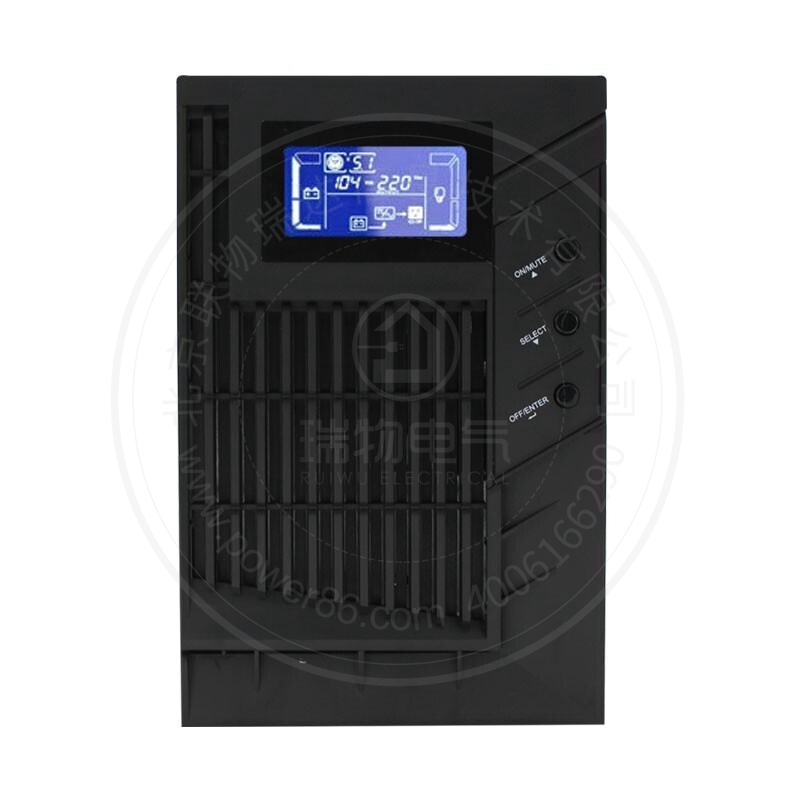

Ruiwu HF2KS

Name: Ruiwu HF2KS
Brand: Ruiwu
SKU: 5405
Price: 1159 CNY
Availability: InStock

Single-in and single-out 2K long machines include tax in most areas

¥1,159.00

Ratings

UPS runtime configurations

View on mobile

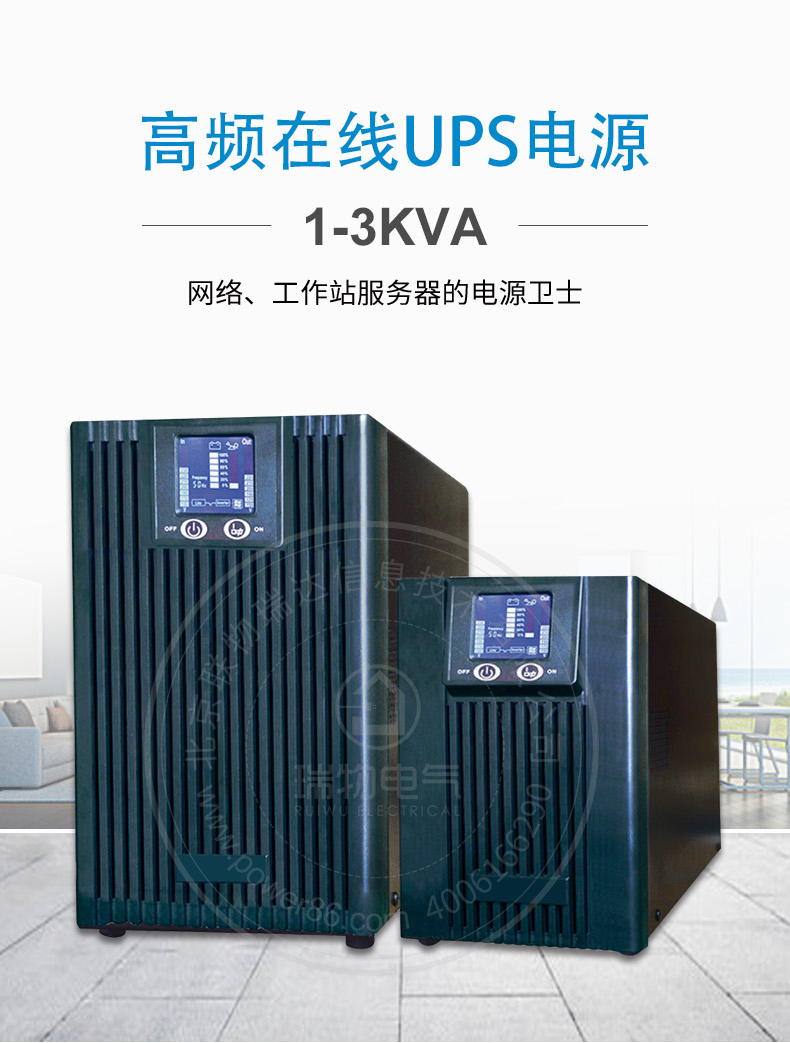

Product introduction https://img.rwyun.com/power86/rs1/ups/2579/2580/5405/5405_c0.jpg

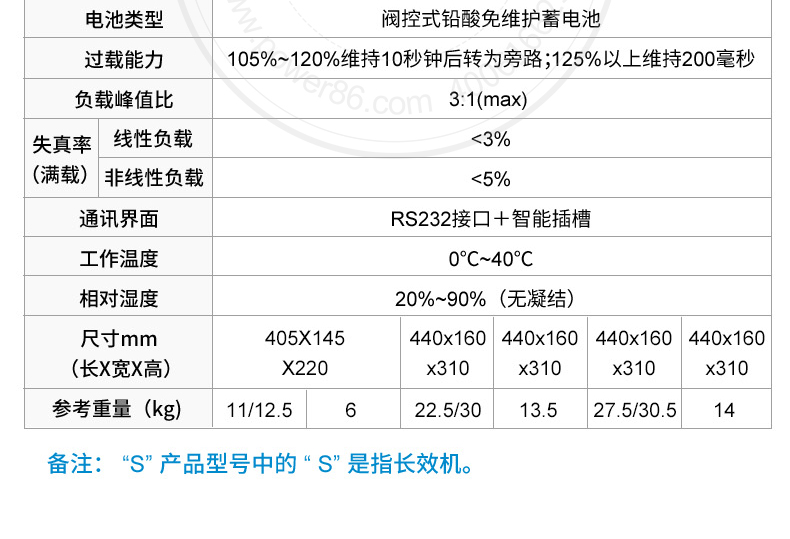

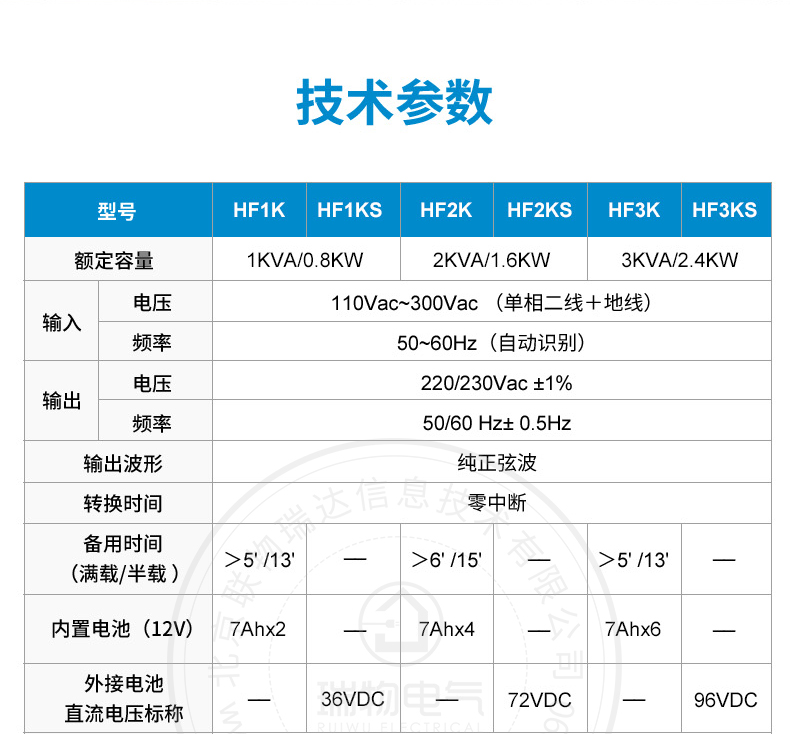

Detailed specifications:

Ruiwu HF2KS output

Output power Capacity	2KVA/1.6KW
Rated output voltage	220/230VAC±1%
Output frequency	50/60Hz±0.5Hz
UPS Transfer time	0ms
Output waveform	Pure sine wave
Overload capacity	105-120 output to bypass after 10 seconds, more than 125 200ms

Rated input voltage	110~300 VAC (single-phase two-wire ground wire)
Input frequency	50-60Hz (automatic identification)

Interface Port

RS232 interface smart slot

Battery Model	Maintenance-free sealed lead-acid battery
Built-in battery specifications	----
External battery DC voltage	72Vdc
Backup time	----

Length × Width × Height (mm)	440160310
Reference weight	13.5KG

Operating environment	0 - 40 °C
Operating relative humidity	20 - 90% (no condensation)

2KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	2.5mm²
Input neutral conductor size	2.5mm²
Input earth conductor size	2.5mm²
Input breaker	10A -2P
Output parameter
Output voltage	220V AC
Output conductor size	2.5mm²
Output neutral conductor size	2.5mm²
Output earth conductor size	2.5mm²
Output breaker	10A -2P
Battery specifications
External battery breaker	40A-2P
External battery cable size	4mm²
