Ruiwu

Ruiwu HF3K

Name: Ruiwu HF3K
Brand: Ruiwu
SKU: 5407
Availability: InStock

Single-in single-out 3K built-in battery includes tax in most areas

Price on request

Ratings

View on mobile

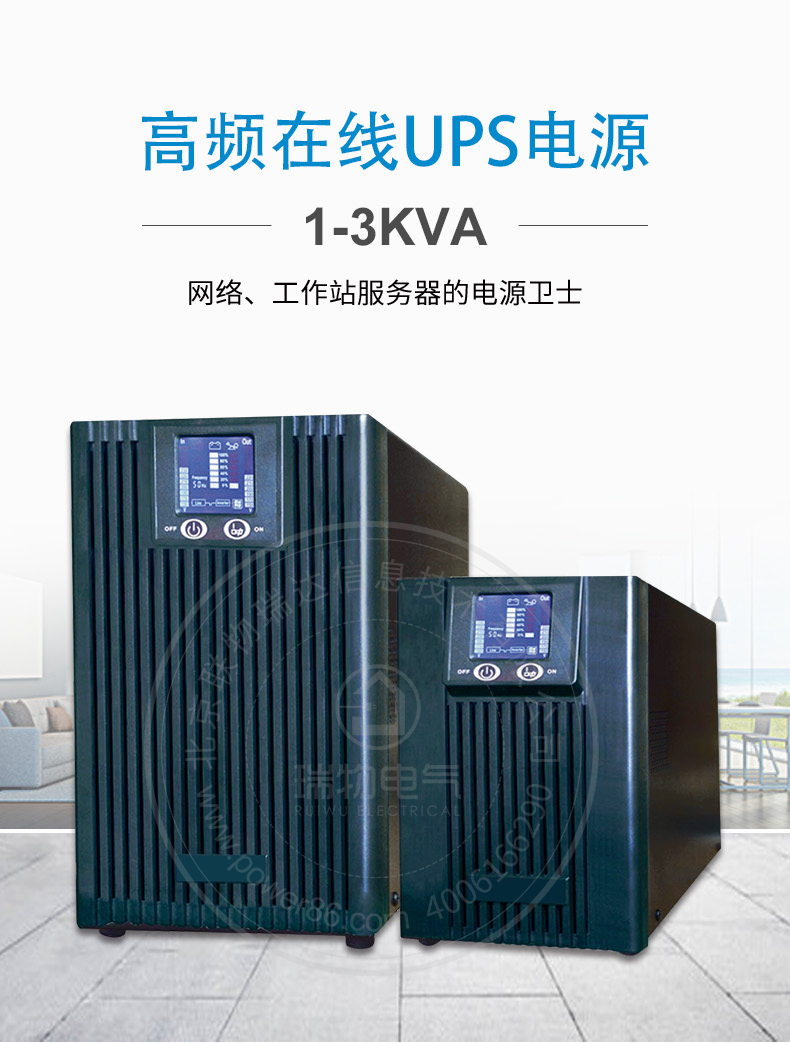

Product introduction https://img.rwyun.com/power86/rs1/ups/2579/2580/5407/5407_c0.jpg

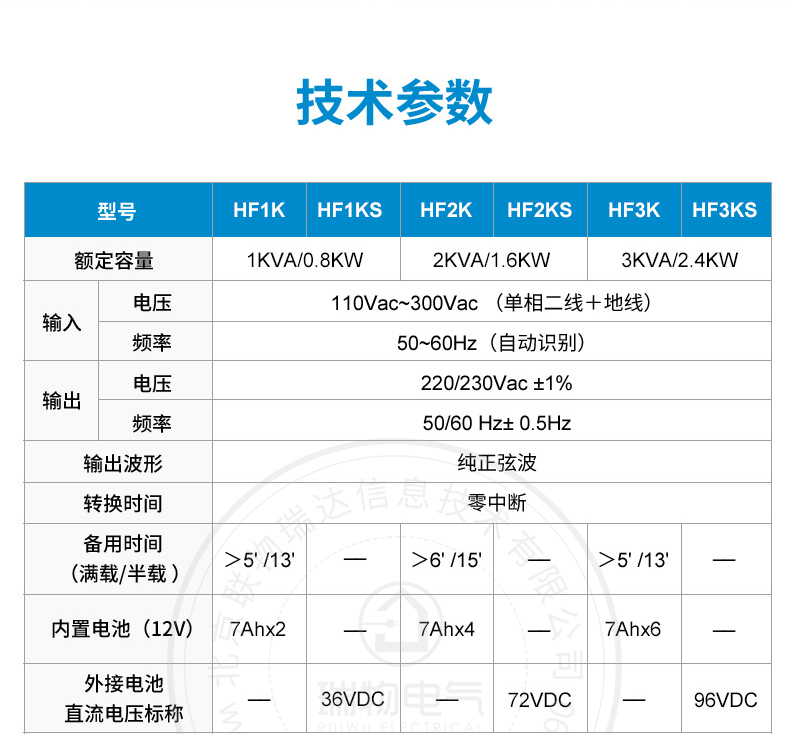

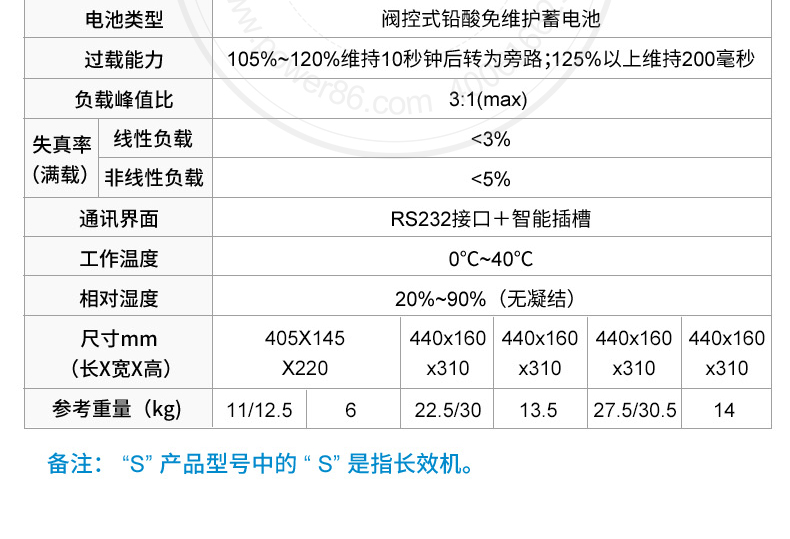

Detailed specifications:

Ruiwu HF3K output

Output power Capacity	3KVA/2.4KW
Rated output voltage	220/230VAC±1%
Output frequency	50/60Hz±0.5Hz
UPS Transfer time	0ms
Output waveform	Pure sine wave
Overload capacity	105-120 output to bypass after 10 seconds, more than 125 200ms

Rated input voltage	110~300 VAC (single-phase two-wire ground wire)
Input frequency	50-60Hz (automatic identification)

Interface Port

RS232 interface smart slot

Battery Model	Maintenance-free sealed lead-acid battery
Built-in battery specifications	7AH*6
External battery DC voltage	----
Backup time	> 13 minutes

Length × Width × Height (mm)	440160310
Reference weight	27.5KG

Operating environment	0 - 40 °C
Operating relative humidity	20 - 90% (no condensation)

3KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm²
Input neutral conductor size	4mm²
Input earth conductor size	4mm²
Input breaker	16A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm²
Output neutral conductor size	4mm²
Output earth conductor size	4mm²
Output breaker	16A -2P
Battery specifications
External battery breaker	63A-2P
External battery cable size	4mm²
