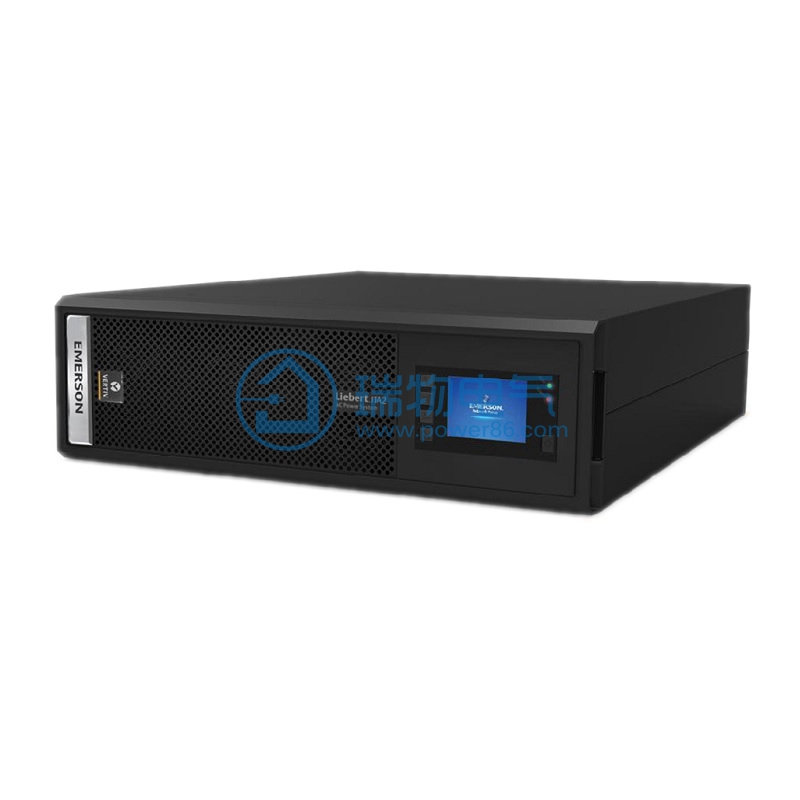

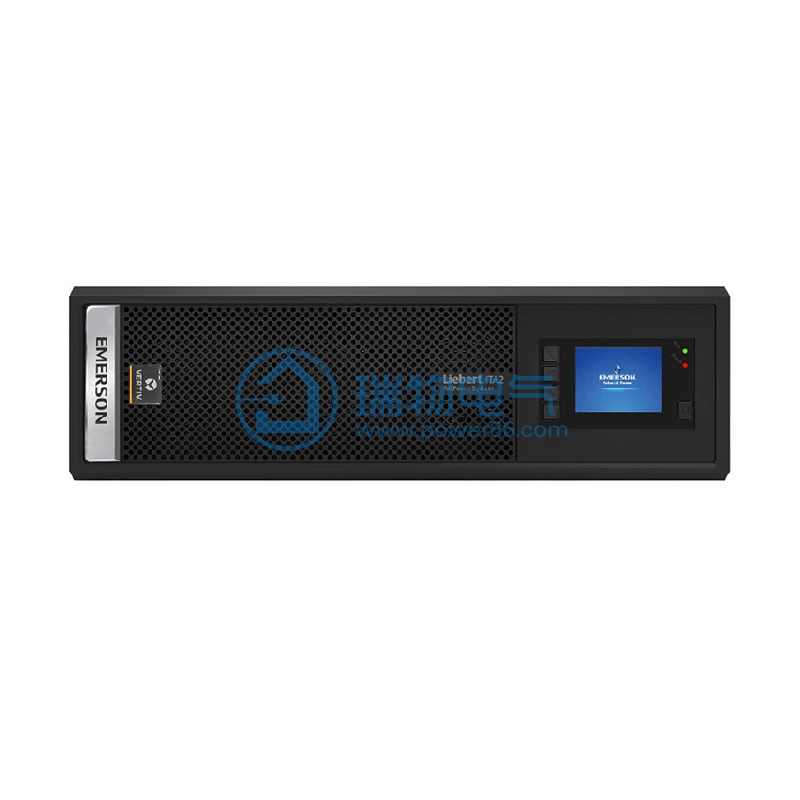

Emerson ITA-20k00AE3A02C00

Detailed specifications:

Emerson ITA-20k00AE3A02C00 detailed parameter table

Capacity	20KVA
Model	Emerson ITA-20k00AE3A02C00

Emerson ITA-20k00AE3A02C00 input parameters

input and output system	Three-in, single-out, three-in, three-out
Main Side Grid Adaptability	Compatible with main side same source and main side different source
Input voltage range	100~288Vac
Input frequency range	40Hz~70Hz
Input current harmonic content	＜5%
Input power factor	0.99

Emerson ITA-20k00AE3A02C00 output parameters

Rated power	20KW
Rated voltage	220/230/240 Vac
output power factor	1
Output voltage stability	1%
Output frequency stability	±0.1Hz
Output voltage waveform distortion rate	Resistive load: 2%; Rectifying load: 4%
Maximum load crest factor	3:1
Dynamic Voltage Transient Range	5%
Voltage transient recovery time	60ms
Overload capacity (% rated load)	105~125 loading, 5min;125~150 loading, 1min;>150 loading, 200ms

Emerson ITA-20k00AE3A02C00 Battery

Compatible battery types (external)	lead acid, lithium, nickel cadmium
Charger	5A
Number of battery cells	12/16/20 sections can be set, default 16 sections

Emerson ITA-20k00AE3A02C00 System Parameters and Standards

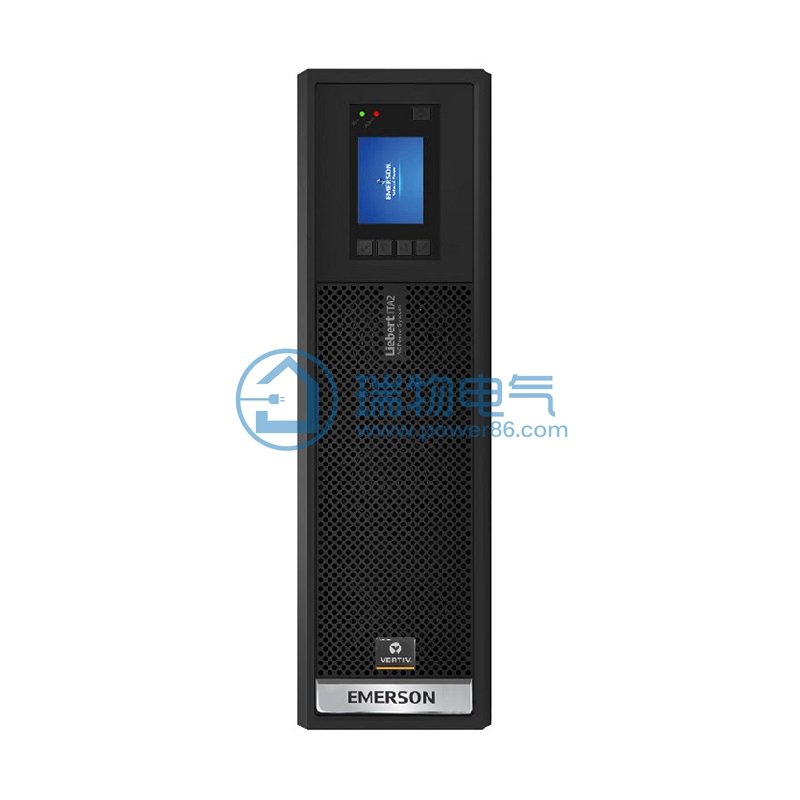

Mounting	Tower, Rack Compatible
Overall efficiency	Up to 96%
Number of parallel machines	Maximum 4 units
Switching time (main road to battery)	0ms
Switching time (inverter to bypass)	0ms
Noise	58dB
IP rating	IP20

Emerson ITA-20k00AE3A02C00 Physical Indicators

Volume (mm)	430*130*500
Weight	23KG

Emerson ITA-20k00AE3A02C00 Communications and Management

Communication Interface Type	Built-in network port, USB, RS232, RJ45, dry contact, REPO, communication card box, parallel port
Battery temperature sensing	Optional
LCD screen	2.8inch color screen, gravity adaptive, boot guide

Emerson ITA-20k00AE3A02C00 environmental parameters

Operating temperature	0~50 degrees, 50 degrees output power derating to 70%
Humidity	0~95%
Maximum altitude	3000m without derating
Certification, testing	CE, Energy Star, Theil, energy saving certification, earthquake resistance, shipping; Rohs,Reach; wet dust test, fire test, limit test, high altitude test, vehicle test

Emerson ITA-20k00AE3A02C00 Warranty

Standard warranty

Repair or replacement within 1 year

20KVA input AC 380V: output AC 220V

Input parameter
Input voltage	380V AC
Input live conductor size	4mm2
Input neutral conductor size	10mm2
Input earth conductor size	4mm2
Input breaker	50A -3P
Output parameter
Output voltage	380V AC
Output conductor size	4mm2
Output neutral conductor size	10mm2
Output earth conductor size	4mm2
Output breaker	50A -3P
Battery specifications
External battery breaker	125A-3P
External battery cable size	4mm2

20KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	4mm2
Input neutral conductor size	10mm2
Input earth conductor size	4mm2
Input breaker	50A -3P
Output parameter
Output voltage	380V AC
Output conductor size	4mm2
Output neutral conductor size	10mm2
Output earth conductor size	4mm2
Output breaker	50A -3P
Battery specifications
External battery breaker	125A-3P
External battery cable size	4mm2
