APC

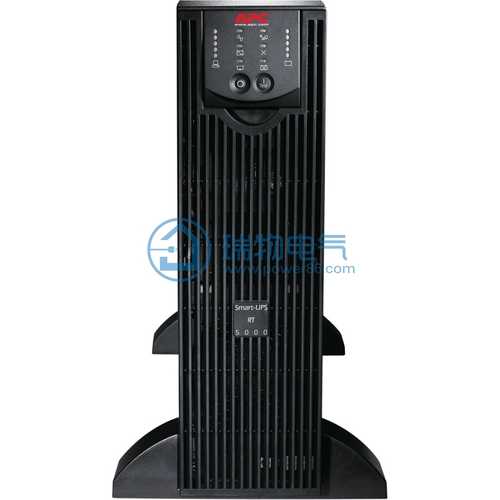

APC SURT5000UXICH

Single-in, single-out online high-frequency 5K long machine can issue VAT invoices by postage in most areas.

¥12,040.95

Rated power: 3.5KW (kW)
Rated capacity: 5KVA (KVA)
Input / output: Single in and single out (220V:220V)
External battery voltage: (long machine) 192V (DC)
Blocks per string: 16 pieces
Net weight: 36.36kg (kg)
Gross weight: 39.99kg (kg)
Dimensions (L×W×H): 440*130*698mm (mm) U

Ratings

2KVA (standard)2KVA 1KVA (standard)1KVA 10KVA 10KVA (standard)3KVA (standard)3KVA 3KVA (standard)5KVA

UPS runtime configurations

30 minutes 1 hour 2 hours 4 hours 8 hours

Get a quote 400-6611-323

View on mobile

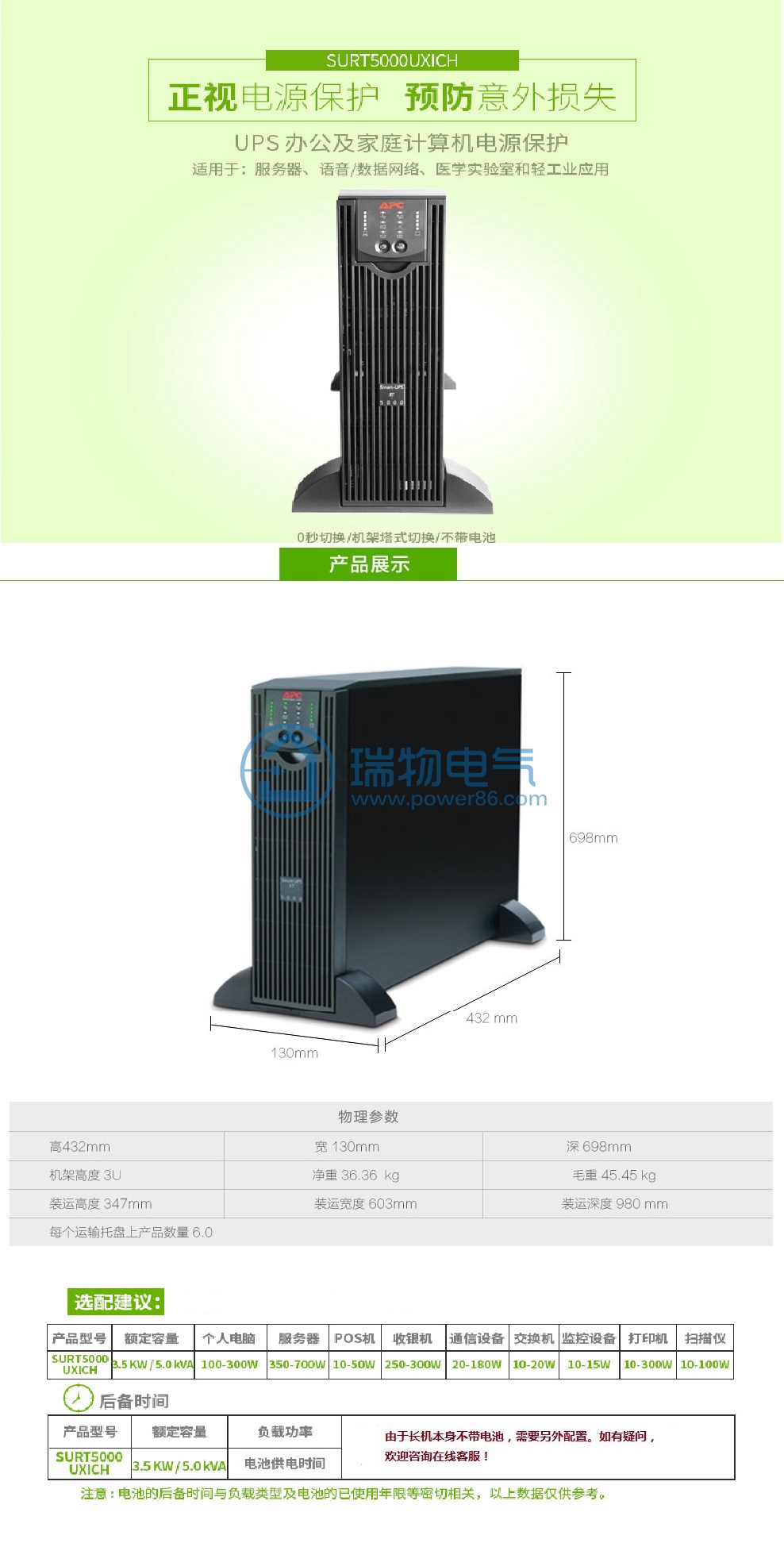

Product introduction https://img.rwyun.com/power86/rs1/ups/14/132/77/77_c0.jpg

Detailed specifications:

SURT5000UXICH output

Output power Capacity	3500 Wattage/5000 VA
Maximum Configurable Power	3500 Wattage/5000 VA
Rated output voltage	230V
Adjustable range of output voltage	Can be set to 220, 230 or 240 output voltage
Full load efficiency	92.0%
Output voltage distortion	Less than 3%
Output frequency (synchronized with main frequency)	50/60Hz /- 3 Hz user adjustable/- 0.1
Other output voltages	220,240
crest factor	3 : 1
Topology	double conversion online
Waveform Type	Sine wave
Output Connections	(8) IEC 320 C13
(2) IEC 320 C19
(4) IEC Jumpers
Bypass	Built-in bypass

SURT5000UXICH input

Rated input voltage

230V

Input frequency

50/60Hz /- 5 Hz (automatic adaptation)

Input terminal type

Hard Wire 3-wire

Operating voltage range 160 - 280V Adjustable input voltage range 100 - 280V Other input voltages 220,240

SURT5000UXICH Communications and Management

Interface Port	DB-9 RS-232, smart slot
Number of smart slots available	1
Control Panel	LED status display with load and battery bar graph and "online", "battery on", "replace battery", "overload" and "bypass" indicators.
Emergency Shutdown	Yes
audible alarm	Alarm when mains power failure: special low battery alarm overload continuous tone alarm

SURT5000UXICH battery and runtime

Battery Model

No internal battery-using external battery system

Empty battery slot

Runtime Chart

Curve	Part Number(s)
A	SURT5000UXICH + (1)SURT192XLBP
B	SURT5000UXICH + (2)SURT192XLBP
C	SURT5000UXICH + (3)SURT192XLBP
D	SURT5000UXICH + (1)SUBP16-2
E	SURT5000UXICH + (4)SURT192XLBP

Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output.

SURT5000UXICH surge protection and filtering

Surge suppression energy	420 Joule
Filter	Multi-stage noise filter, according to UL1449 standard

SURT5000UXICH physical indicators

High	432.00 mm
Wide	130.00 mm
deep	698.00 mm
Equipment installation effective height	3U
Net weight	36.36 KG
Transport weight	45.45 KG
Transportation height	347.00 mm
Transport width	603.00 mm
Transport length	980.00 mm
Colour	Black
Quantity of products on each transport pallet	6.00

SURT5000UXICH environment

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-15 - 45 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Online running heat dissipation	1040.00 BTU/hr
Audible noise 1 m from equipment surface	55.00 dBA

SURT5000UXICH compliance

Management body certification	C- Tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE
Compliance with environmental requirements	RoHS 7b Exemption, China RoHS
Standard warranty	Repair or replacement within 2 years, field service available, extended internal authorization optional

5KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm²
Input neutral conductor size	4mm²
Input earth conductor size	4mm²
Input breaker	32A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm²
Output neutral conductor size	4mm²
Output earth conductor size	4mm²
Output breaker	32A -2P
Battery specifications
External battery breaker	75A-2P
External battery cable size	6mm²
