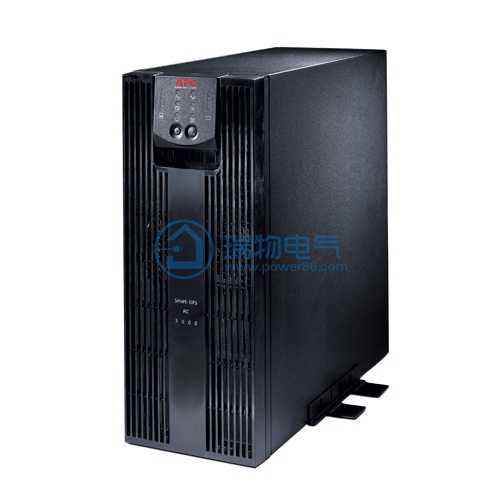

APC SRC3000UXICH

Single-in and single-out 3K long machines include tax in most areas

¥6,110.98

Rated power: 2.1KW (kW)
Rated capacity: 3KVA (kVA)
Input / output: Single in and single out (220V:220V)
External battery voltage: (long machine) 96V (DC)
Blocks per string: 8 pieces
Net weight: 15.00kg (kg)
Gross weight: 0kg (kg)
Dimensions (L×W×H): 175*432*457mm (mm) U

Ratings

2KVA (standard)2KVA 1KVA (standard)1KVA 10KVA 10KVA (standard)3KVA (standard)3KVA 3KVA (standard)5KVA

UPS runtime configurations

30 minutes 1 hour 2 hours 4 hours 8 hours

Get a quote 400-6611-323

View on mobile

Detailed specifications:

APC SRC3000UXICH output

Output power Capacity

2100 Wattage/3000 VA

Maximum Configurable Power

2100 Wattage/3000 VA

Rated output voltage

230V

Adjustable range of output voltage

Configurable for 220 or 230V rated output voltage

Full load efficiency

89.0%

Output voltage distortion

Less than 3%

Output frequency (synchronized with main frequency)

50/60Hz /- 3 Hz user adjustable/- 0.1

Other output voltages

220,240

crest factor

3 : 1

Topology

double conversion online

Waveform Type

Sine wave

Output Connections

(4) Chinese outlet

(1) Hard Wire 3-wire (H N + G)

Bypass

Built-in bypass

APC SRC3000UXICH Input

Rated input voltage

220V

Input frequency

45 - 65 Hz (automatic adaptation)

Input terminal type

Hard Wire 3 wire (1PH+N+G)

Input line length

2.44 meters

Operating voltage range

160 - 280V

Adjustable Input Voltage Range

100 - 280V

Other input voltages

230,240

APC SRC3000UXICH Communications and Management

Interface Port	DB-9 RS-232,SmartSlot slot
Number of smart slots available	1
Control Panel	LED status display with load and battery bar graph and "online", "battery on", "replace battery", "overload" and "bypass" indicators.
Emergency Shutdown	Optional
audible alarm	Alarm when mains power failure: special low battery alarm overload continuous tone alarm

APC SRC3000UXICH Battery and Runtime

Battery Model

No internal battery-using external battery system

Empty battery slot

Runtime Chart

Curve	Part Number(s)
A	SRC3000UXICH + (1)SRC96XLBP2S
B	SRC3000UXICH + (1)SRC96XLBP
C	SRC3000UXICH + (2)SRC96XLBP
D	SRC3000UXICH + (1)SUBP8-3
E	SRC3000UXICH + (1)SUBP8-4

Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output.

APC SRC3000UXICH Surge Protection and Filtering

Surge suppression energy	420 Joule
Filter	Multi-stage noise filter, according to UL1449 standard

APC SRC3000UXICH Physical Indicators

High	175.00 mm
Wide	432.00 mm
deep	457.00 mm
Equipment installation effective height	4U
Net weight	15.00 KG
Transport weight	18.70 KG
Transportation height	337.00 mm
Transport width	622.00 mm
Transport length	597.00 mm
Colour	Black
Quantity of products on each transport pallet	12.00

APC SRC3000UXICH Environment

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-20 - 50 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Online running heat dissipation	652.00 BTU/hr
Audible noise 1 m from equipment surface	45.00 dBA

APC SRC3000UXICH compliance

Management body certification	EN 60950,EN/IEC 62040-2
Compliance with environmental requirements	RoHS 7b Exemption, China RoHS,REACH: SVHC not included
Standard warranty	Repair or replacement within 2 years, field service available, extended internal authorization optional

3KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm²
Input neutral conductor size	4mm²
Input earth conductor size	4mm²
Input breaker	16A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm²
Output neutral conductor size	4mm²
Output earth conductor size	4mm²
Output breaker	16A -2P
Battery specifications
External battery breaker	63A-2P
External battery cable size	4mm²
